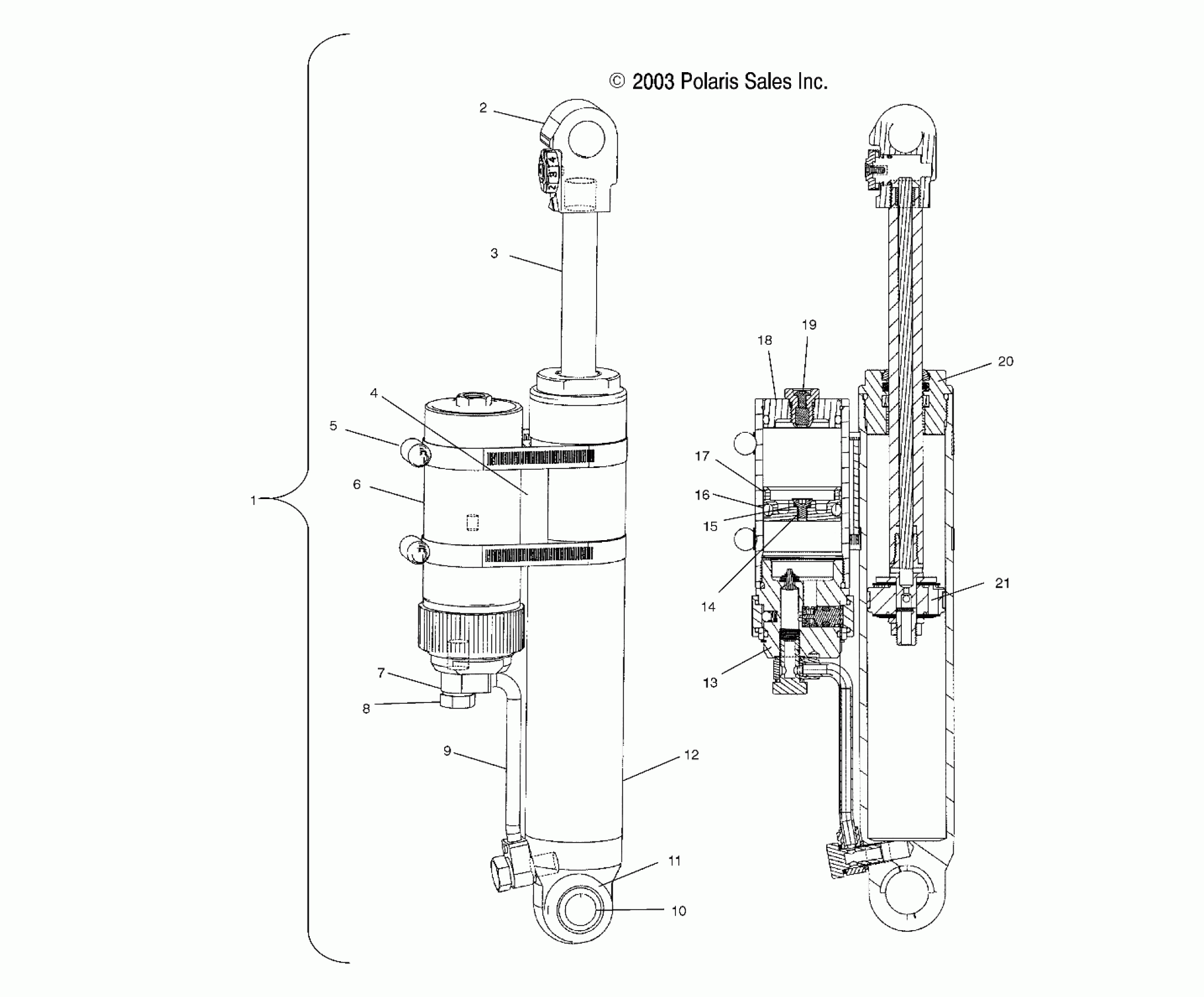

Polaris 600/700/800 RMK F/O - S04NK6ES SHOCK (REAR TRACK) - S04NK6ES/A/B/C-S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839C11) Diagram

#

Description
Price

1

Shock, Rear Track

7042145

Unavailable

2

Asm., Mount, Upper

1700195

$164.99

3

Shaft

1700196

Unavailable

4

Isolator

1700162

Unavailable

5

Clamp, Hose

1700197

$21.19

6

Body, Reservoir

1700198

$58.39

7

Washer, Copper

1700201

Unavailable

8

Bolt, Banjo

1700200

Unavailable

9

Hose, Pressure

1700202

$78.39

10

Sleeve

1700069

$15.99

11

Bushing

1700073

$11.99

12

Body

1700199

$142.84

13

Asm., Valve Body

1700205

$112.37

14

IFP, Screw, Bleed

1700054

$6.19

15

Screw, Bleed, O-Ring

1700016

$7.99

16

O-Ring, IFP

1700204

Unavailable

17

IFP

1700203

$45.59

18

End Cap, Reservoir w/Valve

1700164

$59.03

18

Cap, End, Reservoir

1700217

$29.99

19

Valve, Pressure w/Screw

1700218

$37.62

19

Adapter, Male

1700065

$27.83

20

O-Ring, Cylinder Head

1700051

Unavailable

20

Scraper, Rod

1700019

$27.79

20

O-Ring, Cylinder Head

1700046

Unavailable

20

Seal, Rod

1700020

$27.79

20

Asm., Cylinder Head

1700206

$216.17

21

Washer, Back Up

1700078

$9.59

21

Band, Wear, Piston

1700031

$28.32

21

Washer, Top Out

1700077

$10.39

21

Piston, High Flow

1700207

$31.90
