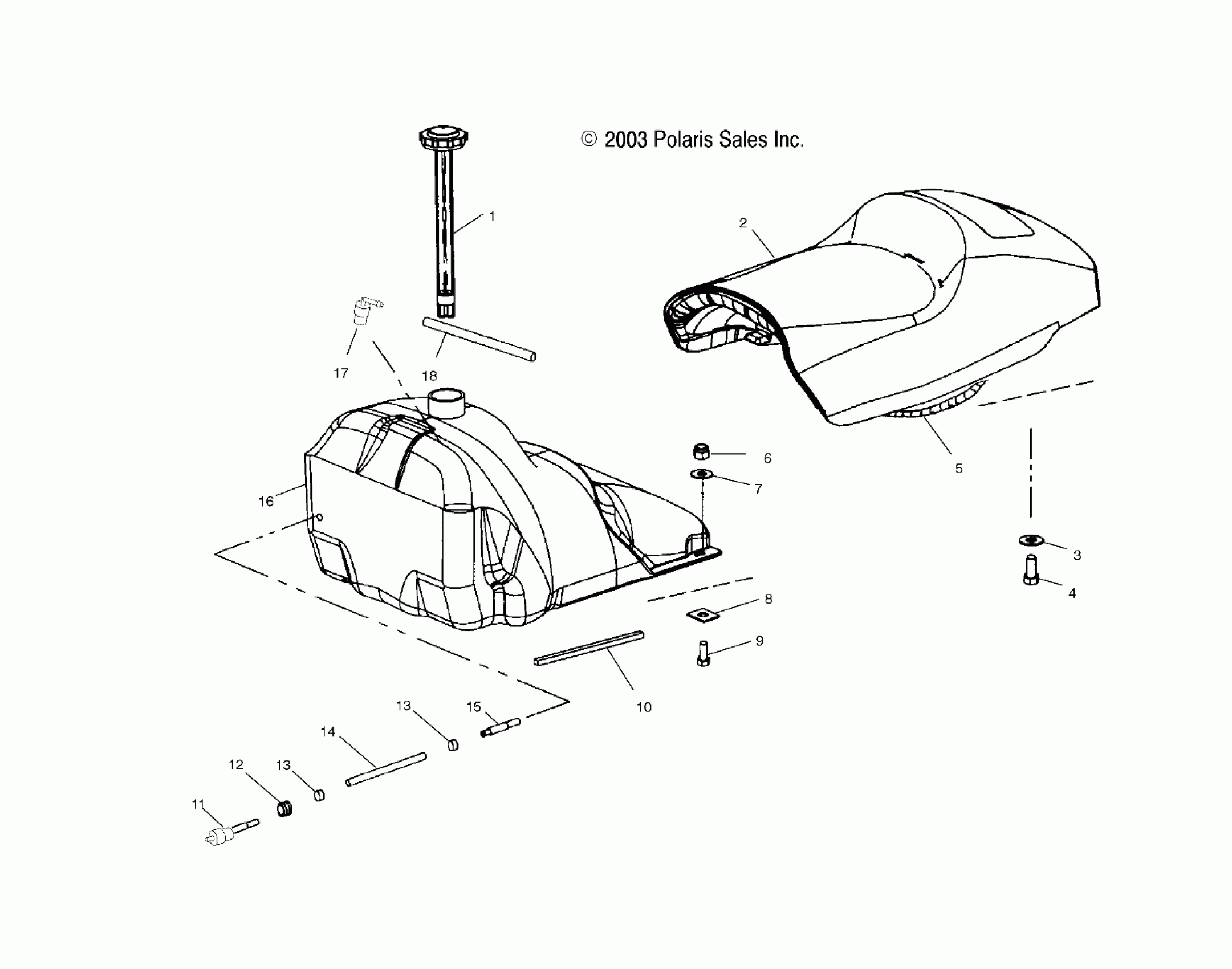

Polaris 600/700/800 RMK F/O - S04NK6ES SEAT and GAS TANK - S04NK6ES/A/B/C-S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839A05) Diagram

#

Description
Price

1

Cap w/Gauge, Fuel

2520323

Unavailable

2

Asm., Seat, Edge, RMK [Incl. 2,5][SL/R][Std]

2683264

Unavailable

2

Asm., Seat Cover, Edge, RMK

2683265

$344.99

2

Asm., Seat, RMK, Vert. Esc [Incl. 2,5][SL/R]

2683270

Unavailable

2

Asm., Seat Cover, RMK, Vert. Esc.

2683271

Unavailable

2

Asm., Seat, Edge, RMK [Incl. 2,5][SL/YL][Std]

2683272

$579.99

2

Asm., Seat, Cover, Edge RMK

2683273

$344.99

2

Asm., Seat, RMK, Vert. Esc. [Incl. 2,5][SL/YL]

2683274

Unavailable

2

Asm., Seat Cover, RMK, Vert. Esc. [SL/YL]

2683275

Unavailable

3

Washer, Flat

7558301

$1.49

4

SCREW

7517219

$4.79

5

Harness, Taillight, Seat

2461064

$59.03

6

Nut, Nylok

7542122

$1.49

7

WASHER, FLAT

7555960

$3.99

8

Nut, Speed

7670021

$6.99

9

BOLT, CARRIAGE

7512193

$2.39

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

Fitting

7052269

$24.99

12

Grommet

5432981

$6.94

13

RING, COMPRESSION

7080768

$4.84

13

RING, COMPRESSION

7080768

$4.84

14

Line, Fuel

8350020-600

Unavailable

15

Pickup w/Mesh, Fuel

7052215

$49.99

16

Asm., Fuel Tank

2520262

$239.99

17

Fitting, 90 Degree

7052095

$4.79

18

LINE, FUEL

8450061-600

Unavailable
