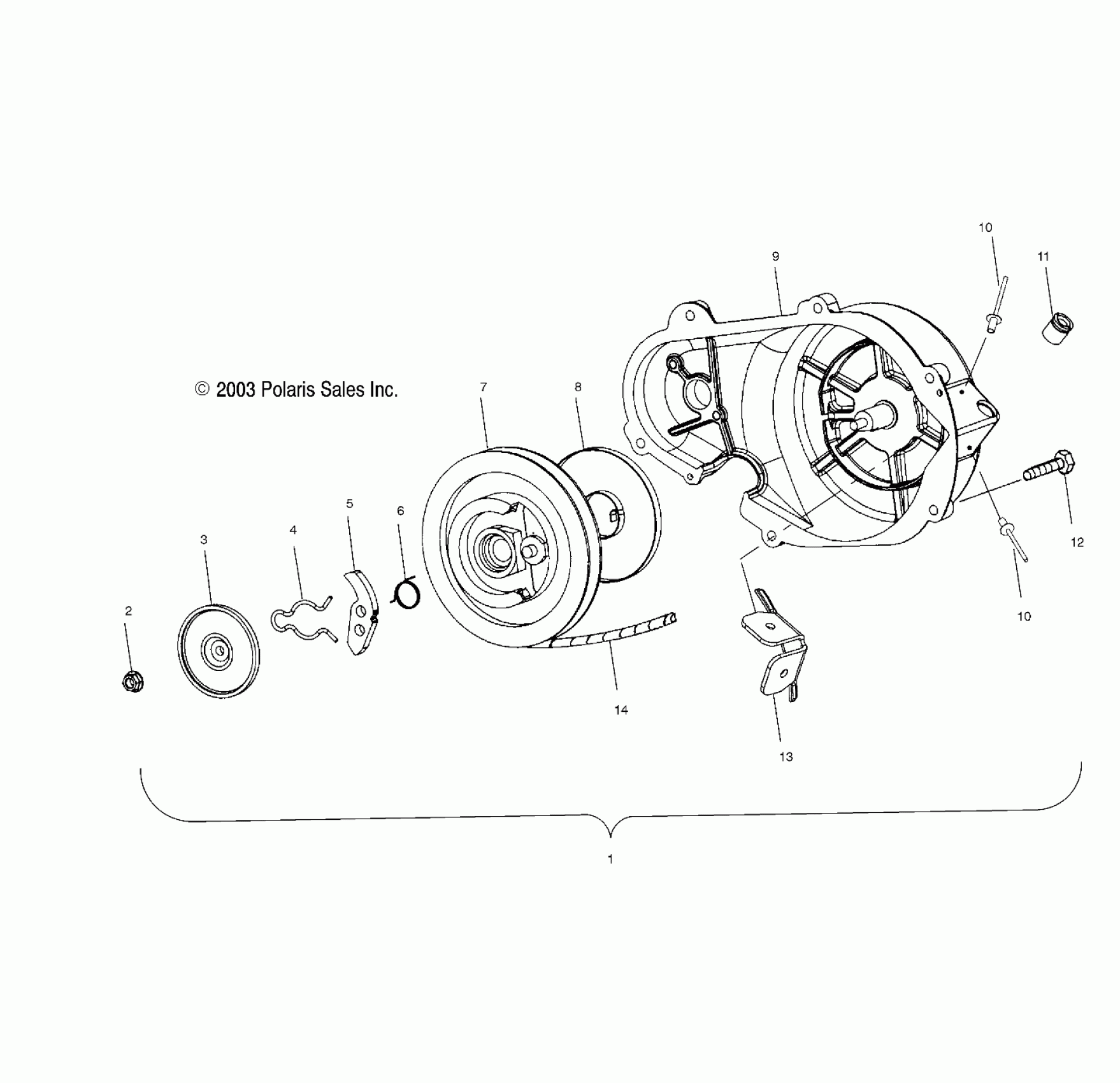

Polaris 600/700/800 RMK F/O - S04NK6ES RECOIL STARTER (700/800) - S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839D14) Diagram

#

Description
Price

1

Asm., Recoil E/R, Shield [Incl. 2-11,14 & Starting Pulley]

1202408

Unavailable

2

Nut, Fastening

3040163

Unavailable

3

Plate, Friction

3040164

Unavailable

4

Spring, Friction

3040167

Unavailable

5

Ratchet, Pawl, Electric Reverse

5246108

$24.27

6

Spring, Return

3040166

Unavailable

7

Reel

3040168

$44.51

8

Spring, Spiral

3040170

Unavailable

9

Housing, Recoil

3040160

Unavailable

10

Rivet

7661148

$1.27

10

Rivet

7661148

$1.27

11

BUSHING,ROPE SLIDE

3040171

$3.48

12

Screw

7516823

$3.19

13

Shield, Recoil Rope

5246218

$19.83

14

ROPE, STARTER

3040169

$24.27
