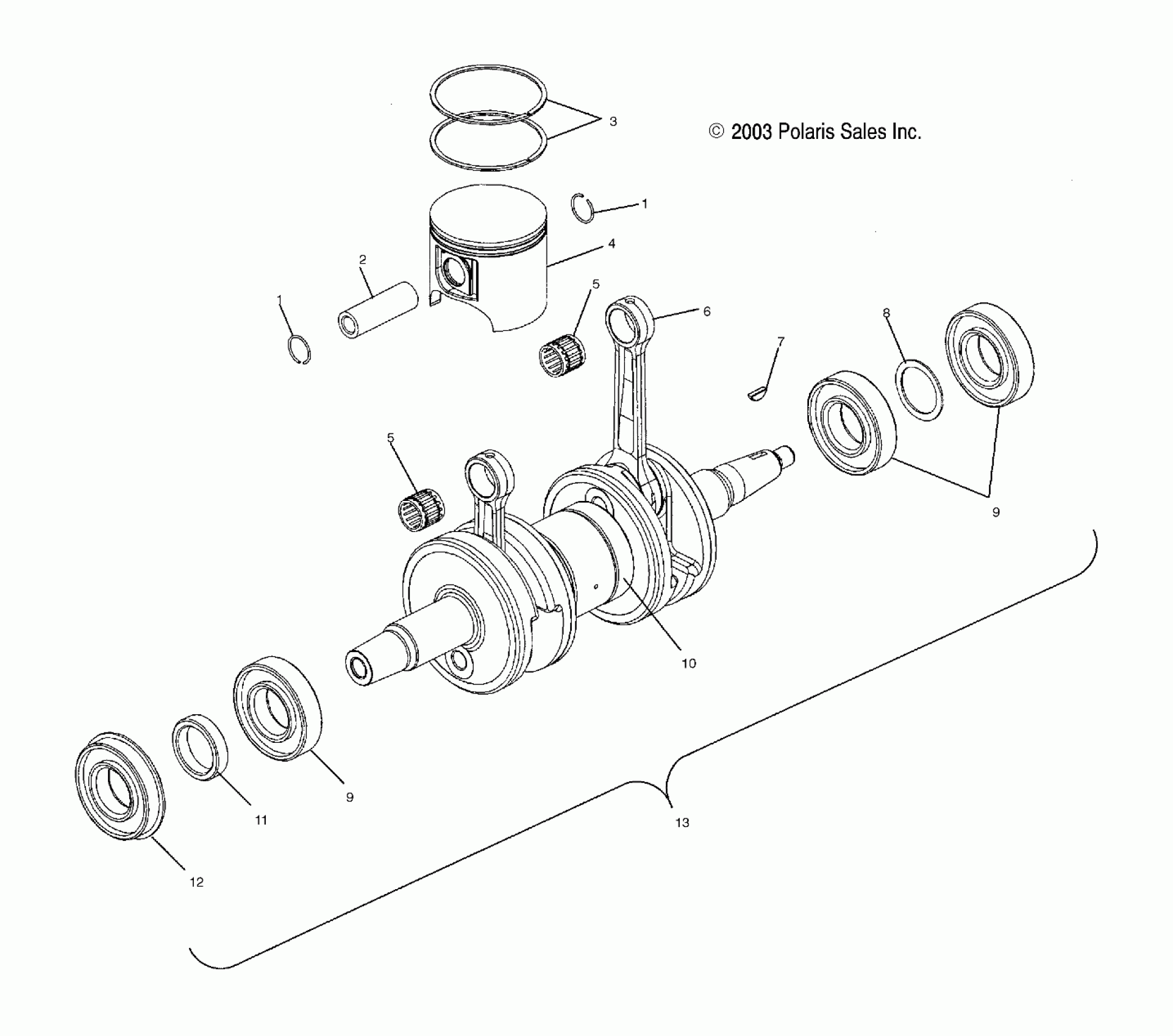

Polaris 600/700/800 RMK F/O - S04NK6ES PISTON and CRANKSHAFT (700/800) - S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839D09) Diagram

#

Description
Price

1

Circlip, Piston [700]

3022950

Unavailable

1

Circlip, Piston [800]

3021179

$8.79

1

Circlip, Piston [700]

3022950

Unavailable

1

Circlip, Piston [800]

3021179

$8.79

2

PIN, PISTON

-------

Unavailable

3

Kit, Piston Rings [700]

2200895

$66.65

3

Kit, Piston Rings [800]

2201631

Unavailable

4

Kit, Asm., Piston [Incl. 1,2,3] [800]

2202337

$199.98

4

Kit, Asm., Piston [Incl. 1,2,3] [700]

2202237

$264.99

5

Bearing [800]

3514357

$23.99

5

Bearing [700]

3584001

Unavailable

5

Bearing [800]

3514357

$23.99

5

Bearing [700]

3584001

Unavailable

6

Kit, Connecting Rod [700] [Incl. Rod, Pin, Bearing, Washers]

2201953

$307.99

6

Kit, Connecting Rod [800] [Incl. Rod, Pin, Bearing, Washers]

2201557

$307.99

7

KEY, WOODRUFF

7721117

$24.99

8

Bushing

7555905

$3.99

9

Bearing, Ball

3585503

$31.99

9

Bearing, Ball

3585503

$31.99

10

BEARING, BALL

3514318

$43.99

11

Spacer, Crankshaft

5131899

Unavailable

12

BEARING, BALL

3514310

$39.99

13

Kit, Crankshaft [Incl. 8-12] [700]

2201848

$1,196.99

13

Kit, Crankshaft [Incl. 8-12] [800]

2201842

Unavailable
