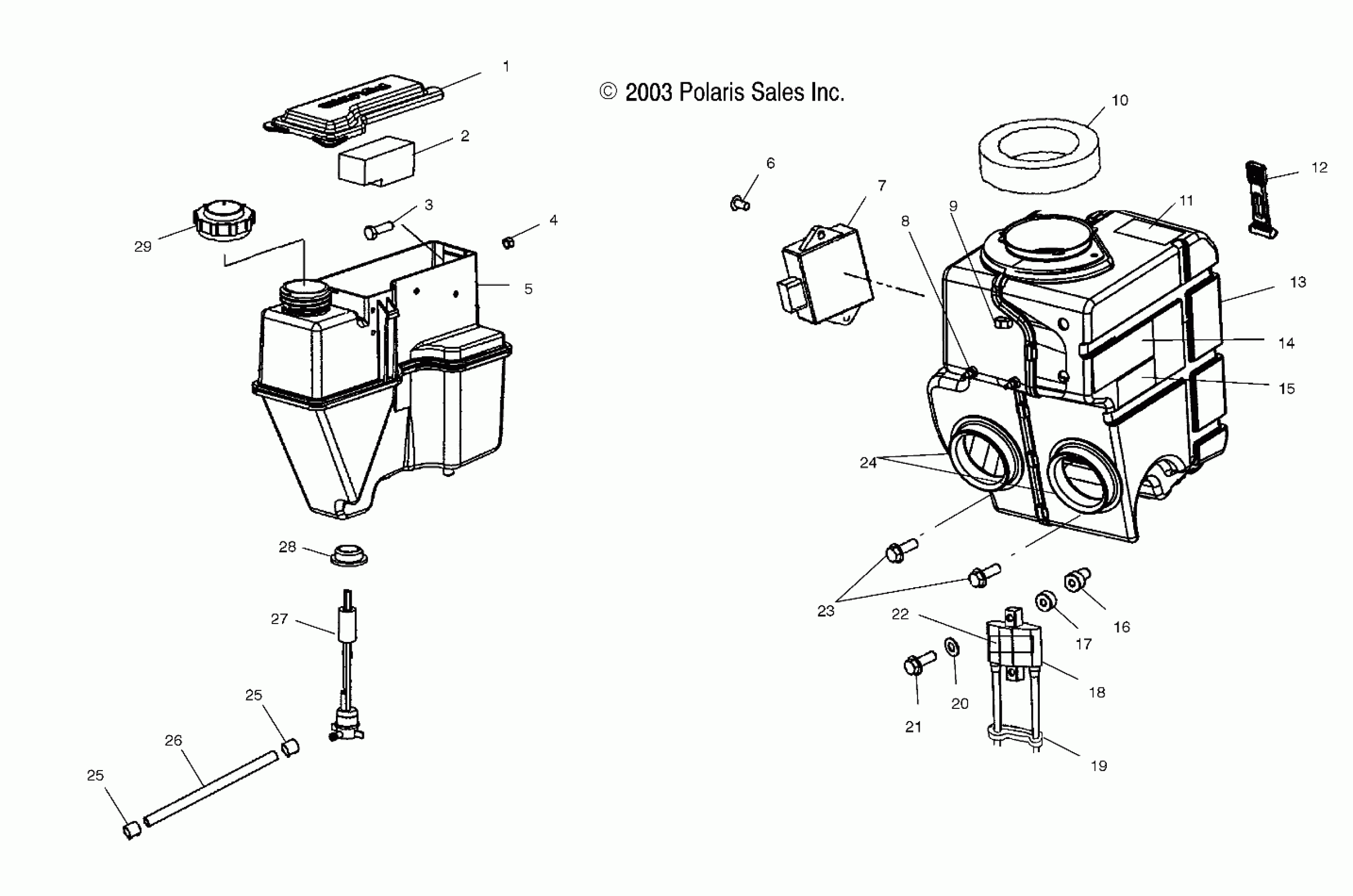

Polaris 600/700/800 RMK F/O - S04NK6ES OIL TANK/AIR BOX - S04NK6ES/A/B/C-S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839C05) Diagram

Cover, Tool Box

5434089

$27.19

Foam, Tool Box

5812209

Unavailable

Screw

7512297

$5.59

Nut, Nylok

7542122

$1.49

Asm., Oil Tank w/Sender [Incl. 1,27]

1253539

Unavailable

Oil Bottle/Tool Box

1261127

Unavailable

Screw

7512095

$4.79

KIT, CDI [SEE MAGNETO [600] PG. D4, REF. 10, AND MAGNETO [700][800] PG. D13, REF. 19]

-------

Unavailable

Fitting

7052127

$3.19

Clip, Silencer

7670102

$2.39

Foam, Air Box, Chimney

5811983

$20.22

Decal, Caution, Air Box

7075351

Unavailable

STRAP-AIRBOX TOP

5433150

$24.27

Asm., Air Silencer [Incl. 24 & Decals][600]

1253498

$155.56

Asm., Air Silencer [Incl. 24 & Decals][700][800]

1253501

Unavailable

Decal, Team E/R Belt Rem.

7171037

Unavailable

Decal, Greasing

7073426

$7.27

Nut, Well

7547103

$8.79

Washer, Nylon

7555932

$2.39

COIL, IGNITION [SEE MAGNETO [600] PG. D4, REF. 12, AND MAGNETO [700][800] PG.D13, REF. 17]

-------

Unavailable

Clip, Ignition Cable

7080471

$3.59

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

Screw

7517610

$1.59

Decal, Spark Plug

7077026

$2.95

Screw

7511862

$6.99

Boot, Carburetor [600]

5412169

Unavailable

Boot, Carburetor [700][800]

5412157

Unavailable

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

Line, Fuel

8450003-1525

Unavailable

Sender, Oil, w/Front Terminals

4010660

$60.70

Grommet, Oil Sender

7052305

$4.84

Cap, Oil, Vented

1240094

$36.41
