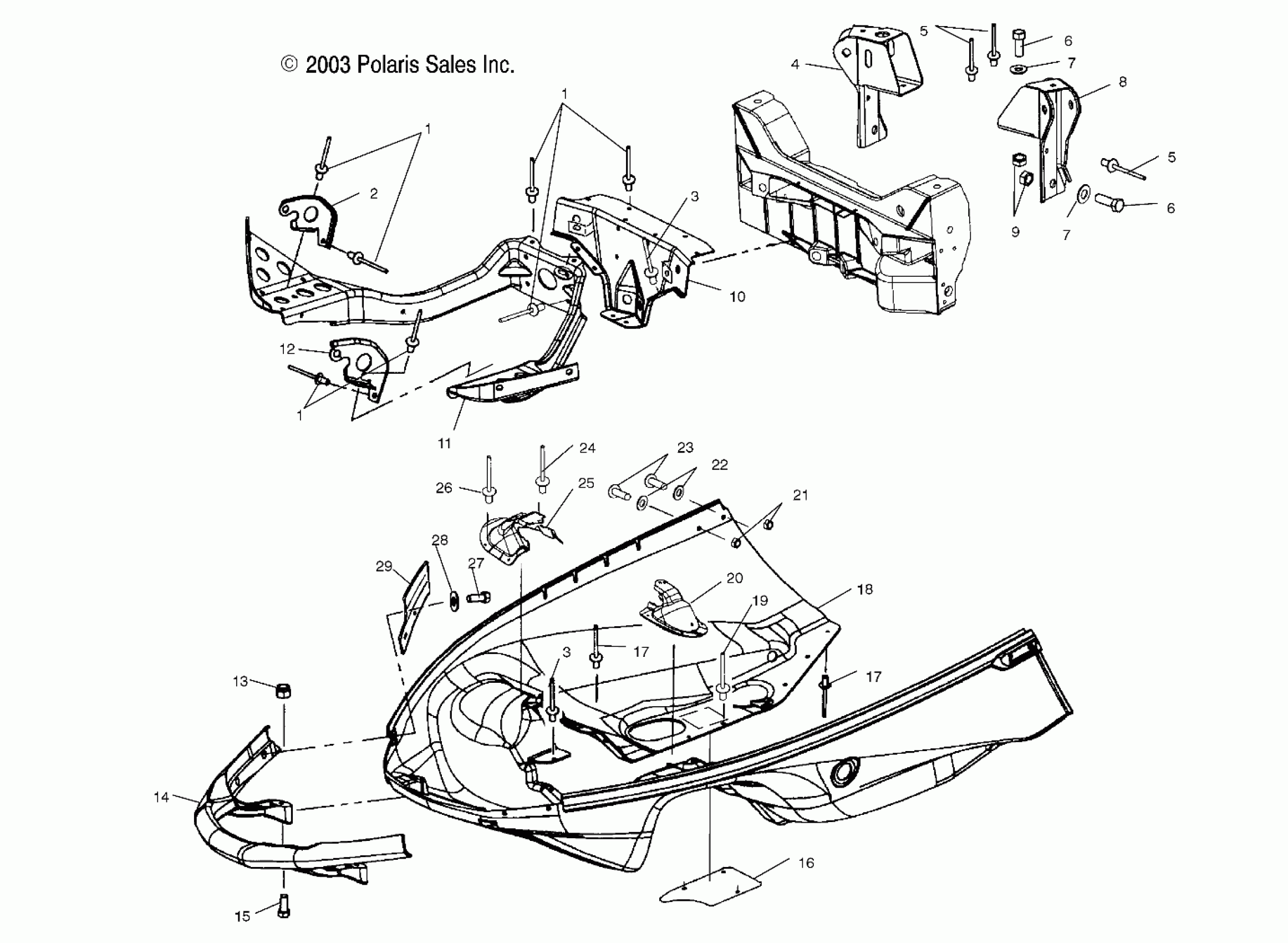

Polaris 600/700/800 RMK F/O - S04NK6ES NOSEPAN - S04NK6ES/A/B/C-S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839A06) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

RIVET

7621431

$1.49

3

RIVET

7621431

$1.49

4

Tower, Shock, RH

1821108-067

Unavailable

5

Rivet

7661130

$1.49

5

Rivet

7661130

$1.49

6

SCREW

7517935

$2.39

6

SCREW

7517935

$2.39

7

WASHER

7556153

$1.99

7

WASHER

7556153

$1.99

8

Tower, Shock, LH

1821107-067

$99.99

9

Nut, Flanged, Nylon

7547180

$2.39

10

Bracket, Support, Radius Rod

5244049-067

Unavailable

11

Brace, Pan, Lower

5244050

$137.60

12

Hinge, Pivot, Lower, LH

5243991-067

$104.99

13

NUT, FLANGED, NYLOK

7542153

$1.59

14

Asm., Bumper, Front, Scr. Yellow

5433518-216

$64.75

14

Asm., Bumper, Front, Indy Red

5433518-293

$64.75

15

Bolt

7512163

$3.99

16

Shield, Exhaust, Heat, Extended

5245853

$11.59

17

RIVET

7621467

$1.49

17

RIVET

7621467

$1.49

18

Nosepan, High Shocks, Black.

5434345-070

Unavailable

19

RIVET

7621472

$1.49

20

Cover, Shock Tower, LH

5434346

$39.99

21

Nut, Nylok

7542122

$1.49

22

WASHER

7555827

$3.99

23

Screw

7515166

$3.19

24

RIVET

7621418

$1.49

25

Cover, Shock Tower, RH

5434347

Unavailable

25

Foil, Shock Tower Cover

5812271

$4.95

26

RIVET

7621485

$1.49

27

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

28

WASHER, SPRING LOCK

7552801

$1.59

29

Guide, Hood, LH

5244888

Unavailable

29

Guide, Hood, RH

5244889

Unavailable
