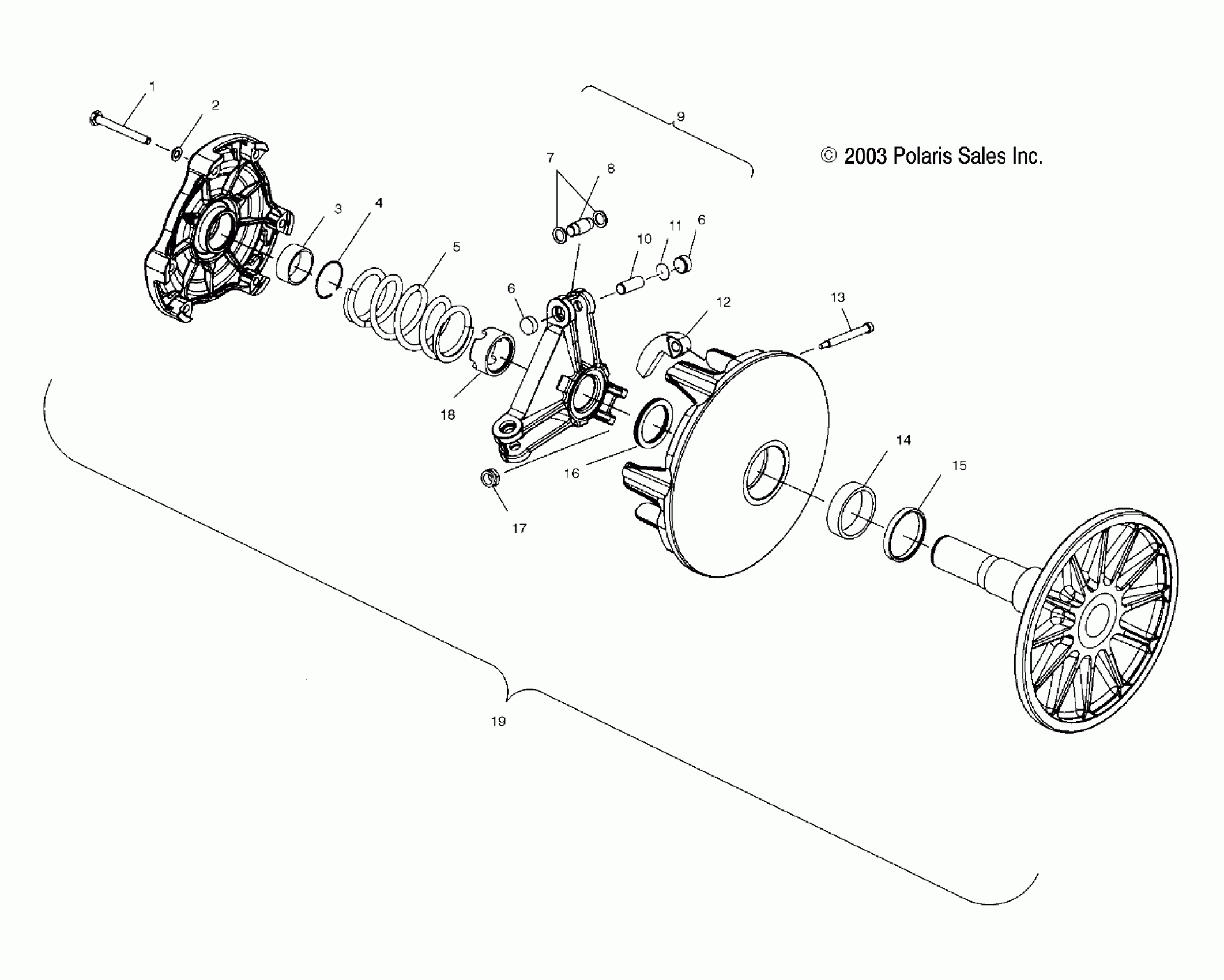

Polaris 600/700/800 RMK F/O - S04NK6ES DRIVE CLUTCH (MANUAL START MODELS) - S04NK6ES/A/B/C-S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839C02) Diagram

Bolt

7512265

$3.99

WASHER, SPRING LOCK

7552801

$1.59

Bearing, Cover [600][700]

3576516

$28.32

BEARING COVER GARMAX [800]

3514347

$36.41

RING-RETAINING,COVER

7710417

$1.49

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

Button, Guide [600][700]

5430445

$6.39

Button, Guide [800]

5434188

$12.79

Button, Guide [600][700]

5430445

$6.39

Button, Guide [800]

5434188

$12.79

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321622

$32.37

Kit Wide Roller Spider Rebuild (600)(700)[Incl. 6-8,10,11,13]

2201169

$169.98

Kit, Wide Roller Spider Rebuild (800)[Incl. 6-8,10,11,13]

2202376

$238.79

Pin, Roller [600][700]

5133079

$6.39

Pin, Roller [800]

5133054

Unavailable

Kit - Shim, Drive Clutch

2200387

$24.27

Asm., Weight/Bushing, 10-56 [700]

1321684

$59.99

Weight/Bushing (10-60) [800]

1321587

$40.46

Asm., Weight/Bushing, 10-54 [600]

1321685

$40.46

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

Bearing, Sleeve

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99

Spacer [.050]

5210754

Unavailable

Spacer [.025]

5242981

Unavailable

Spacer [.020]

5210752

Unavailable

Spacer [.032]

5210753

Unavailable

NUT, FLEXLOC

7541906

$3.19

NUT-JAM

5020425

$23.99

Asm., Drive Clutch, Basic 114 [Less 5,12][600][700]

1321928

$699.99

Asm., Drive Clutch, Basic 108 [Less 5,12][800]

1321880

Unavailable
