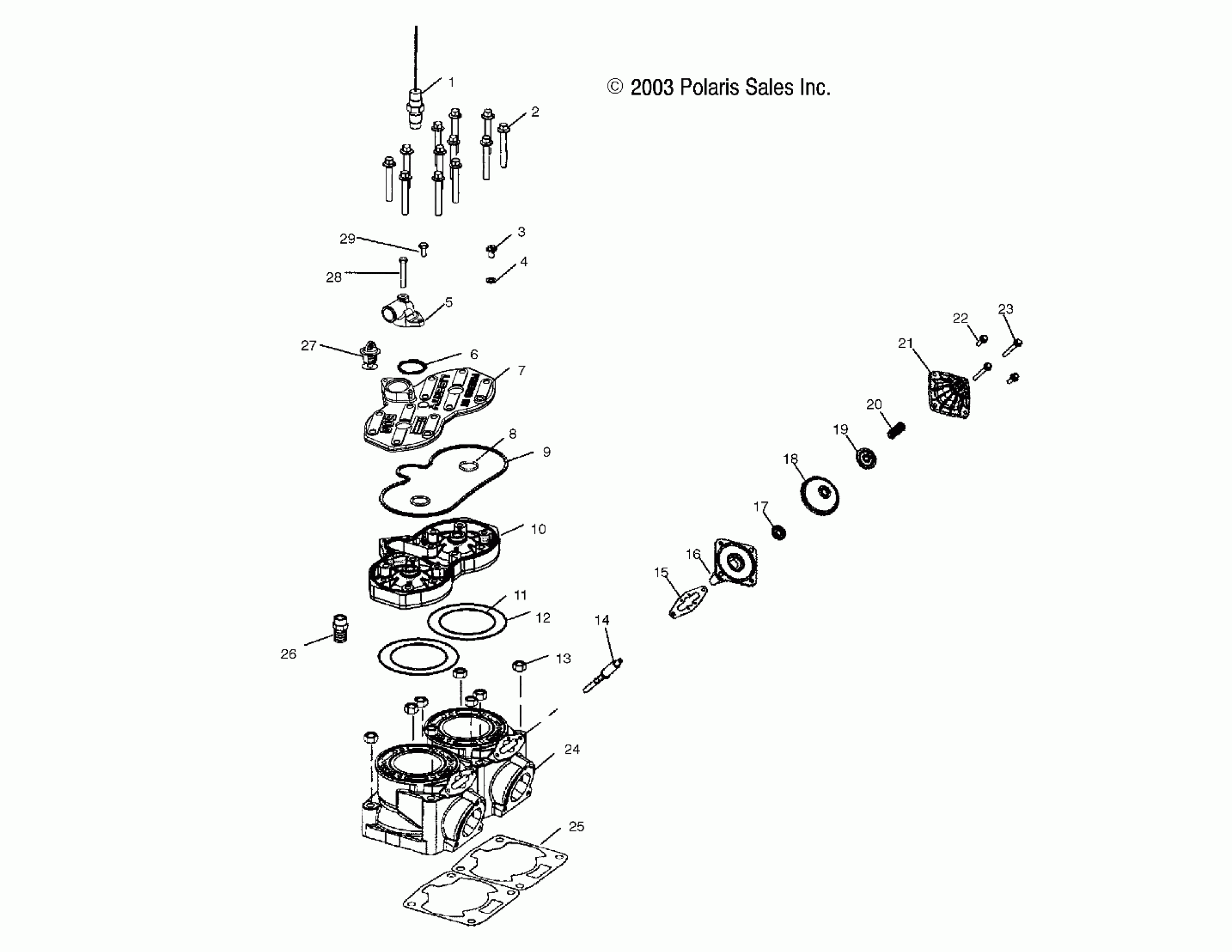

Polaris 600/700/800 RMK F/O - S04NK6ES CYLINDER (600) - S04NK6ES/A/B/C (4988398839C13) Diagram

#

Description
Price

1

Sensor, Temperature

4010398

$36.41

2

SCREW

7517533

$4.79

3

SCREW

7517679

$13.59

4

WASHER, FLAT

7555998

$1.49

5

Cover, Thermostat

5631391

Unavailable

6

O-Ring

5411521

$24.19

7

Cover, Head

5631425-366

Unavailable

8

O-RING

5411411

$1.49

9

Seal, Rubber Head Cover

5411465

$32.37

10

Head, Cylinder

3021322

Unavailable

11

O-RING

5410932

$20.22

12

O-RING

5411359

$15.99

13

NUT

7547013

$1.99

14

Valve, Guillotine

5133380

Unavailable

15

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

16

Asm., Base Exhaust Valve Dom.

1202216

Unavailable

17

Washer, Bellows, Exh. Valve, Dom.

5132950

Unavailable

18

Bellows

5412399

$44.51

19

Cap/Nut, Bellows, Exh. Valve Dom.

5631381

$33.87

20

Spring, Comp.

7041786-03

$29.99

21

Asm., Housing, w/Bushing

1202640

$15.99

22

SCREW

7516820

$5.59

23

SCREW

7517932

$3.99

24

Cylinder

3021333

$531.75

25

Gasket, Cylinder Base

5811916

$24.99

26

Fitting

7052234

$39.99

27

Thermostat

7052258

$48.56

28

Screw

7517950

$5.59

29

SCREW

7516822

$2.39
