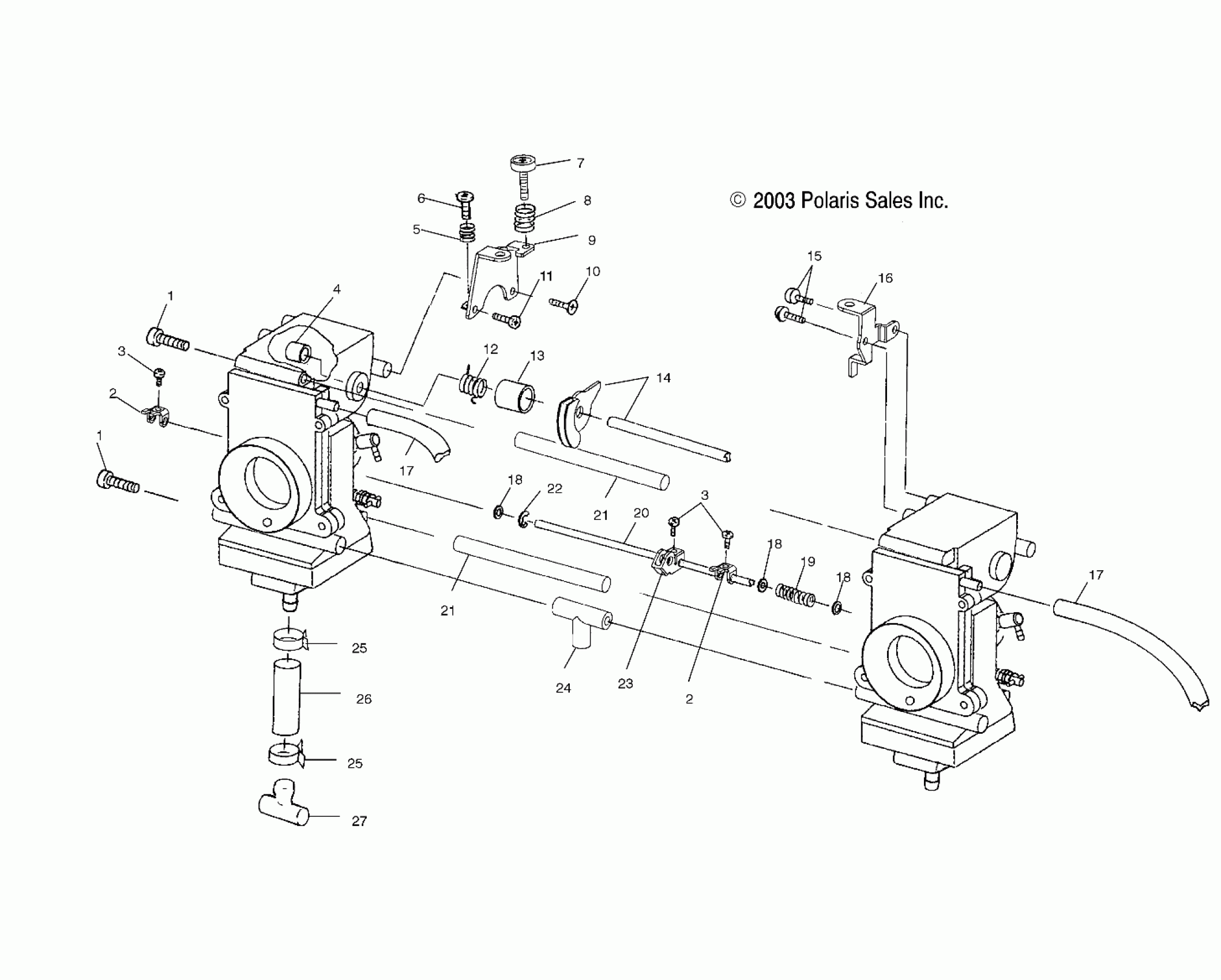

Polaris 600/700/800 RMK F/O - S04NK6ES CARBURETOR (600) - S04NK6ES/A/B/C (4988398839D02) Diagram

#

Description
Price

1

Bolt, Rack Style

3130834

$27.99

1

Bolt, Rack Style

3130834

$27.99

2

Lever, Starter

3130832

$24.27

2

Lever, Starter

3130832

$24.27

3

Screw, Starter

3130833

$3.99

3

Screw, Starter

3130833

$3.99

4

Ring

3140032

Unavailable

5

Spring

3130817

$6.46

6

Screw

3130816

$6.39

7

Adjuster

3131285

$24.27

8

Spring

3131284

$8.89

9

Bracket

3131380

$36.41

10

Screw

3130810

$3.19

11

Screw

3130809

$3.19

12

Spring

3130950

$36.41

13

Ring

3130853

$7.27

14

Asm., Shaft

3131370

$121.41

15

Screw

3130821

$7.19

16

Bracket

3130820

$40.46

17

Hose, Vent

3131137

Unavailable

17

Hose, Vent

3131137

Unavailable

18

Packing, Starter Shaft

3130842

$2.83

18

Packing, Starter Shaft

3130842

$2.83

18

Packing, Starter Shaft

3130842

$2.83

19

Spring, Starter Shaft

3130841

$7.27

20

Shaft

3130840

$28.32

21

Ring, Rack Style

3130852

$20.22

21

Ring, Rack Style

3130852

$20.22

22

E-Ring

3130839

$4.84

23

Lever, Starter

3130819

$32.37

24

Asm., Nipple

3131374

$36.41

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

26

Line, Fuel

8350017-600

Unavailable

27

Plug, Trap

5431893

$12.94
