Description

Price

1

Asm., Carburetor

1253491

$649.99

2

Screw

3130951

$3.99

2

Screw

3130951

$3.99

3

Cap, Top

3130872

Unavailable

4

Gasket

3130871

$20.22

5

Screw

3130844

$3.99

6

Washer, Packing

3130846

$4.79

6

Washer, Packing

3130846

$4.79

7

Clip

3130856

$8.79

7

Clip

3130856

$8.79

8

Ring

3130845

$8.89

8

Ring

3130845

$8.89

9

Plate

3130857

$7.27

9

Plate

3130857

$7.27

10

E-Ring

3130847

$8.89

10

E-Ring

3130847

$8.89

11

Cap, Rubber, Starter

3130831

$7.27

12

Holder, Guide, Starter

3130830

$32.37

13

Spring, Starter

3130829

$12.94

14

Asm., Plunger

3130828

$32.37

15

Valve, Piston, Notched [1.5]

3131216

Unavailable

16

Needle, Jet [9DGI01-60]

3131377

Unavailable

17

Packing

3130867

$5.65

18

E-Ring

3130868

$8.89

19

Plate

3130843

$8.89

20

Asm., Lever, LH

3130855

$64.75

20

Asm., Lever, RH

3130849

$64.75

21

Ring

3130848

$32.37

22

Screw, LH

3130854

$3.19

23

Screw, RH

3130850

$4.79

24

Screw, Air Funnel

3130825

$3.19

25

Asm., Funnel

3131335

$53.59

26

O-Ring, Air Funnel, Long

3131356

$16.17

27

Pin

3130808

Unavailable

28

Spring

3131371

Unavailable

29

Jet, Main [310]

3130134

$7.27

30

Washer

3131372

$5.59

31

O-Ring

3130522

$5.65

32

Screw, Air

3131336

Unavailable

33

Asm., Float

3130859

$94.99

34

Bolt, Drain

3131248

Unavailable

35

O-Ring, Screw, Drain

3130863

$2.41

36

Screw, Float Bowl

3130824

$3.19

37

Body, Float

3130858

$119.99

38

O-Ring, Float Bowl

3130861

$12.13

39

Screw, Valve Seat

3130860

$8.79

40

Jet, Pilot [45]

3130068

$8.89

41

Jet, Starter [140]

3130768

$8.89

42

Washer

3130837

$3.19

42

Washer

3130837

$3.19

43

SPRING

3130836

$7.27

44

Adjuster

3130987

$20.22

45

Cap

3130986

$9.70

46

Screw [MAG Side]

3131010

$4.79

47

Asm., Sensor, Throttle Position [MAG Side]

3131009

$259.03

48

CAP

3130479

$14.56

49

Packing

3130835

$2.41

50

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

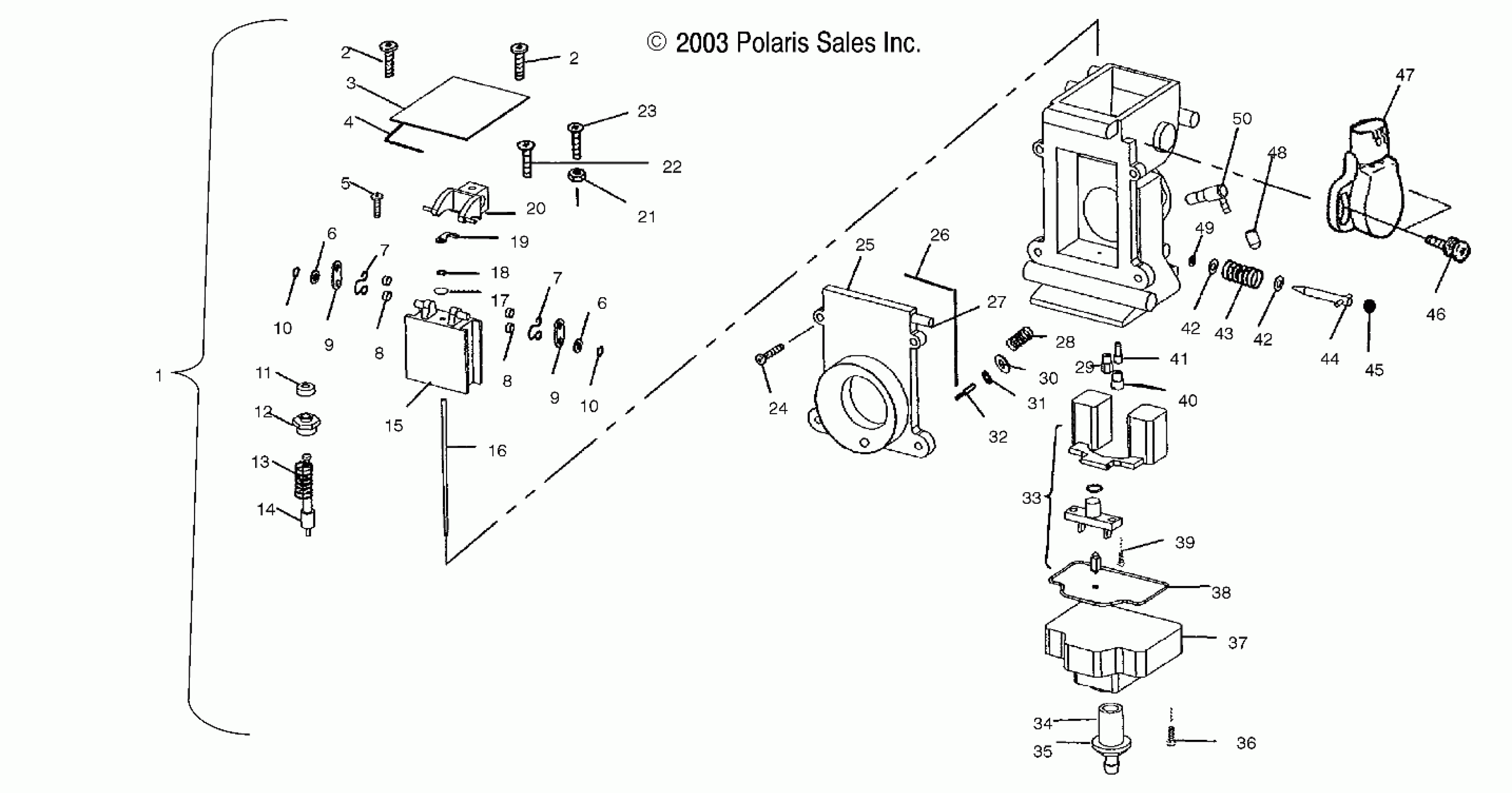

Polaris 600/700/800 RMK F/O - S04NK6ES CARBURETOR (600) - S04NK6ES/A/B/C (4988398839D01) Diagram
