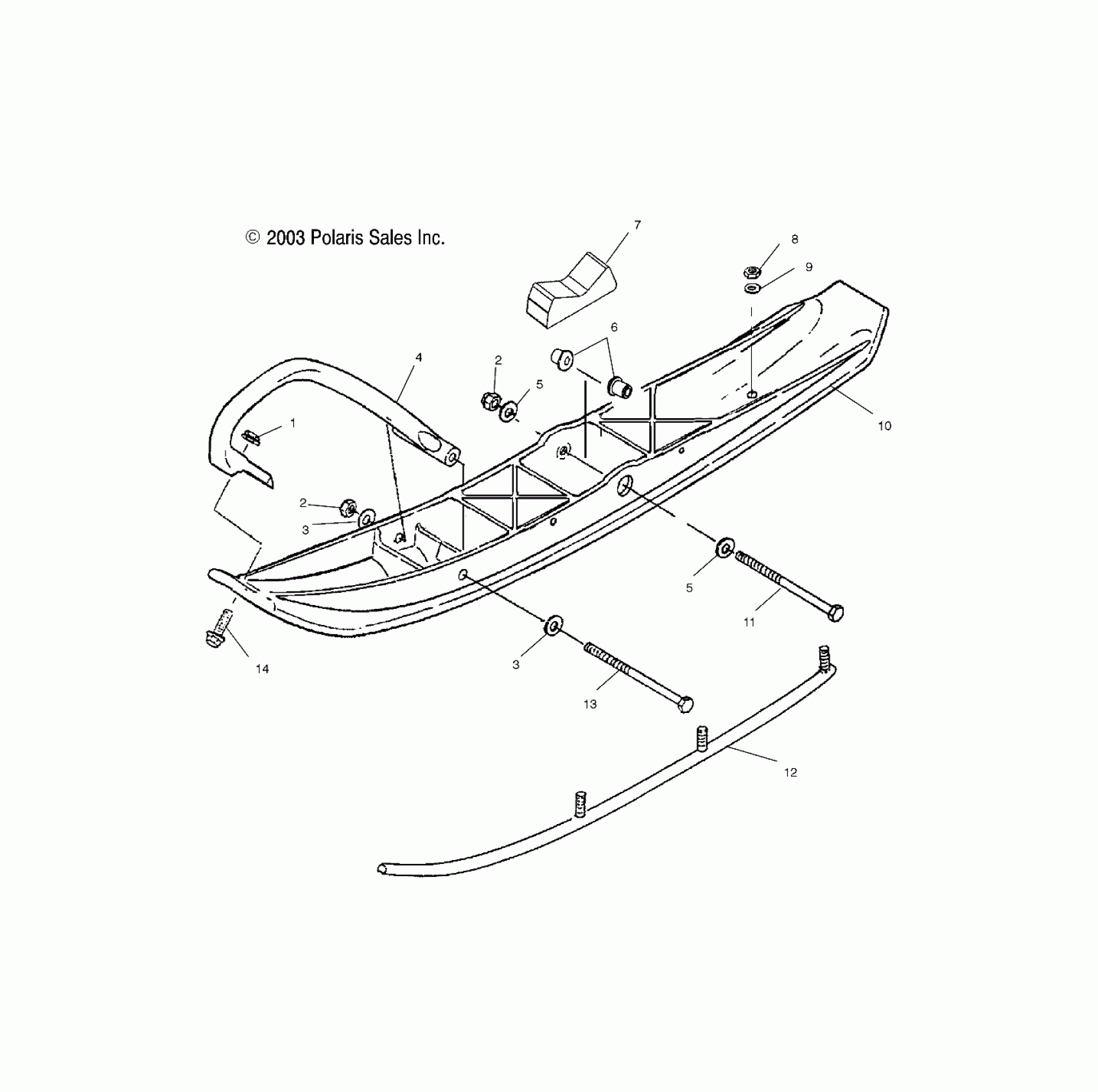

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES SKI - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859B05) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542439

$1.49

2

Nut, Nylok

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

Toe, Ski, Plastic, Cloud Silver

5434165-385

$40.46

4

Toe, Ski, Plastic, Red

5434165-293

$40.46

5

WASHER

7556130

$6.39

5

WASHER

7556130

$6.39

6

Bushing

5132637

$19.99

7

Stop, Rubber

5412018

$24.27

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

Washer, Flat

7556175

$5.99

10

Ski

1821327-070

$236.99

11

Screw

7517968

$9.59

12

Kit, Skag, 4 Inch, 60 Degree

2871688

$63.99

13

Screw

7515514

$7.19

14

Screw

7515307

$3.99
