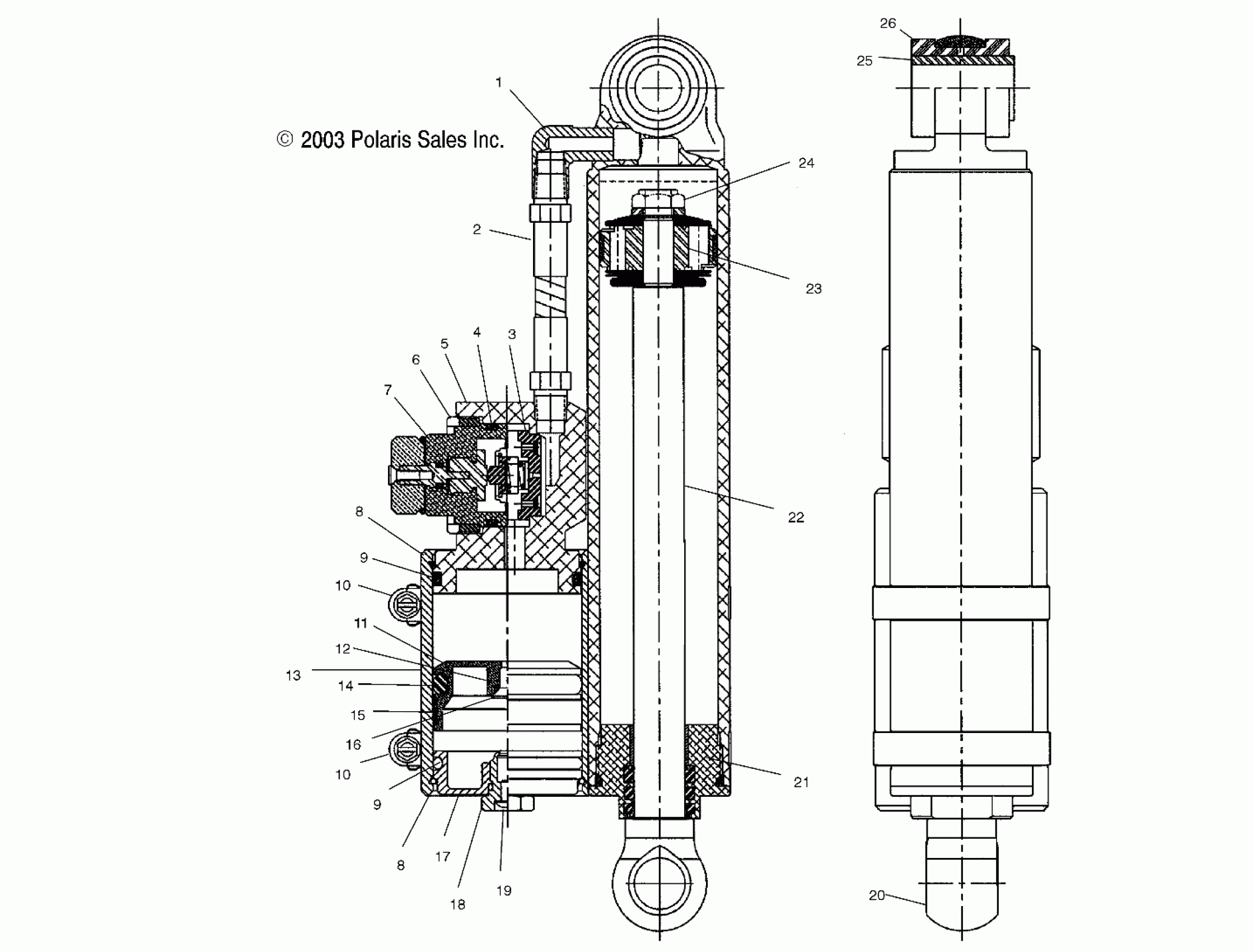

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES REAR TRACK SHOCK (PRO X) - S04NX6ES/EE/S04NX7CS/8CS (4988598859C07) Diagram

#

Description
Price

-

Shock, Rear Track

7042213

Unavailable

1

Fitting, Hose Connector

1700185

$45.29

2

Hose, Braided

1700060

Unavailable

3

Asm., Compression Head

1700150

$10.71

4

O-Ring

1700188

$4.92

5

End Cap, Clicker

1700144

$58.39

6

Collar

1700145

$50.44

7

Asm., Clicker

1700013

$142.84

8

Circlip

1700059

$6.19

8

Circlip

1700059

$6.19

9

O-Ring, End Cap

1700044

Unavailable

9

O-Ring, End Cap

1700044

Unavailable

10

Clamp, Hose

1700063

Unavailable

10

Clamp, Hose

1700063

Unavailable

11

IFP

1700017

$39.68

12

O-Ring, Bleed Screw

1700016

$7.99

13

Body, Reservoir

1700186

$108.70

14

O-Ring, IFP

1700043

$7.97

15

Band, Wear, IFP

1700018

Unavailable

16

Screw, Bleed, IFP

1700054

$6.19

17

End Cap

1700058

$39.67

18

Asm., Pressure Valve

1700053

Unavailable

18

O-Ring, Pressure Valve

1700045

$6.63

19

Screw, Valve

1700055

$9.59

20

Mount, Upper

1700187

$45.59

21

O-Ring, External

1700051

Unavailable

21

Asm., Cylinder Head

1700008

$191.41

21

Scraper, Rod

1700019

$27.79

21

O-Ring, Internal

1700046

Unavailable

21

Seal, Rod

1700020

$27.79

21

BEARING, DU

-------

Unavailable

22

Shaft

1700014

Unavailable

23

Washer, Back-Up

1700078

$9.59

23

Band, Wear, Piston

1700031

$28.32

23

Washer, Top-Out

1700077

$10.39

23

Piston, Banded

1700103

Unavailable

24

Nut

1700057

$9.59

25

Sleeve

1700069

$15.99

26

Bushing

1700073

$11.99
