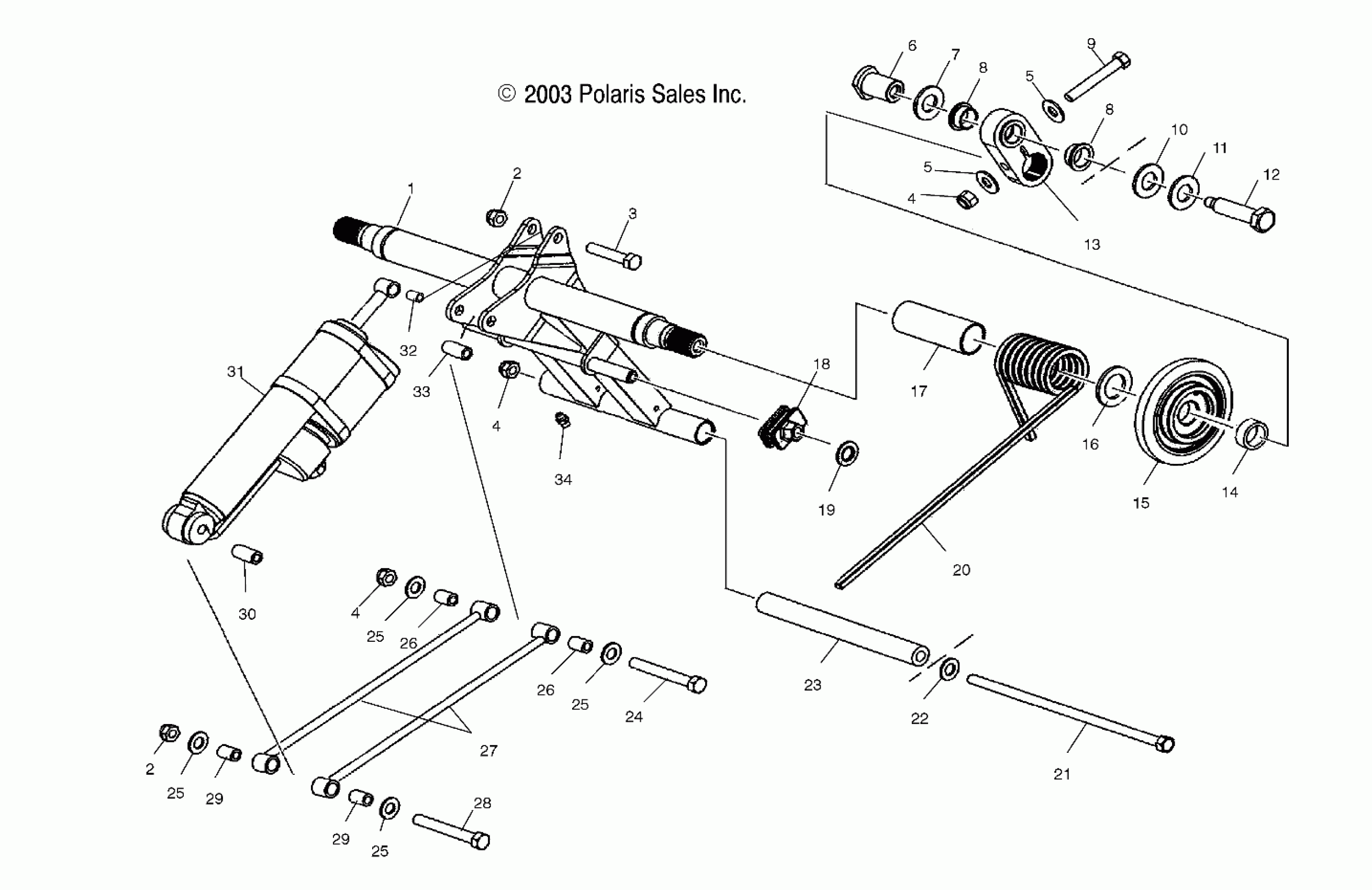

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES REAR TORQUE ARM - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859B14) Diagram

#

Description
Price

1

Arm, Torque, Rear

1541973-067

Unavailable

2

Nut, FLEXLOC

7542411

$3.19

2

Nut, FLEXLOC

7542411

$3.19

3

SCREW

7512410

Unavailable

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

WASHER, FLAT

7556188

$3.19

5

WASHER, FLAT

7556188

$3.19

6

Shaft, Arm

5132972

Unavailable

7

Washer, Thrust

7555945

$7.99

8

BUSHING

3514331

$19.99

8

BUSHING

3514331

$19.99

9

Screw

7515415

$1.49

10

Washer, Flat

7555984

$2.39

11

WASHER-LOCK, 7/16-B

7552614

$1.59

12

Screw

7517917

Unavailable

13

Asm., Rear Torque Arm [Incl. 8]

1541974

Unavailable

14

Spacer

5132388

Unavailable

15

Asm., Wheel

1590343

$72.84

16

WASHER, THRUST

7555787

Unavailable

17

Sleeve, Torsion Spring

5434502

$5.83

18

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

19

CLIP-PUSH ON

7080394

$2.39

20

Spring, Torsion, .375/77, Firm, LH [Opt.]

7041631-067

$140.38

20

Spring, Torsion, .375/77, Firm, RH [Opt.]

7041632-067

$140.38

20

Spring, Torsion, .347 PRO X/77, RH [Opt.]

7042102-067

Unavailable

20

Spring, Torsion, .359/77, LH [Std.]

7042157-067

$95.19

20

Spring, Torsion, .359/77, RH [Std.]

7042158-067

Unavailable

20

Spring, Torsion, .347 PRO X/77, LH [Opt.]

7042101-067

$113.32

21

Screw

7517232

$19.99

22

Washer, Flat

7555806

$1.49

23

Shaft

5334025

$48.56

24

Bolt

7515514

$7.19

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

Bushing

5132391

$7.99

26

Bushing

5132391

$7.99

27

Rod, Shock

1541626-067

$29.99

28

Screw

7517851

$6.39

29

Bushing

5132974

Unavailable

29

Bushing

5132974

Unavailable

30

SLEEVE

5333905

$15.99

31

Shock, Rear Track [Pro X]

7042213

Unavailable

31

Shock, Rear Track [Pro X2]

7042298

Unavailable

32

BUSHING

5010422

$11.99

33

Sleeve

5333907

$15.99

34

FITTING-LUBRICATION 1/4-28

7080424

$4.79
