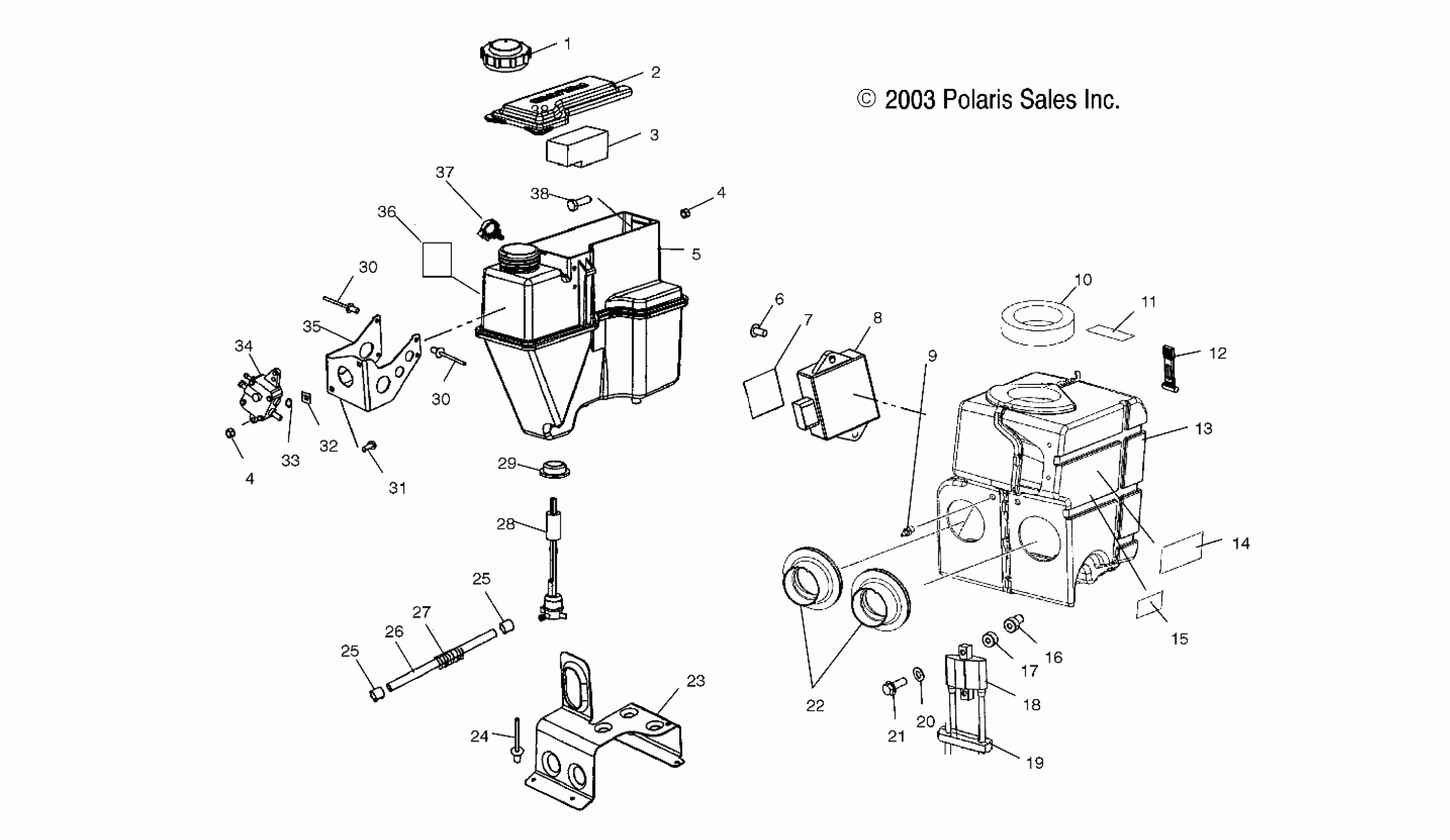

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES OIL TANK/AIR BOX - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859C10) Diagram

#

Description
Price

1

Cap, Oil, Vented

1240094

$36.41

2

Cover, Tool Box

5434089

$27.19

3

Foam, Tool Box

5812209

Unavailable

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Bottle, Oil/Tool Box

1261219

Unavailable

5

Asm., Oil Tank w/Sending Unit [Incl. 2,28]

1253474

Unavailable

6

Screw

7512095

$4.79

7

Decal, DET [700][800]

7170413

Unavailable

8

KIT, CDI [SEE MAGNETO, 600 PG. E2, REF. 10; 700 PG. E3, REF. 19; 800 PG. E4, REF. 19]

-------

Unavailable

9

Fitting

7052077

$6.39

10

Foam, Air Box, Chimney

5811983

$20.22

11

Decal, Caution, Air Box

7075351

Unavailable

12

STRAP-AIRBOX TOP

5433150

$24.27

13

Asm., Air Silencer [Incl. 22 & Decals][600]

1253416

Unavailable

13

Asm., Air Silencer [Incl. 22 & Decals][700][800]

1253511

Unavailable

14

Decal, Belt Removal

7171037

Unavailable

15

Decal, Greasing

7073426

$7.27

16

Nut, Well

7547103

$8.79

17

Washer, Nylon

7555932

$2.39

18

COIL, IGNITION [SEE MAGNETO, 600 PG. E2, REF. 12; 700 PG. E3, REF. 17; 800 PG. E4, REF. 17]

-------

Unavailable

19

Clip, Ignition Cable

7080471

$3.59

20

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

21

Screw

7517610

$1.59

22

Boot, Carburetor [600]

5411424

Unavailable

22

Boot, Carburetor [700][800]

5412222

$11.19

23

Bracket, Oil Bottle, Lower

5245801

$25.59

24

RIVET-3/16-.090-.290

7661637

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

HOSE

8450003-1525

Unavailable

27

Conduit, Convoluted

4010051-18

Unavailable

28

Sender, Oil w/Front Terminals

4010660

$60.70

29

Grommet, Oil Sender

7052305

$4.84

30

RIVET

7621479

$1.99

30

RIVET

7621479

$1.99

31

Bolt, Carriage

7512263

$3.99

32

Nut, Speed

7670021

$6.99

33

Washer

7556144

$3.99

34

PUMP, FUEL [SEE ENGINE MOUNTING PG. C9, REF. 14]

-------

Unavailable

35

Bracket, Fuel Pump

5246113

$34.71

36

Decal, Oil, VES

7079003

Unavailable

37

Clip, Rosebud [700][800]

4020139

$4.79

38

Screw

7512297

$5.59
