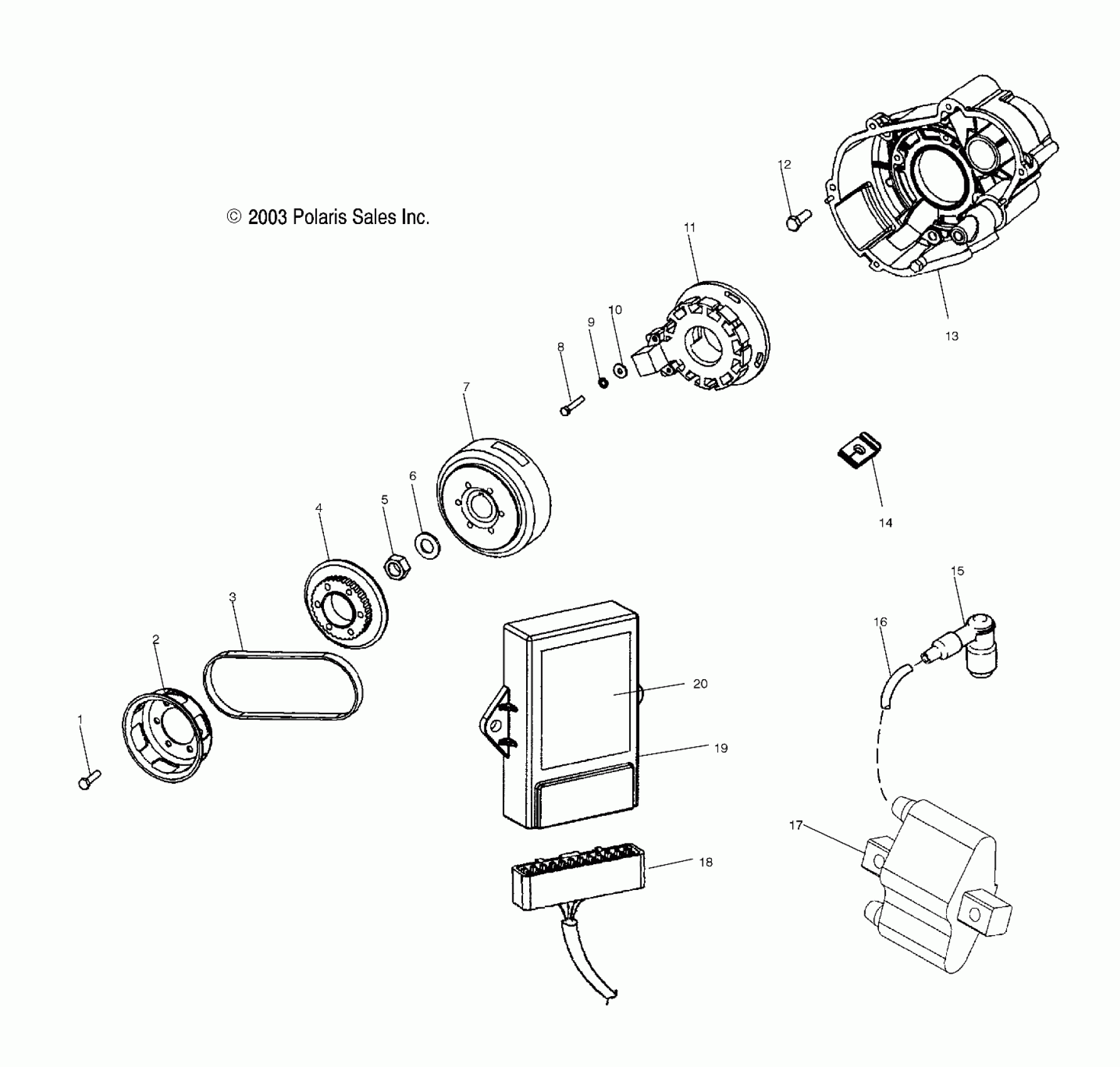

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES MAGNETO (800) - S04NX8CS/S04NY8CS/8CE (4988598859E04) Diagram

#

Description
Price

1

Screw

7517998

$3.19

2

Pulley, Starting, Recoil

3021144

Unavailable

3

Kit, Waterpump Belt

2201821

$71.41

4

Pulley, Water Pump Drive

5630824

Unavailable

5

Nut, Hex

7546909

Unavailable

6

WASHER

7555907

$5.59

7

Flywheel, Ignition

4010677

$203.99

8

Screw

7517246

$2.63

9

Washer, Lock

7555969

Unavailable

10

Washer, Flat

7555970

Unavailable

11

Stator, Ignition

4010297

Unavailable

12

SCREW

7516734

$3.19

13

Asm., Housing, Ignition

1202161

$231.19

14

Grommet, Stator Wires

5411178

$5.03

15

Cap, Spark Plug

4020159

Unavailable

16

Wire, Ignition

4010124-305

Unavailable

17

Coil, Ignition

4060229

Unavailable

18

Harness, Ignition

4010872

Unavailable

19

Kit, CDI [Incl. Nyogel & Decal]

2202523

Unavailable

20

Decal, DET

7170413

Unavailable
