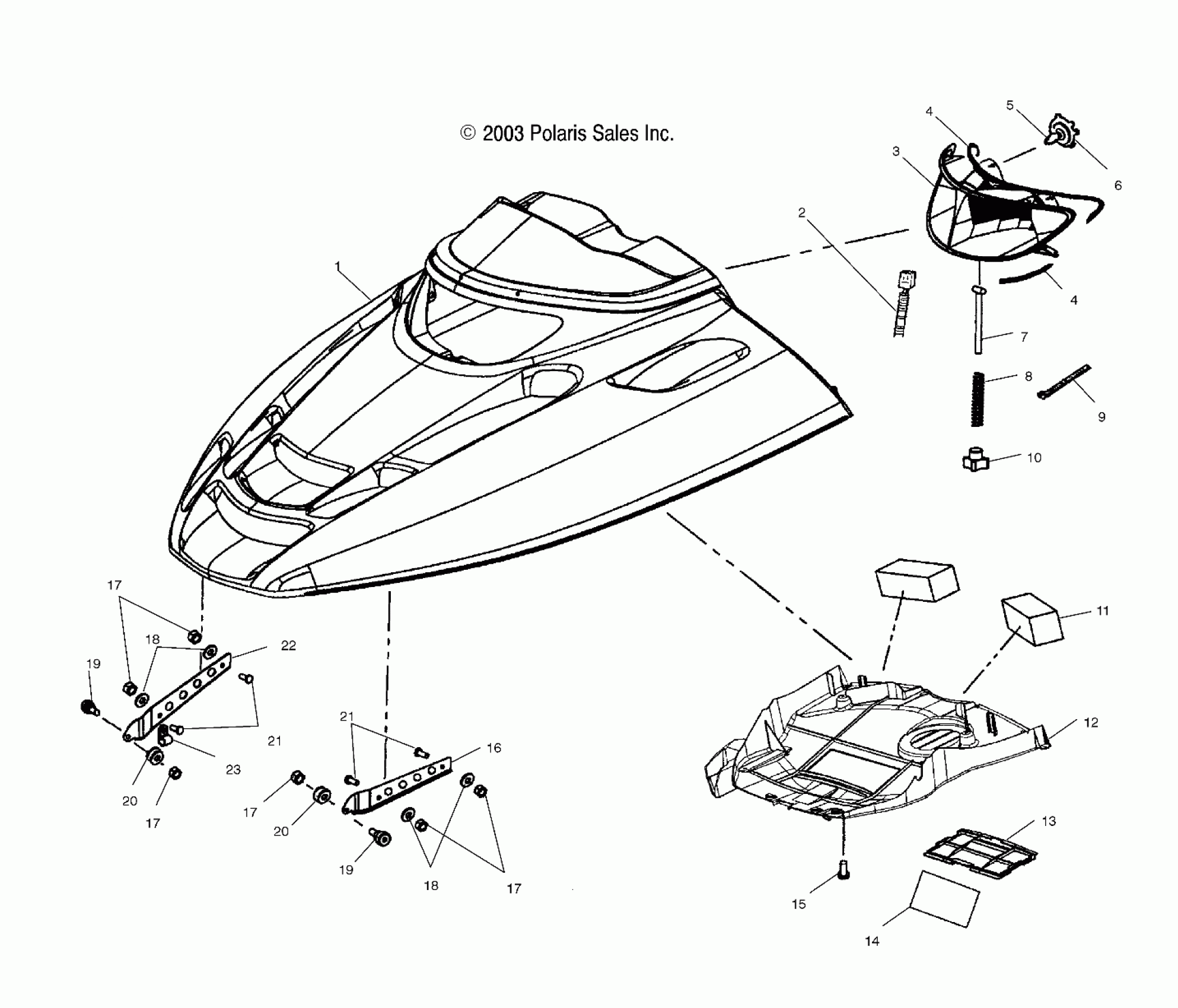

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES HOOD - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859A08) Diagram

#

Description
Price

1

Asm., Hood [Incl. Foam and Foil]

2632535-177

$654.76

2

Harness, Headlight

2461015

$66.39

3

Asm. Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Seal, Headlight

5812450

$44.99

4

Seal, Headlight

5812450

$44.99

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Tee Adjuster

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

Foam, Prefilter

5811793

$24.27

12

Foil

5811948

Unavailable

12

Asm., Plenum, Foil

2632491

$64.75

12

Foil

5812324

Unavailable

13

COVER, HEADLIGHT ACCESS

5433660

$24.27

14

Decal, Suspension Set up

7171028

Unavailable

15

SCREW

7512068

$2.39

16

Hinge, Upper, LH

5243567-067

Unavailable

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

18

Washer, Flat

7558301

$1.49

18

Washer, Flat

7558301

$1.49

19

Bolt

7512113

$3.99

19

Bolt

7512113

$3.99

20

Spacer

5332403

$4.84

20

Spacer

5332403

$4.84

21

BOLT

7512240

$3.99

21

BOLT

7512240

$3.99

22

Hinge, Upper, RH

5243568-067

Unavailable

23

CLAMP-CABLE

7080367

$2.39
