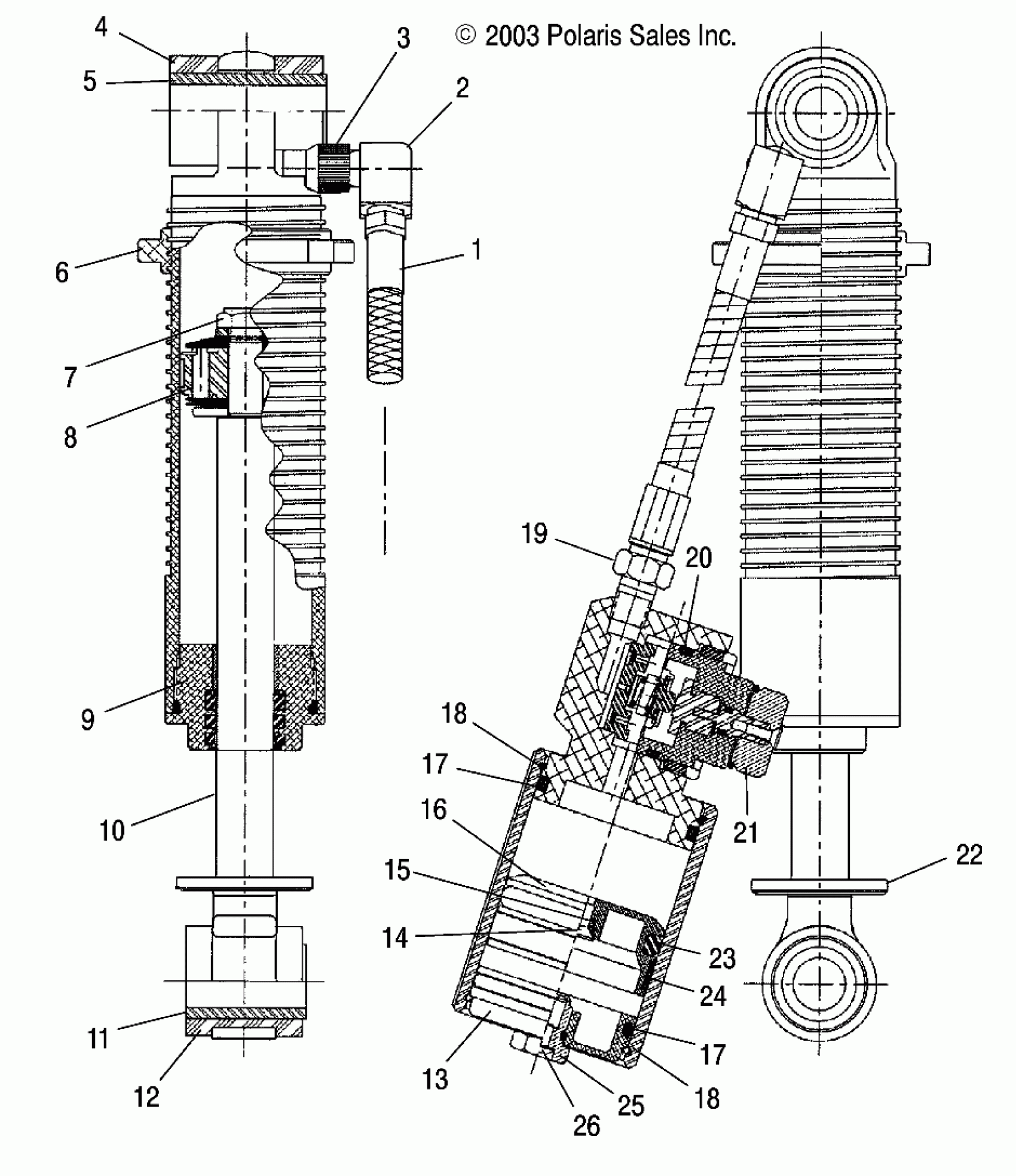

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES FRONT TRACK SHOCK (PRO X) - S04NX6ES/EES04NX7CS/8CS (4988598859C05) Diagram

#

Description
Price

-

Shock, Front Track

7042214

$444.99

1

Hose, Braided

1700061

Unavailable

2

Elbow

1700062

$19.43

3

Adapter

1700035

Unavailable

4

Bushing

1700074

Unavailable

5

Sleeve

1700071

$15.99

6

Nut, Spring Retainer

1700030

Unavailable

7

Nut

1700057

$9.59

8

Washer, Back-Up

1700078

$9.59

8

Band, Wear, Piston

1700031

$28.32

8

Washer, Top-Out

1700077

$10.39

8

Piston, Banded

1700108

$30.55

9

O-Ring, External

1700051

Unavailable

9

Asm., Cylinder Head

1700008

$191.41

9

Scraper, Rod

1700019

$27.79

9

O-Ring, Internal

1700046

Unavailable

9

Seal, Rod

1700020

$27.79

9

BEARING, DU

-------

Unavailable

10

Shaft

1700015

Unavailable

11

Sleeve

1700069

$15.99

12

Bushing

1700075

$11.99

13

Cap, End

1700058

$39.67

14

Screw, Bleed, IFP

1700054

$6.19

15

O-Ring, Bleed Screw

1700016

$7.99

16

IFP

1700017

$39.68

17

O-Ring, End Cap

1700044

Unavailable

17

O-Ring, End Cap

1700044

Unavailable

18

Circlip

1700059

$6.19

18

Circlip

1700059

$6.19

19

Adapter, Male

1700065

$27.83

20

O-Ring

1700188

$4.92

21

Asm., Clicker

1700013

$142.84

22

Mount, Upper

1700187

$45.59

23

O-Ring, IFP

1700043

$7.97

24

Band, Wear, IFP

1700018

Unavailable

25

Asm., Pressure Valve

1700053

Unavailable

25

O-Ring, Pressure Valve

1700045

$6.63

26

Screw, Valve

1700055

$9.59
