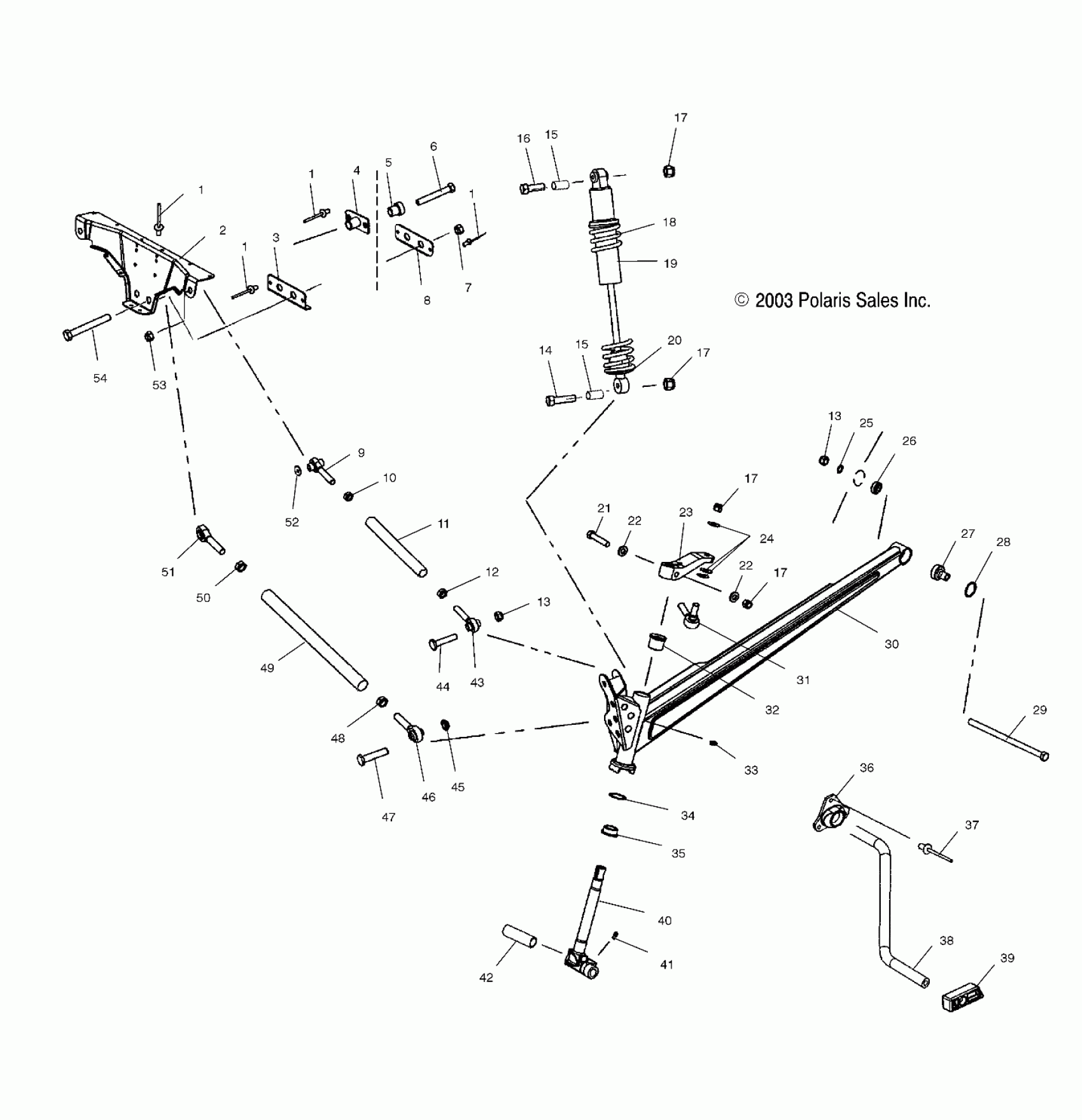

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES FRONT SUSPENSION - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859A13) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Bracket, Radius Rod Support

5245740-067

$164.79

3

Bracket, Radius Rod, Lower

5245250

$11.59

4

Support, Radius Rod

1013733

$34.71

5

Bushing

5132897

$4.63

6

Screw

7517980

$7.99

7

Nut, FLEXLOC

7542703

Unavailable

8

Plate, Lower, Inner

5245307

$7.43

9

Rod End, LH

7061107

$36.31

10

Nut

7547117

Unavailable

11

Rod, Radius, Upper

5133686

Unavailable

12

Nut, Jam

7542520

$2.39

13

NUT, NYLON

7547066

$1.59

13

NUT, NYLON

7547066

$1.59

14

SCREW

7517583

$4.35

15

Spacer

1700066

Unavailable

15

Spacer

1700066

Unavailable

16

Screw

7515415

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

18

Spring, Compression, Red

7041591-293

Unavailable

18

Spring, Compression, Silver (W.E.)

7042187-385

Unavailable

19

Shock, IFS (See IFS Shock (PRO X) pg C3 for Details)

7042215

$469.99

19

Shock, IFS, Walker Evans (See IFS Shock (PRO X2) pg C4 for Details)

7042296

Unavailable

20

RETAINER, SPRING, SLOTTED

5020618

$24.99

21

Screw

7515433

$1.59

22

WSHR-.813X.406X.105-Y

7555832

$2.39

22

WSHR-.813X.406X.105-Y

7555832

$2.39

23

Kit, Steering Arm

5133694

$53.59

24

Washer, Flat

7555797

$3.99

25

WASHER, FLAT

7555820

$3.99

26

Cup, Trailing Arm Mount

5133990

$7.19

27

Bearing, Spherical

7061094

Unavailable

28

RING, RETAINER

7710437

$3.19

29

Screw

7512099

$19.99

30

Asm., Trailing Arm, LH [Incl. 27,28]

1821147-385

Unavailable

30

Asm., Trailing Arm, RH [Incl. 27,28]

1821148-385

$298.99

31

Rod End

7061057

$48.56

32

Bushing, Flange

3514376

Unavailable

33

Fitting, Lubrication

7080433

$1.49

34

Bushing

7556207

Unavailable

35

Bushing, Flange

3514377

Unavailable

36

Bushing, Torsion Bar

5433234

$23.99

37

Rivet

7621452

$1.49

38

Bar, Torsion

5246062-067

Unavailable

39

Slide, Torsion Bar

5434481

$24.27

40

Shaft, Spindle

6230248-067

Unavailable

41

Fitting, Lubrication

7080306

$3.19

42

Bushing

5010158

$19.99

43

Rod End

7061108

Unavailable

44

Screw

7517907

$4.23

45

Nut, Nylon

7547065

$3.99

46

Rod End

7061106

$43.99

47

Screw

7517906

Unavailable

48

Nut

7542711

$2.39

49

Rod, Radius, Lower

5133685

Unavailable

50

Nut

7547028

$2.39

51

Rod End, LH

7061105

Unavailable

52

Washer

7555928

Unavailable

53

Nut, FLEXLOC

7542503

$10.39

54

Bolt

7512656

$6.23
