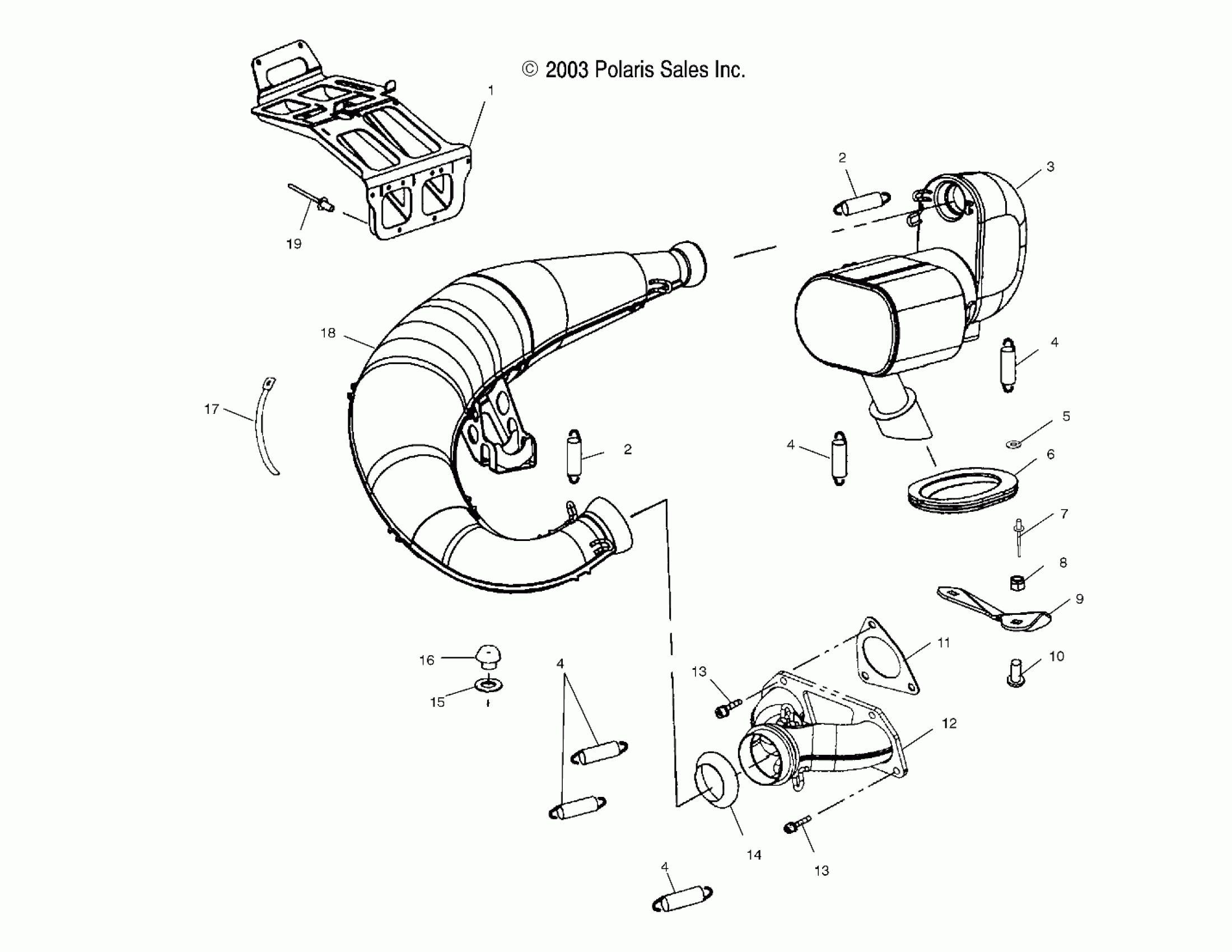

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES EXHAUST - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859C11) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261174-029

$113.99

2

Spring, Exhaust [600]

7042029

$4.84

2

Spring, Exhaust [600]

7042029

$4.84

3

Resonator [600][700]

1261130-029

$649.99

3

Resonator [800]

1261177-029

Unavailable

4

SPRING-EXHAUST [Qty. 11 for 700/800]

7041687

$5.65

4

SPRING-EXHAUST [Qty. 11 for 700/800]

7041687

$5.65

4

SPRING-EXHAUST [Qty. 11 for 700/800]

7041687

$5.65

4

SPRING-EXHAUST [Qty. 11 for 700/800]

7041687

$5.65

5

Washer

7555904

$1.49

6

Boot, Exhaust, Outlet

5411684

Unavailable

7

RIVET

7621467

$1.49

8

Nut, Flange

7542321

$1.49

9

Deflector, Snow, Exhaust

5243929

$24.27

10

Bolt, Carriage

7512377

$4.79

11

Gasket, Exhaust [700][800]

5811799

Unavailable

11

Gasket, Exhaust [600]

5811838

$8.89

12

Manifold [600]

1261154-029

$82.39

12

Manifold [700][800]

1261218-029

Unavailable

13

Screw

7517322

$2.39

13

Screw

7517322

$2.39

14

SEAL, EXHAUST, SOCKET

3610046

$36.41

15

Washer [Qty. 3 for 700/800]

7556004

$7.19

16

Dampener, Vibration w/Ribs

5411576

$7.99

17

Clamp [.44 x 3.75][600]

7080812

$19.99

17

Clamp [.44 x 4.25][600]

7080813

$3.99

17

Clamp [.44 x 3.69][700][800]

7080740

$13.19

17

Clamp [.44 x 4.25][700][800]

7080741

$19.99

17

Clamp [.44 x 6.38][700][800]

7080742

$15.03

17

Clamp [.44 x 6.5][600]

7080811

$11.99

18

Cover, Tuned Pipe, Top [700][800]

5245929

$70.39

18

Matte, Sound, Top [700][800]

5830215

$73.81

18

Cover, Tuned Pipe, Top [600]

5244398

Unavailable

18

Matte, Sound, Top [600]

5830207

$12.39

18

Asm., Tuned Pipe [600]

1261155

Unavailable

18

Matte, Sound, Bottom [600]

5830212

$13.19

18

Cover, Tuned Pipe, Bottom [600]

5245517

$49.59

18

Cover, Tuned Pipe, Bottom [700][800]

5246321

$49.59

18

Matte, Sound, Bottom [700][800]

5830233

$66.39

18

Asm., Tuned Pipe [700][800]

1261213

$464.99

19

Rivet

7661169

Unavailable
