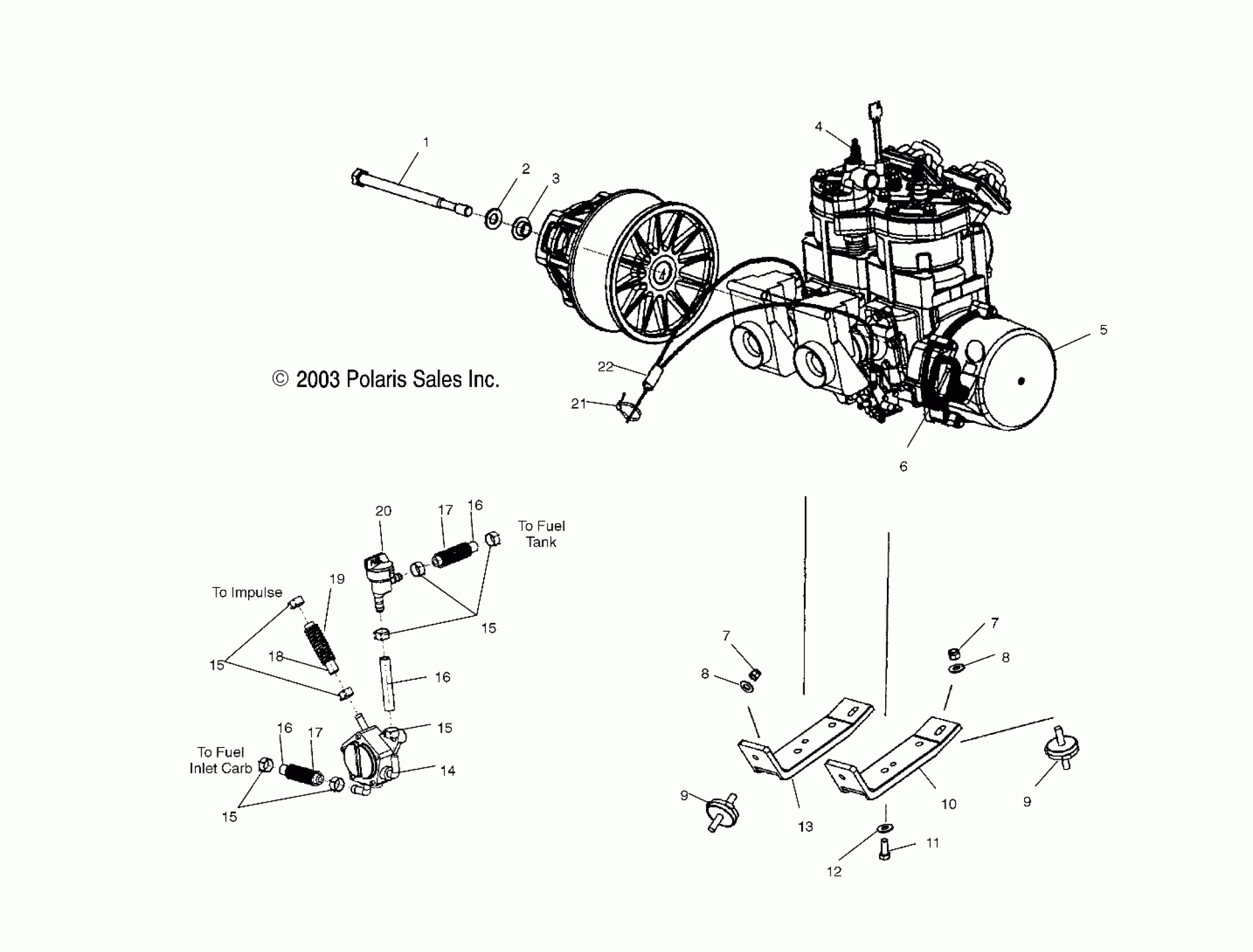

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES ENGINE MOUNTING - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859C09) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

Plug, Spark RN57YCC

3070190

$3.99

5

Engine, Short Block [700] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required fo

2202513

Unavailable

5

Engine, Short Block [800] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required fo

2202517

Unavailable

5

Engine, Short Block [600] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required fo

2202514

Unavailable

6

Handle, Recoil

5431499-070

$15.48

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

Washer, Flat

7555893

$1.49

8

Washer, Flat

7555893

$1.49

9

Mount, Engine

3021244

Unavailable

9

Mount, Engine

3021244

Unavailable

10

Strap, Engine Mount, RH [600]

5245271

$78.39

10

Strap, Engine Mount, RH [700][800]

5246236

$84.98

11

Screw [700][800]

7512539

$3.99

11

Screw [600]

7517339

Unavailable

12

Washer, Lock [700][800]

7553101

$3.99

13

Strap, Engine Mount, LH [600]

5245270

$78.39

13

Strap, Engine Mount, LH [700][800]

5246235

$70.39

14

Pump, Fuel

2520290

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

Line, Fuel

8350017-600

Unavailable

16

Line, Fuel

8350017-600

Unavailable

16

Line, Fuel

8350017-600

Unavailable

17

Tubing, Convoluted

8360052-15

Unavailable

17

Tubing, Convoluted

8360052-15

Unavailable

18

Line, Fuel

8450040-600

Unavailable

19

TUBING, CONVOLUTED

8360052-25

Unavailable

20

Asm., Valve, Fuel

1253424

$44.99

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

Cable, Throttle [600]

7080867

$36.79

22

Cable, Throttle [700][800]

7081051

$64.75
