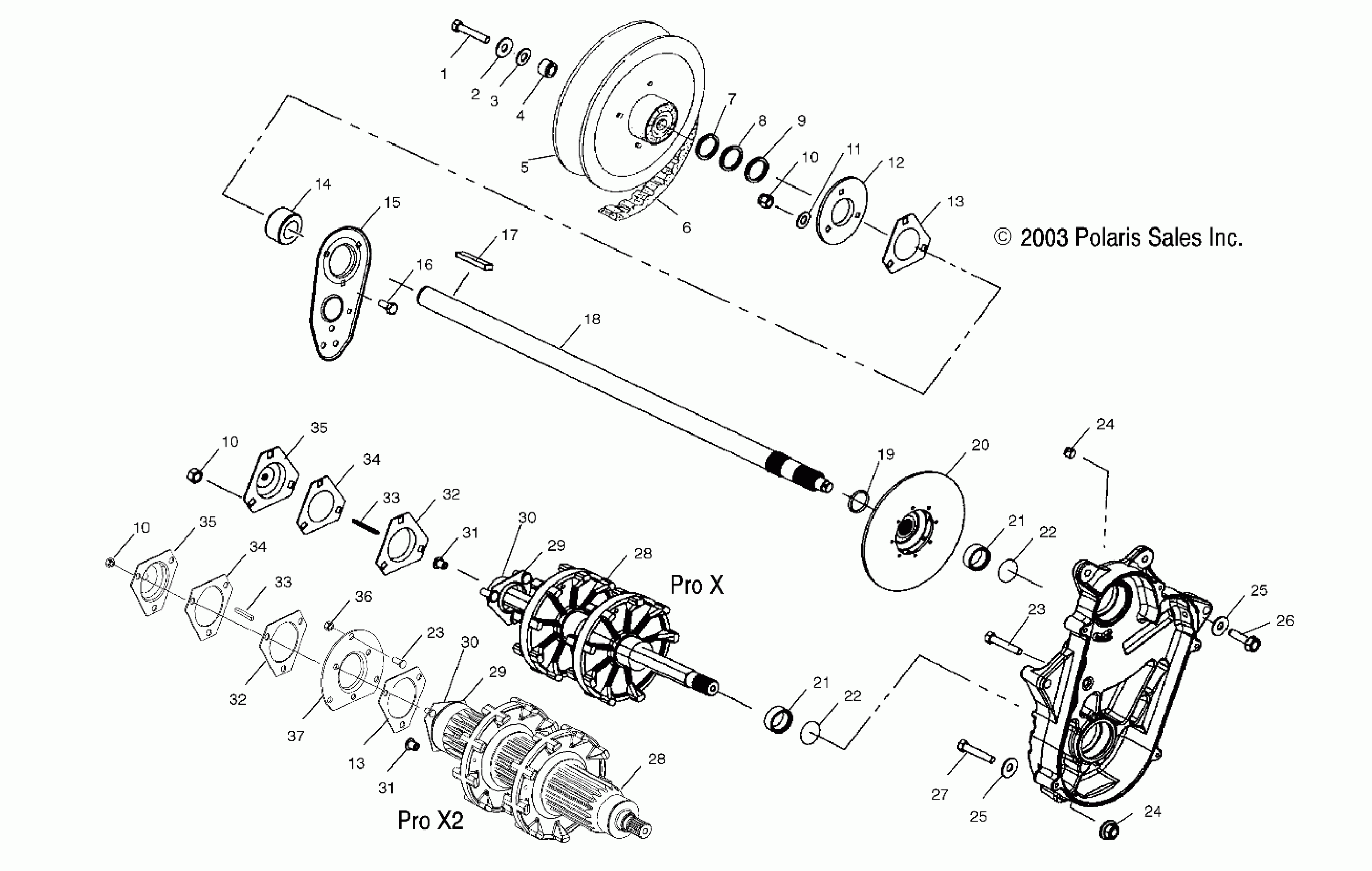

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES DRIVE TRAIN - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859B10) Diagram

#

Description
Price

1

Bolt

7515301

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5020291

Unavailable

5

ASM., DRIVEN CLUTCH, BASIC 211 W/B [SEE DRIVEN CLUTCH PG. C2 FOR DETAILS]

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

WASHER

7555917

Unavailable

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Flangette w/Grease Fitting

5241359

$32.37

13

Gasket, Jackshaft [Qty. 2 for Pro X2]

5811095

$2.41

13

Gasket, Jackshaft [Qty. 2 for Pro X2]

5811095

$2.41

14

Bearing, Jackshaft, 1 Inch

3514519

$64.99

15

Flangette

5245889-067

Unavailable

16

Bolt, Carriage

7512377

$4.79

17

Key

7721116

$12.94

18

Asm., Jackshaft [Incl. 19]

1332254

Unavailable

19

RING, RETAINING

7710422

$3.99

20

Kit, Disc, Brake

2202493

Unavailable

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O-RING

5410613

$1.99

22

O-RING

5410613

$1.99

23

Bolt, Carriage

7515428

$4.79

23

Bolt, Carriage

7515428

$4.79

24

Nut, Flange

7542423

$3.99

24

Nut, Flange

7542423

$3.99

25

Washer

7558403

$4.79

25

Washer

7558403

$4.79

26

Screw

7518002

$3.03

27

Screw

7512492

$1.49

28

Asm., Drive Shaft 2 DR. [Incl. 29,30,31][600 Pro X]

1590346

$411.49

28

Asm., Drive Shaft 3 DR. [Incl. 29,30,31][700/800 Pro X]

1590347

Unavailable

28

Asm., Drive Shaft Tubular [Incl. 29,30,31][600/700/800 Pro X2]

1590342

$411.49

28

Asm., Drive Shaft 2 DR. [Incl. 29,30,31][600 Pro X]

1590346

$411.49

28

Asm., Drive Shaft 3 DR. [Incl. 29,30,31][700/800 Pro X]

1590347

Unavailable

28

Asm., Drive Shaft Tubular [Incl. 29,30,31][600/700/800 Pro X2]

1590342

$411.49

29

Asm., Flangette w/Screws [Pro X]

1012945

$114.99

29

Asm., Flangette w/Screws [Pro X2]

1014299

$43.56

29

Asm., Flangette w/Screws [Pro X]

1012945

$114.99

29

Asm., Flangette w/Screws [Pro X2]

1014299

$43.56

30

BEARING

3514525

$31.99

30

BEARING

3514525

$31.99

31

Bushing, Speedometer, Metal

3280019

$11.99

31

Bushing, Speedometer, Metal

3280019

$11.99

32

Flangette

5243529

$13.75

32

Flangette

5243529

$13.75

33

Key, Speedometer, Square [Pro X]

3280017

$13.75

33

Key, Speedometer, Square [Pro X2]

3280110

Unavailable

33

Key, Speedometer, Square [Pro X]

3280017

$13.75

33

Key, Speedometer, Square [Pro X2]

3280110

Unavailable

34

Gasket, Drive Adaptor

5830012

$2.41

34

Gasket, Drive Adaptor

5830012

$2.41

35

Adaptor w/Fitting, Drive

3280116

$101.17

35

Adaptor w/Fitting, Drive

3280116

$101.17

36

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

37

Flangette

5246036

$13.83
