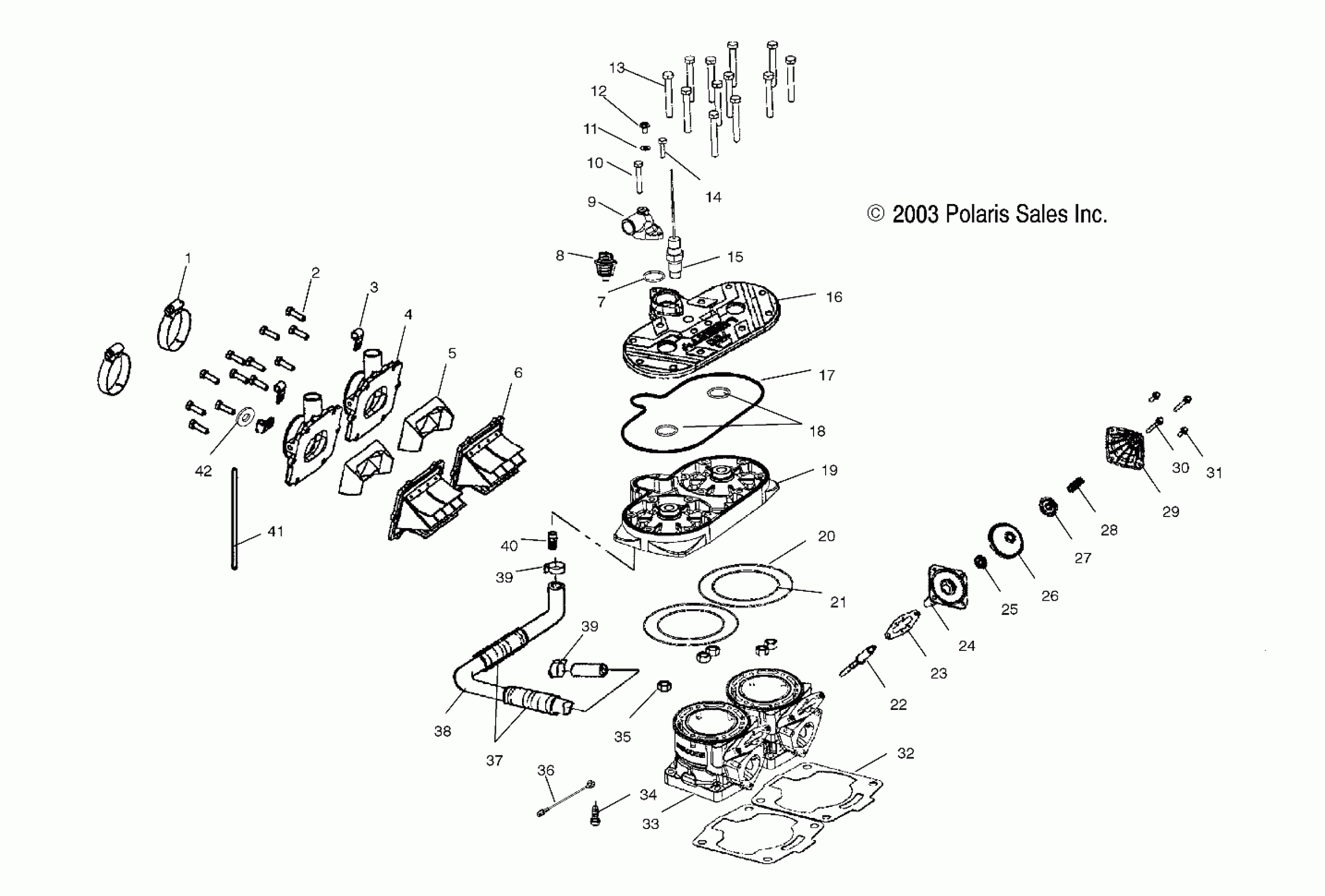

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES CYLINDER (700) - S04NX7CS/S04NY7CS/CE (4988598859D02) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carb

1253485

Unavailable

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

7

O-Ring

5411521

$24.19

8

Thermostat w/o Bypass

7052258

$48.56

9

Cover, Thermostat

5631391

Unavailable

10

Screw

7517950

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW, BLEED

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Temperature

4010398

$36.41

16

Cover, Head

5631426-366

Unavailable

17

Seal, Rubber, Head

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021425

Unavailable

20

O-Ring

5412232

$7.99

21

O-RING

5410932

$20.22

22

Valve, Guillotine

5133743

$154.99

23

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

24

Asm., Base Exhaust Valve Dome

1202216

Unavailable

25

Washer, Bellows, Exhaust, Valve, Dome

5132950

Unavailable

26

Bellows, Exhaust Valve

5412399

$44.51

27

Cap/Nut, Bellows, Exhaust, Valve, Dome

5631381

$33.87

28

Spring, Compression, Green/Yellow

7041786-08

Unavailable

29

Asm., Exhaust Valve Housing/Bushing

1202640

$15.99

30

SCREW

7517932

$3.99

31

SCREW

7516820

$5.59

32

Gasket, Cylinder Base

5812362

$12.13

33

Cylinder

3021367

Unavailable

34

SCREW

7517262

$5.59

35

NUT

7547013

$1.99

36

SENSOR, DETONATION

2410369

$76.89

37

Conduit, Flex

5521398-96

Unavailable

38

Hose, Bypass

5411536

Unavailable

39

Clamp

7081030

$6.39

39

Clamp

7081030

$6.39

40

FITTING

7052222

$23.99

41

Retainer

7080654

$18.32

42

Washer, Flat

7555836

$3.99
