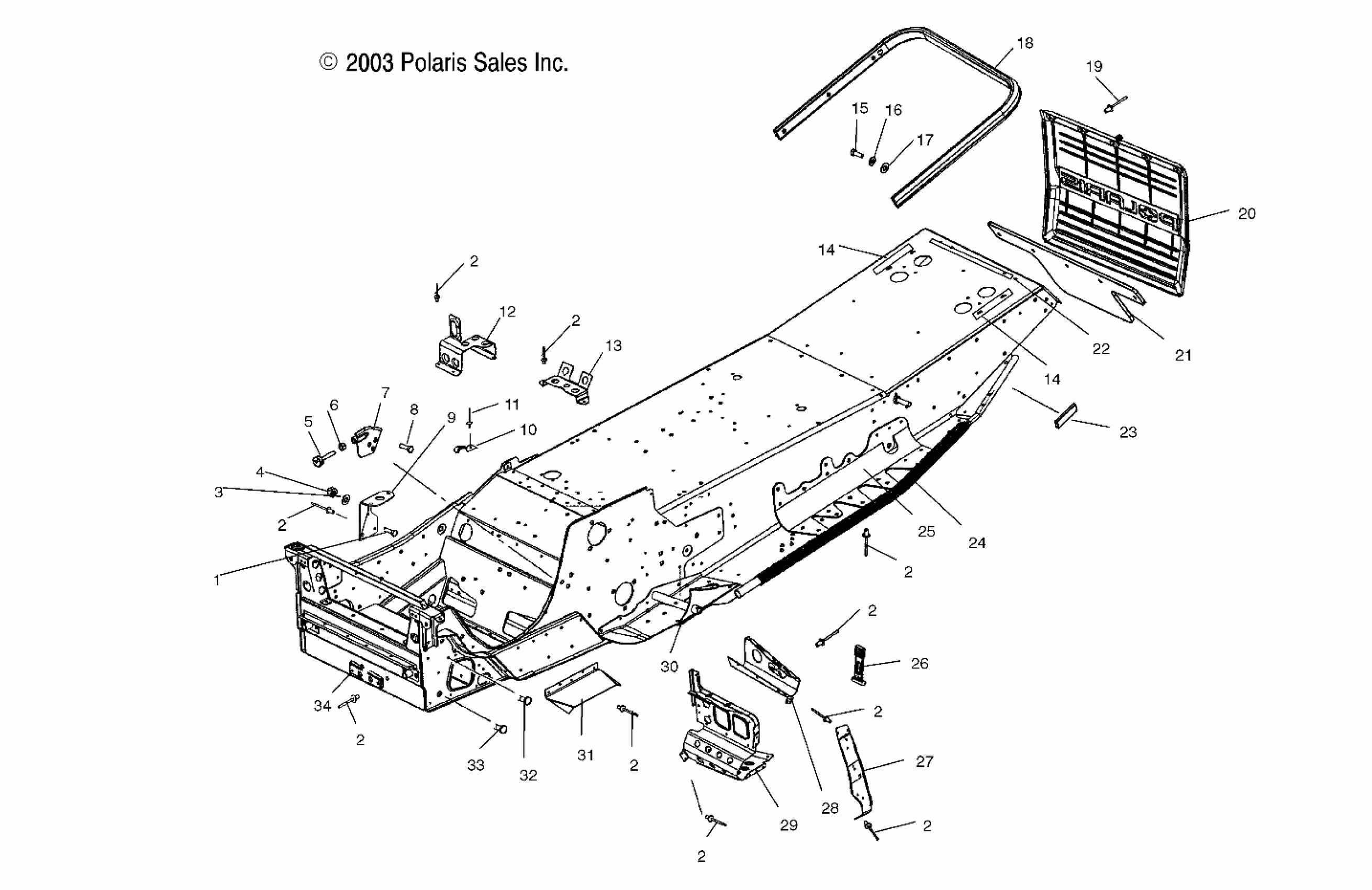

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES CHASSIS - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859A03) Diagram

#

Description
Price

-

Asm., Chassis, Pro X

1014017-1176

Unavailable

-

Asm., Chassis, Pro X2

1014286-1176

Unavailable

1

Screw [700][800]

7512027

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Washer [700][800]

7555783

$3.99

4

Nut [700][800]

7541906

$3.19

5

Stop, Torque [600]

3021104

$20.22

5

Stop, Torque [700][800]

3021354

$24.27

6

Nut [600]

7542404

$1.59

6

Nut [700][800]

7542414

$4.79

7

Stop, Torque [700][800]

1013835

Unavailable

7

Stop, Torque [600]

1013458

Unavailable

8

Screw

7517854

$5.59

9

Bracket, Chassis/Tuned Pipe

5245514

Unavailable

10

Clip, Wiring

7080665

Unavailable

11

Rivet

7621432

$1.49

12

Bracket, Oil Bottle, Lower

5245801

$25.59

13

Bracket, Mount, Airbox [600]

5245398

$22.23

13

Bracket, Mount, Airbox [700][800]

5246313

$18.23

14

Gasket, Seat Base [Pro X]

5812290

$1.49

14

Gasket, Seat Base [Pro X]

5812290

$1.49

15

SCREW

7512232

$1.49

16

WASHER, SPRING LOCK

7552801

$1.59

17

WASHER

7558301

$1.49

18

Bumper, Rear

2632165-309

Unavailable

19

RIVET

7621418

$1.49

20

Flap, Snow

5433521-1106

Unavailable

21

Support, Snow Flap

5812229

Unavailable

22

Gasket, Seat Base [Pro X]

5812360

$1.83

23

Reflector, Red

2670133

$5.75

24

Grip, Tunnel Roll, LH

5133971

$45.59

24

Grip, Tunnel Roll, RH

5133972

$45.59

25

Brace, Tunnel, LH

5245820

$58.39

25

Brace, Tunnel, RH

5245821

$58.39

26

STRAP-AIRBOX TOP

5433150

$24.27

27

Support, Footrest, LH

5246310

$19.83

27

Support, Footrest, RH

5246311

$32.37

28

Mount, Console, Toe Clip, LH

5245457

Unavailable

28

Mount, Console, Toe Clip, RH

5245458

Unavailable

29

Footrest, LH

5245288

Unavailable

29

Footrest, RH

5247205

Unavailable

30

Mount, Trailing Arm, RH

2202437

Unavailable

30

Mount, Trailing Arm, LH

2202659

Unavailable

31

Guard, Adaptor, Drive

5222857

$12.94

32

PLUG-HOLE

7080398

$4.84

33

PLUG, HOLE

7080416

$5.65

34

Bracket, Radius Rod Strap, Lower

5245250

$11.59
