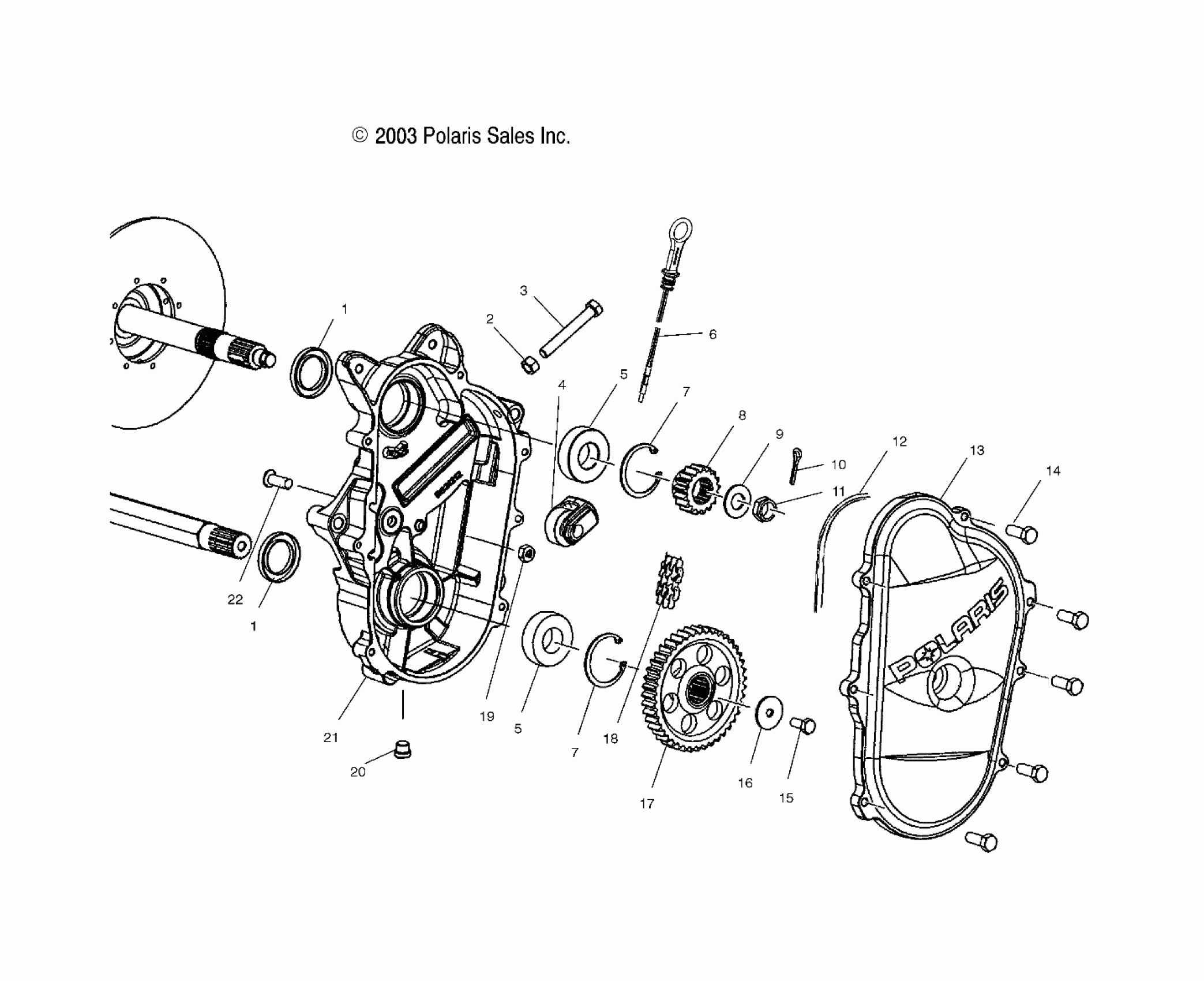

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES CHAINCASE - S04NX6ES/EE/S04NY6ES/EE/S04NX7CS/8CS/S04NY7CS/CE/8CS/8CE (4988598859B09) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

BEARING

3553002

$11.99

4

Wheel, Idler

5630123

Unavailable

4

WASHER, THRUST

7558702

$1.59

4

Asm., Tightener, Chaincase

1332266

$74.99

5

Bearing

3514309

$15.87

5

Bearing

3514309

$15.87

6

O-RING

5410675

$1.60

6

Dipstick [Incl. O-Ring]

1332143

$54.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

SPROCKET-23T,3/4W,15 SPL,HV,PM [600]

3221099

$54.99

8

Sprocket, 25T, 3/4W [700/800]

3221102

$36.41

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut

7547202

$5.59

12

Gasket, Chaincase

5411497

$20.22

13

COVER, CHAINCASE

5631354

$114.99

14

SCREW

7512242

$2.39

15

Screw

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

Sprocket, 40T [800]

3222099

Unavailable

17

Sprocket, 41T [700]

3222101

$40.46

17

Sprocket, 39T [600]

3222108

$59.99

18

Chain, 76P, 3/4W [700/800]

3221108

$164.99

18

Chain, 74P, 3/4W [600]

3221109

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5134085

$113.32

22

Screw

7515477

$34.99
