Description

Price

-

Asm., Carburetor

1253472

Unavailable

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Washer, Packing

3130846

$4.79

5

Washer, Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber, Starter

3130831

$7.27

11

Holder, Guide, Starter

3130830

$32.37

12

Spring, Starter

3130829

$12.94

13

Asm., Plunger

3130828

$32.37

14

Valve, Piston [1.5]

3130940

$104.99

15

Needle, Jet [J8-9DGN05-57]

3131415

Unavailable

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Asm., Lever, LH

3130855

$64.75

19

Asm., Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

Screw, Air Funnel

3130825

$3.19

24

Asm., Funnel

3131439

$61.90

25

O-Ring, Air Funnel, Long

3131356

$16.17

26

Jet, Main [440]

3130144

$7.27

27

Screw, Air

3131336

Unavailable

28

Spring

3131371

Unavailable

29

Washer

3131372

$5.59

30

O-Ring

3130522

$5.65

31

Asm., Float

3131231

$134.99

32

Bolt, Drain

3131248

Unavailable

33

O-Ring, Drain Screw

3130863

$2.41

34

Screw, Float Bowl

3130824

$3.19

35

Body, Float

3130858

$119.99

36

O-Ring, Float Bowl

3130861

$12.13

37

Screw, Valve Seat

3130860

$8.79

38

Jet, Pilot [45]

3130068

$8.89

39

Jet, Starter [145]

3130769

$8.89

40

Washer

3130837

$3.19

40

Washer

3130837

$3.19

41

SPRING

3130836

$7.27

42

Adjuster

3130987

$20.22

43

Cap

3130986

$9.70

44

Screw [MAG Side]

3131010

$4.79

45

Asm., Sensor, Throttle Position [MAG Side]

3131009

$259.03

46

CAP

3130479

$14.56

47

Packing

3130835

$2.41

48

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

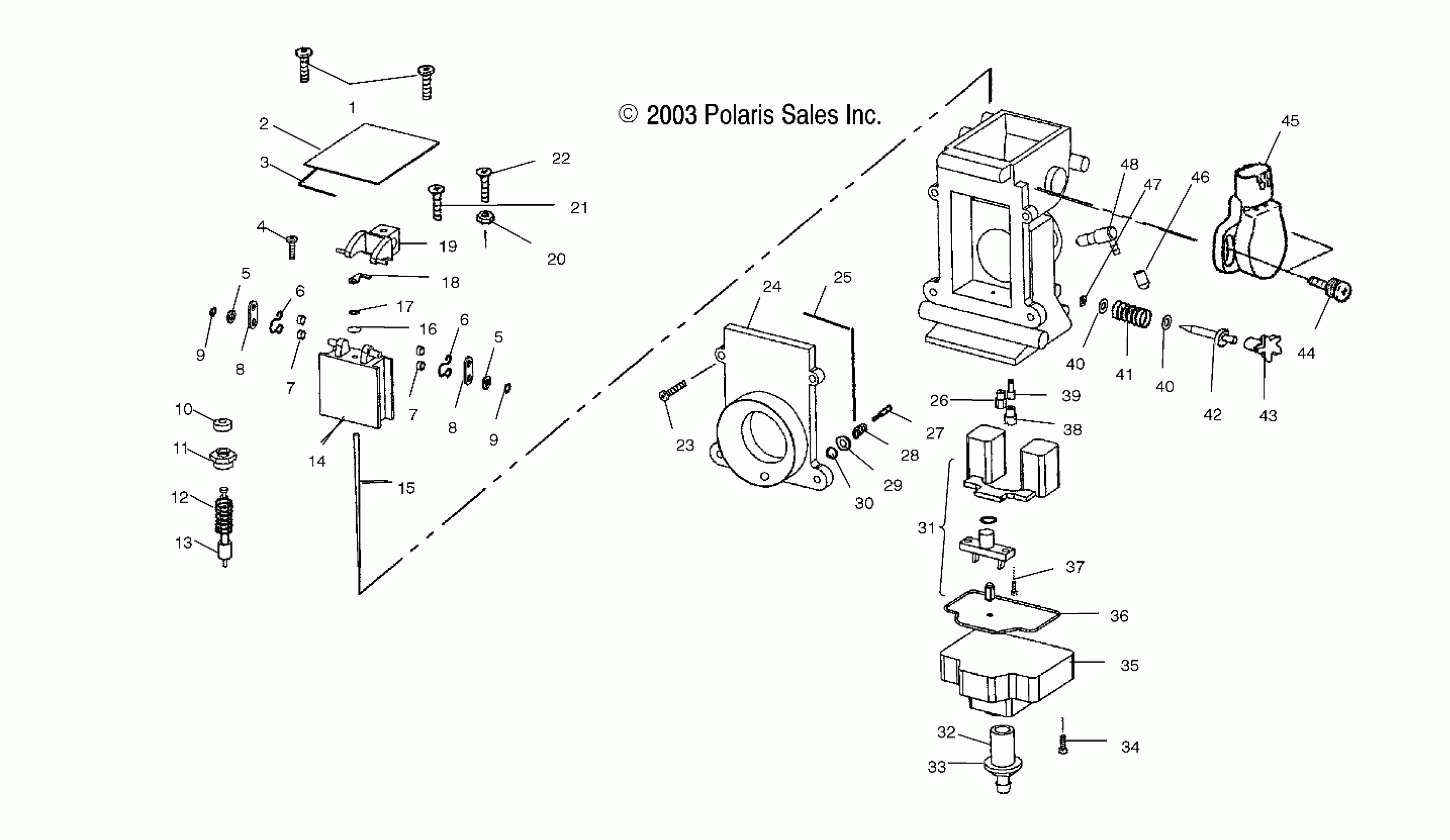

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES CARBURETOR (700) - S04NX7CS/S04NY7CS/CE (4988598859D09) Diagram

Asm., Carburetor

Screw

Cap, Top

Gasket

Screw

Washer, Packing

Washer, Packing

Clip

Clip

Ring

Ring

Plate

Plate

E-Ring

E-Ring

Cap, Rubber, Starter

Holder, Guide, Starter

Spring, Starter

Asm., Plunger

Valve, Piston [1.5]

Needle, Jet [J8-9DGN05-57]

Packing

E-Ring

Plate

Asm., Lever, LH

Asm., Lever, RH

Ring

Screw, LH

Screw, RH

Screw, Air Funnel

Asm., Funnel

O-Ring, Air Funnel, Long

Jet, Main [440]

Screw, Air

Spring

Washer

O-Ring

Asm., Float

Bolt, Drain

O-Ring, Drain Screw

Screw, Float Bowl

Body, Float

O-Ring, Float Bowl

Screw, Valve Seat

Jet, Pilot [45]

Jet, Starter [145]

Washer

Washer

SPRING

Adjuster

Cap

Screw [MAG Side]

Asm., Sensor, Throttle Position [MAG Side]

CAP

Packing

VALVE-CHECK,90,1/8"7MM BORE
