Description

Price

-

Asm., Carburetor

1253509

$649.99

1

Screw

3130951

$3.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Washer, Packing

3130846

$4.79

5

Washer, Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber, Starter

3130831

$7.27

11

Holder, Guide, Starter

3130830

$32.37

12

Spring, Starter

3130829

$12.94

13

Asm., Plunger

3130828

$32.37

14

Valve, Piston [1.5]

3130940

$104.99

15

Needle, Jet [9EFHI-60]

3131207

Unavailable

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Asm., Lever, LH

3130855

$64.75

19

Asm., Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

Screw, Air Funnel

3130825

$3.19

24

Asm., Funnel

3131335

$53.59

25

O-Ring, Air Funnel, Long

3131356

$16.17

26

Pin

3130808

Unavailable

27

Spring

3131371

Unavailable

28

Jet, Main [440]

3130144

$7.27

29

Washer

3131372

$5.59

30

O-Ring

3130522

$5.65

31

Screw, Air

3131336

Unavailable

32

Asm., Float

3130859

$94.99

33

Bolt, Drain

3131248

Unavailable

34

O-Ring, Drain Screw

3130863

$2.41

35

Screw, Float Bowl

3130824

$3.19

36

Body, Float

3130858

$119.99

37

O-Ring, Float Bowl

3130861

$12.13

38

Screw, Valve Seat

3130860

$8.79

39

Jet, Pilot [40]

3130067

$10.99

40

Jet, Starter [140]

3130768

$8.89

41

Washer

3130837

$3.19

41

Washer

3130837

$3.19

42

SPRING

3130836

$7.27

43

Adjuster

3130987

$20.22

44

Cap

3130986

$9.70

45

Screw [MAG Side]

3131010

$4.79

46

Asm., Sensor, Throttle Position [MAG Side]

3131009

$259.03

47

CAP

3130479

$14.56

48

Packing

3130835

$2.41

49

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

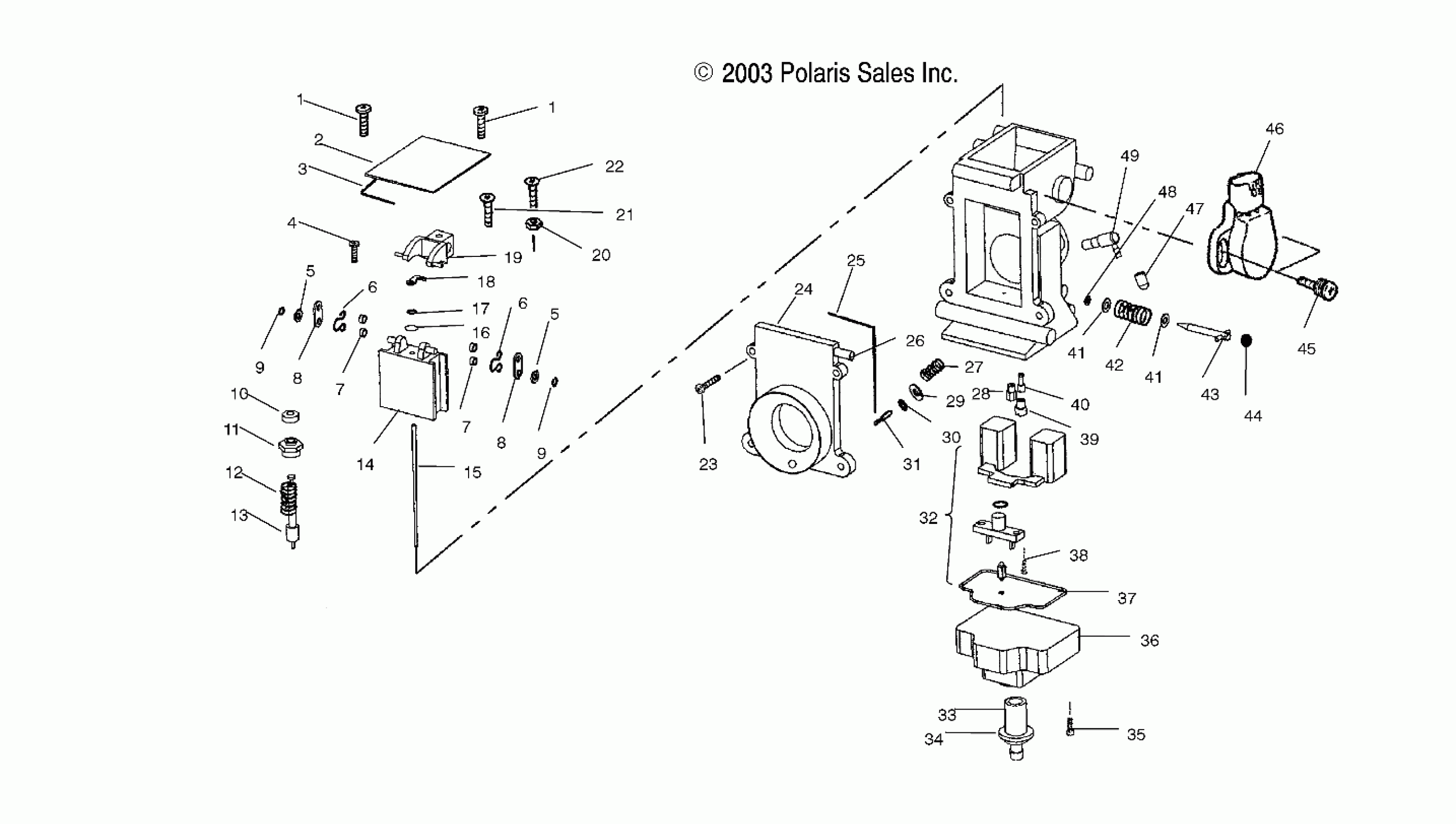

Polaris 600/700/800 PRO X/PRO X2 - S04NX6ES CARBURETOR (600) - S04NX6ES/EE/S04NY6ES/EE (4988598859D07) Diagram

Asm., Carburetor

Screw

Screw

Cap, Top

Gasket

Screw

Washer, Packing

Washer, Packing

Clip

Clip

Ring

Ring

Plate

Plate

E-Ring

E-Ring

Cap, Rubber, Starter

Holder, Guide, Starter

Spring, Starter

Asm., Plunger

Valve, Piston [1.5]

Needle, Jet [9EFHI-60]

Packing

E-Ring

Plate

Asm., Lever, LH

Asm., Lever, RH

Ring

Screw, LH

Screw, RH

Screw, Air Funnel

Asm., Funnel

O-Ring, Air Funnel, Long

Pin

Spring

Jet, Main [440]

Washer

O-Ring

Screw, Air

Asm., Float

Bolt, Drain

O-Ring, Drain Screw

Screw, Float Bowl

Body, Float

O-Ring, Float Bowl

Screw, Valve Seat

Jet, Pilot [40]

Jet, Starter [140]

Washer

Washer

SPRING

Adjuster

Cap

Screw [MAG Side]

Asm., Sensor, Throttle Position [MAG Side]

CAP

Packing

VALVE-CHECK,90,1/8"7MM BORE
