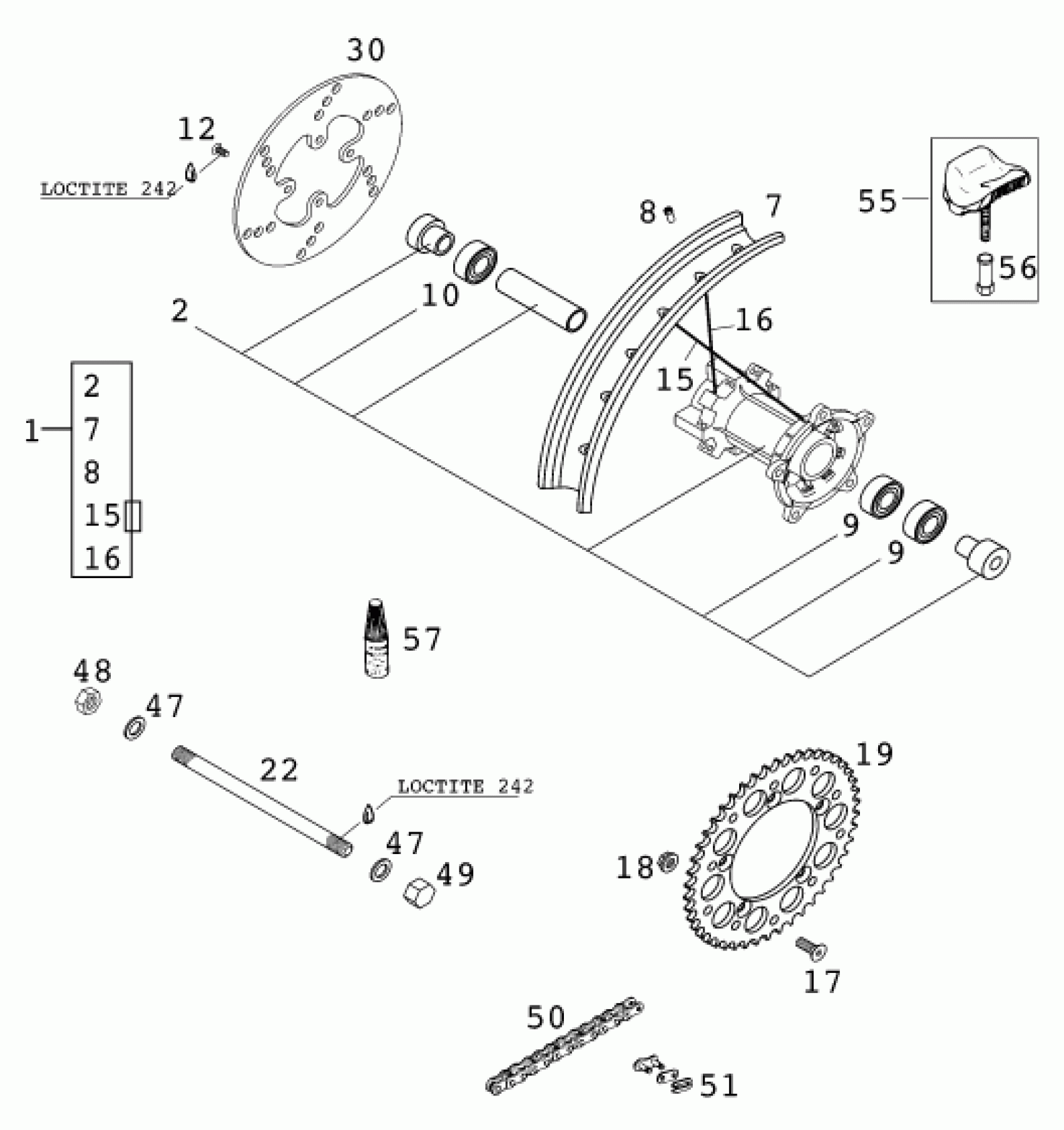

KTM 60 SX 2000 REAR WHEEL Diagram

#

Description
Price

1

REARWHEEL-SP 1,6X12'' ALU

46010001144

$461.40

2

REAR WHEEL HUB CPL.60/65 2000

46010010144

$241.22

7

RIM REAR 1,6X12'' ALU

46010070000

$114.19

8

SPOKE NIPPEL M3,5 2001

46009072100

$2.05

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

10

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

12

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

15

SPOKE 3X140X4MM-161°

46010071100

$2.05

16

SPOKE 3X132X5MM-150°

46010171100

$1.49

17

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

$3.08

18

Self locking nut M8 10.9

54310086200

$3.08

19

REAR SPROCKET 44-T

46010051044

Unavailable

19

REAR SPROCKET 46-T

46010051046

$62.64

22

AXLE REAR 213MM M12X1

46010085100

$33.00

30

BRAKE DISC REAR D=160MM

46010060000

$50.63

47

FLAT WASHER DIN0125-A13

0125120003

$1.49

48

Nut M12x1 h10 WAF19 DIN 934

0934120103

$2.05

49

NUT DIN917-M12X1

0917120103

$5.23

50

CHAIN 1/2X1/4'' 108 ROLLEN

46010065108

Unavailable

51

CHAIN LOCK 1/2X1/4''

46010066000

$3.70

55

RIM LOCK VM1 (1,60'')

51009100100

$17.57

56

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

57

LOCTITE 243 BLUE 5 ML

6899785

$28.04
