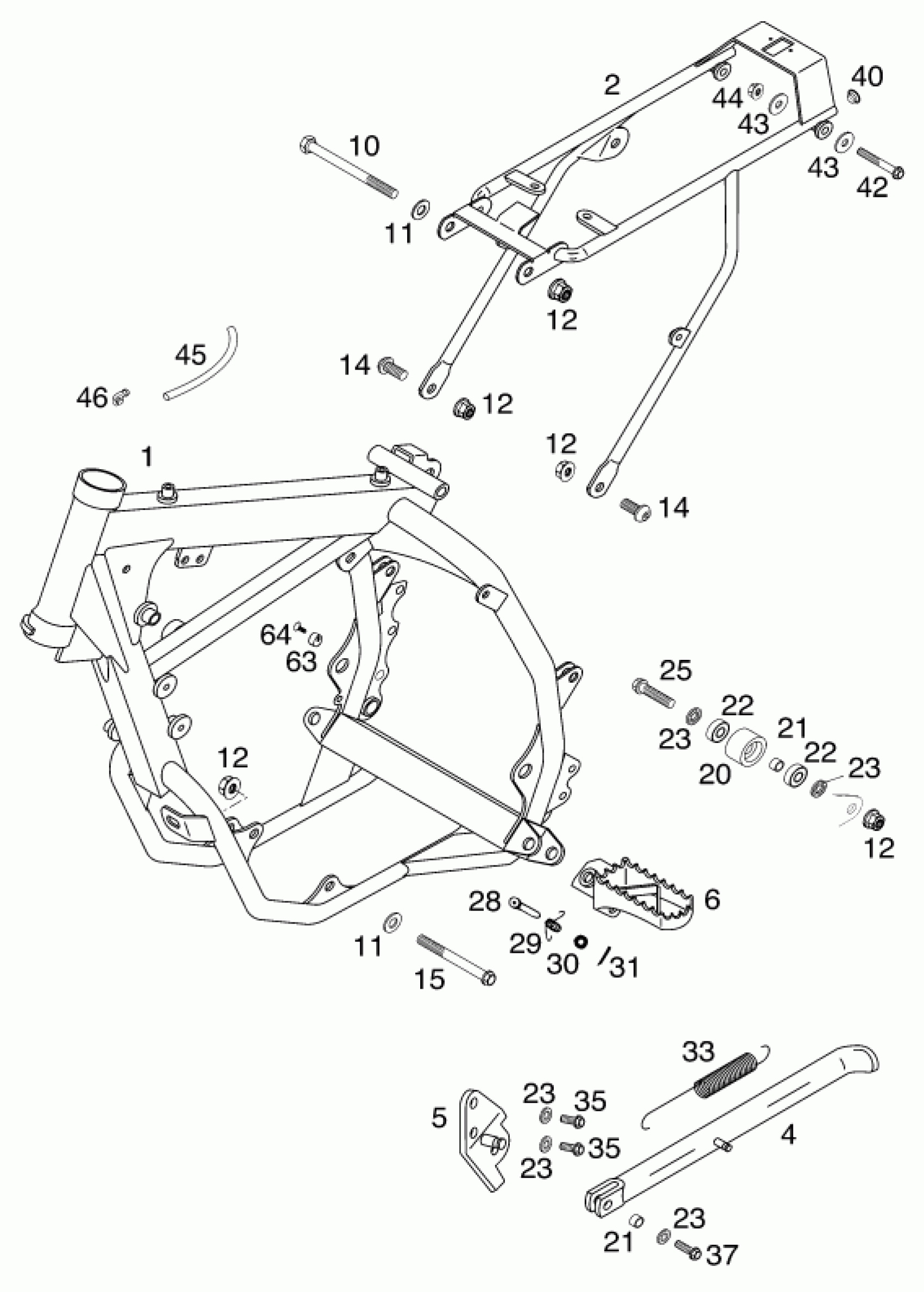

KTM 60 SX 2000 FRAME Diagram
#
Description
Price
0
FOOT REST R/S SILVER '98
5460314000090
$34.59
1
*FRAME SILVER 60/65 SX 2000
46003001200
Unavailable
2
SUB FRAME 60/65 SX '98
46003002000
Unavailable
4
SIDE STAND L=315MM 60/65 SX
46003023000
Unavailable
5
SIDE STAND BRACKET 60/65 SX'99
46003024100
Unavailable
6
FOOT REST L/S SILVER
5460304000090
$31.12
10
HH SCREW DIN0931-M 8X100
0931081003
Unavailable
11
washer DIN 125 A -8.4
0125080003
$1.49
12
Self locking nut M8 10.9
54310086200
$3.08
14
AH OVAL H.SCREW DIN0170-M 8X20
0107080203
$2.05
15
HH SCREW DIN0931-M 8X80
0931080803
$1.49
20
CHAIN ROLL D=30MM
50203053000
$6.72
21
BUSHING 8.2 X 12 X 6
74003021000
$3.08
22
Grooved ball bearing 608 2RS C
0625006087
$21.40
23
LOCK WASHER 8MM
36003014000
$2.05
25
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
28
BOLT FOR FOOTREST 9,8 X 50
54603044000
$12.43
29
FOOTREST SPRING L/S & R/S
54603041000
$5.23
30
washer DIN 125 A 10.5
0125100003
$2.05
31
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
33
SIDESTAND SPRING LONG
51003021000
$7.00
35
HH COLLAR SCREW M 8X16 WS=10
0015080163
$4.11
37
HH COLLAR SCREW M 8X20 WS=10
0015080203
$2.05
40
Plug SFL16
50210086000
$3.08
42
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
43
Washer DIN9021-A 6.4
0021060003
$2.05
44
Self locking nut M6 - 10
56509064100
$2.05
45
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
46
ANGLE PIECE '97
50303089000
$5.23
62
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
$1.49
63
BRAKE LEVER STOP '93
58303063000
$5.98
64
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
