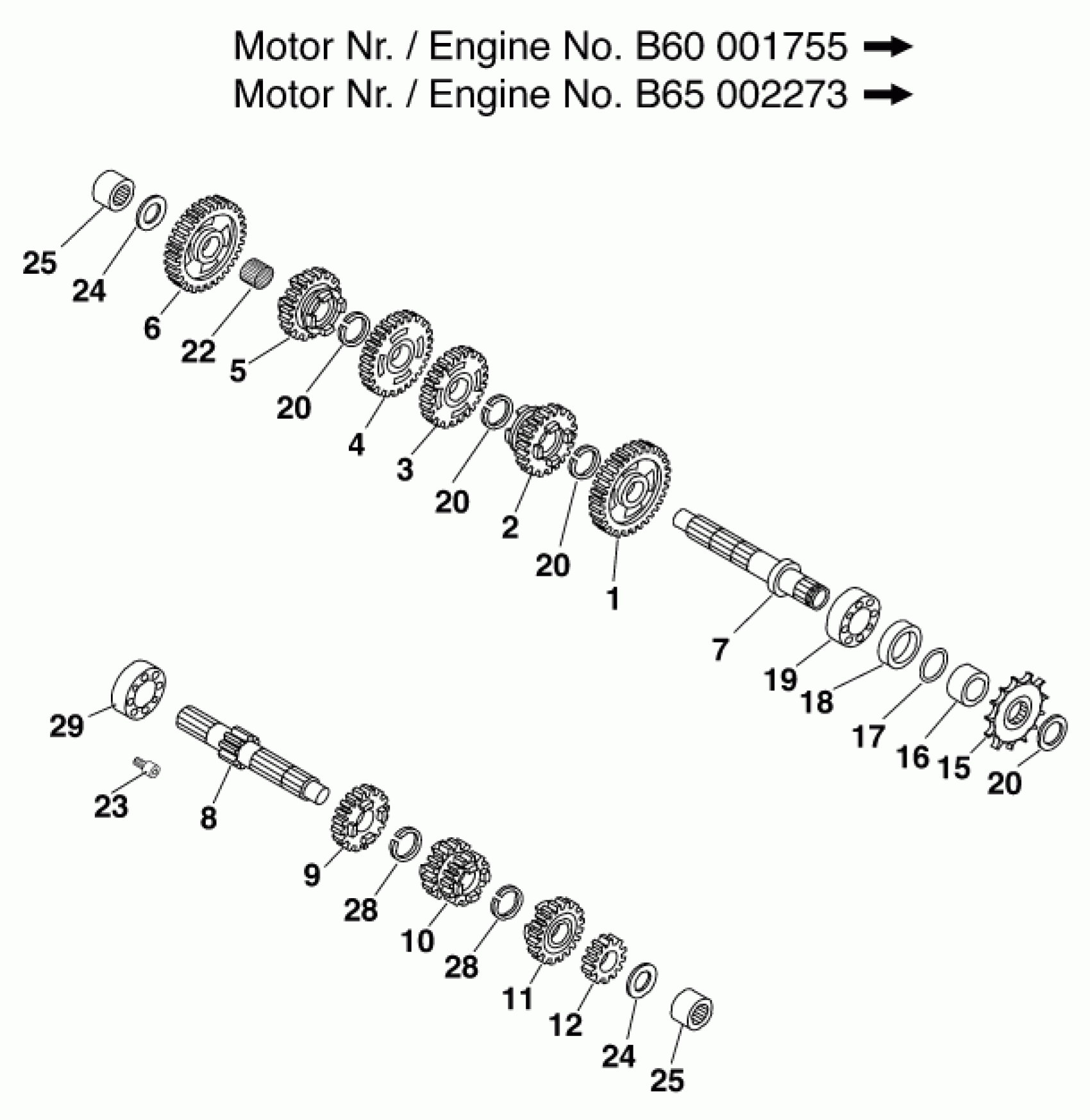

KTM 60 SX <1999> TRANSMISSION Diagram

#

Description
Price

1

IDLER GEAR 2ND GEAR 34-T

46033011000

Unavailable

2

SLIDING GEAR 6TH GEAR 26-T

46033012000

Unavailable

3

IDLER GEAR 3RD GEAR 31-T

46033013000

Unavailable

4

IDLER GEAR 4TH GEAR 30-T

46033014000

Unavailable

5

SLIDING GEAR 5TH GEAR 28-T

46033015000

Unavailable

6

IDLER GEAR 1ST GEAR 37-Z '00

46033016100

Unavailable

7

COUNTER SHAFT

46033002000

Unavailable

8

MAIN SHAFT 13-T

46033001000

Unavailable

9

IDLER GEAR 5TH 23-T

46033007000

Unavailable

10

SLIDING GEAR 3RD/4TH - 21/18

46033008000

Unavailable

11

IDLER GEAR 6TH GEAR 24-T

46033009000

Unavailable

12

SOLID GEAR 2ND GEAR 16-T

46033010000

Unavailable

15

SPROCKET 12-T 60/65 '98

46033029012

Unavailable

15

SPROCKET 13-T 60/65

46033029013

Unavailable

16

DISTANCE BUSHING SPROCKET

46033030000

Unavailable

17

O-RING 18,77X1,78

46033031000

Unavailable

18

SHAFT SEAL RING 26X35X6

0760263560

Unavailable

19

Grooved ball bearing 20X42X12

46033028000

Unavailable

20

CIRCLIP AS20X1,75

49033091000

Unavailable

22

NEEDLE BEARING 14X18X8

46033020000

Unavailable

23

SPECIAL SCREW M6X10

46033023000

Unavailable

24

STOP DISK 12,1X25X1

49033013000

Unavailable

25

NEEDLE BEARING NK12 12X19X12

46033026000

Unavailable

28

CIRCLIP WS=17X1,2

46033022000

Unavailable

29

GROOVED BALL BEAR.SKF98203/C3

46033025000

Unavailable
