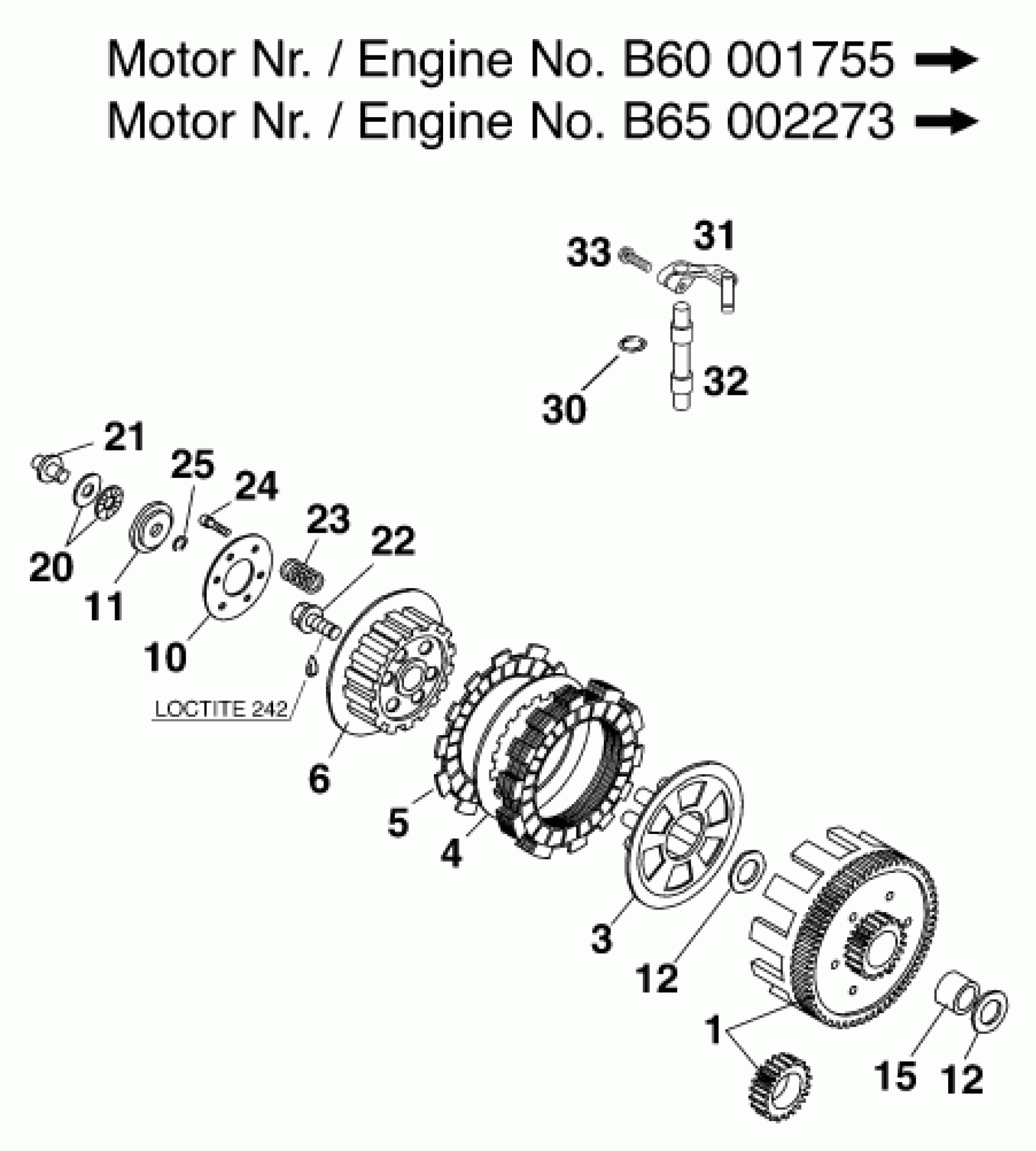

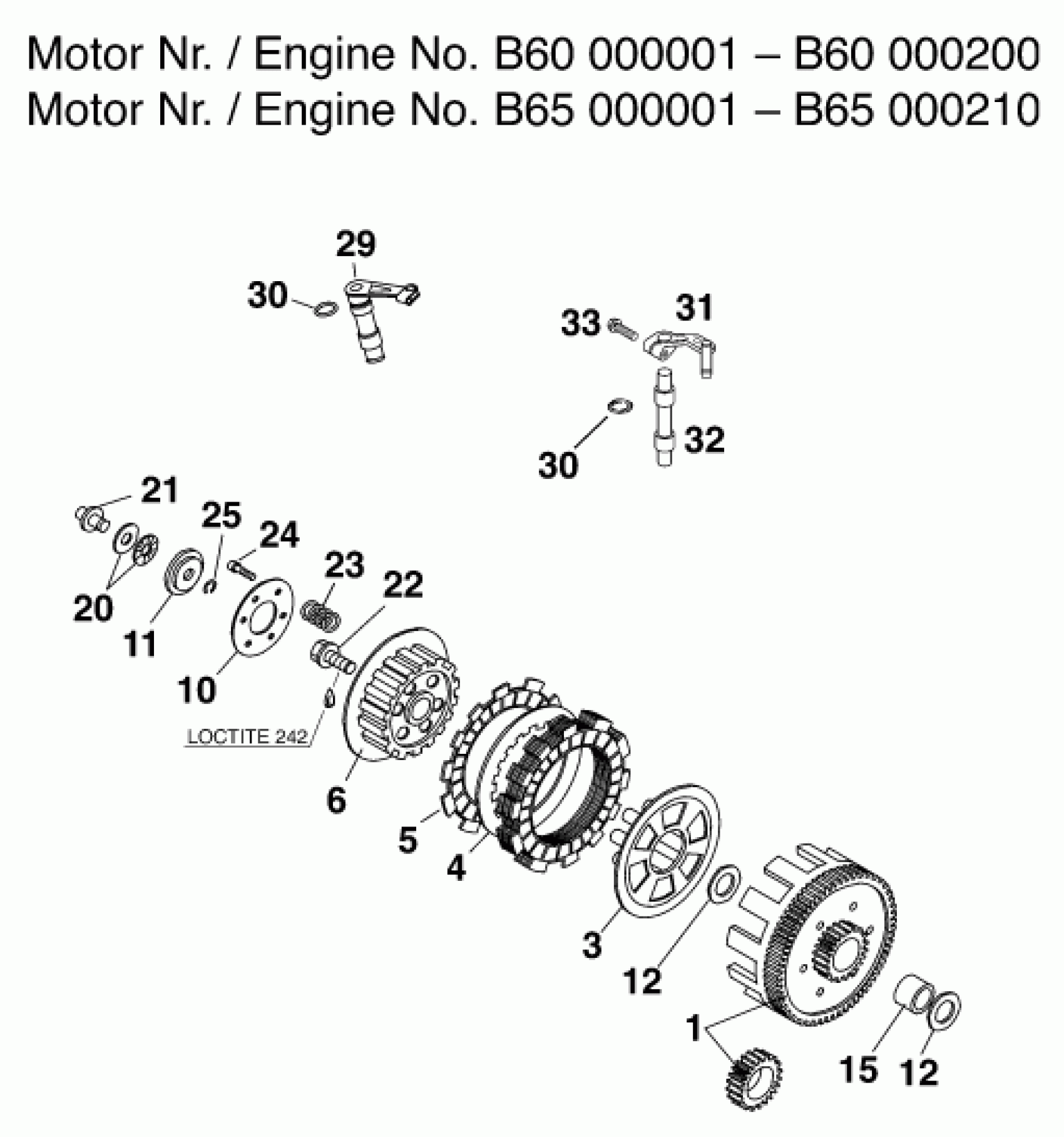

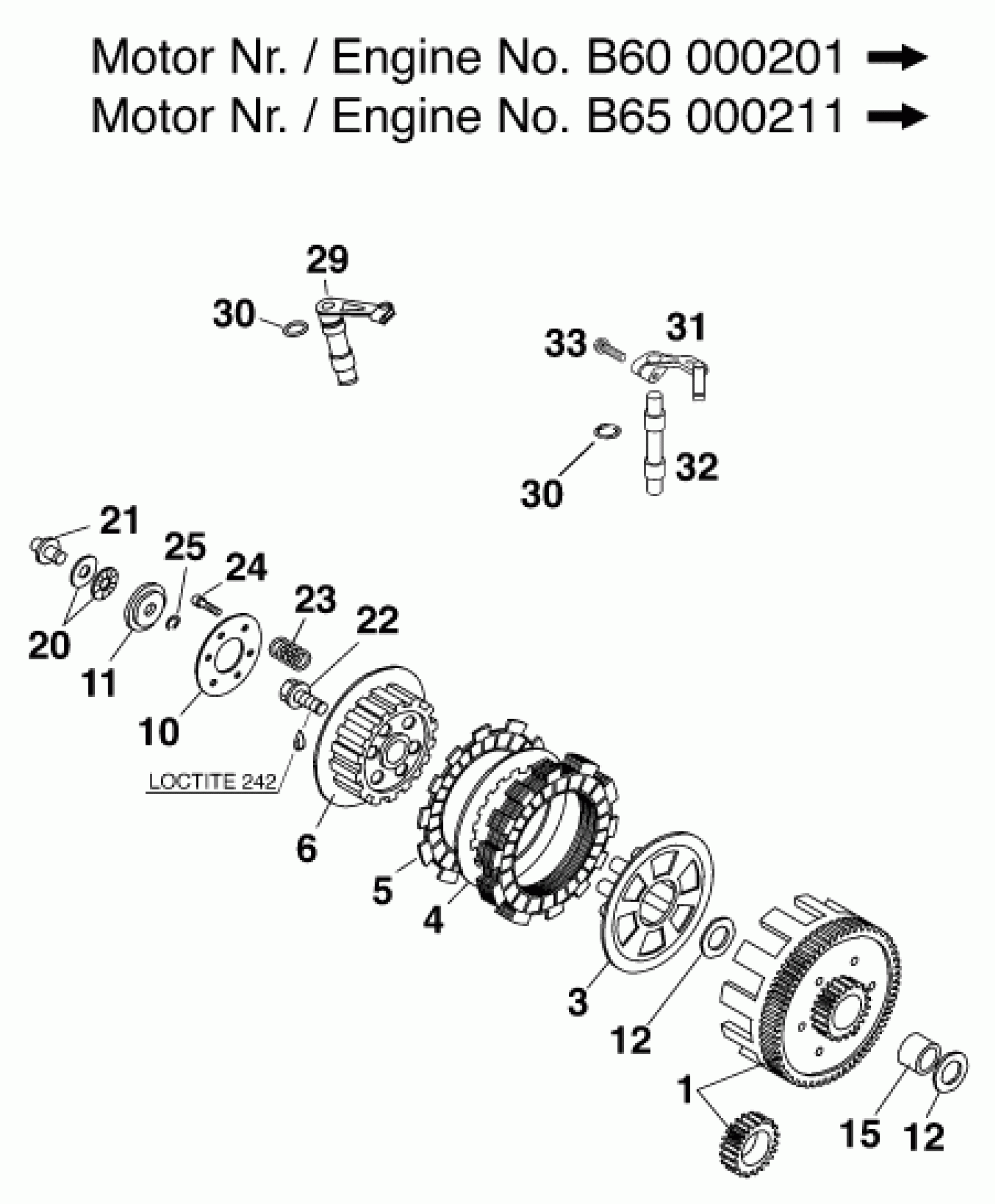

KTM 60 SX <1999> CLUTCH Diagram
#
Description
Price
1
PRIM.DRIVE W.CLUTCH HUB 23:75
46032000044
Unavailable
3
PRESSURE CAP 60/65 CCM '98
46032003000
Unavailable
4
INTERMEDIATE DISK STEEL
46032010000
Unavailable
5
LINING DISK
46032011000
Unavailable
6
INNER CLUTCH HUB 60/65 CCM '98
46032002000
Unavailable
10
SPRING RETAINER 25X63,5X2
46032006000
Unavailable
11
CARRIER FOR AXIAL BEARING
46032008000
Unavailable
12
STOP DISK 17,2X30X1,5
49032012000
Unavailable
15
INNER RING 22X17X20,5
46032015000
Unavailable
20
AXIAL BEARING 6X19X2
46032056000
Unavailable
21
PRESSURE PIECE
46032054000
Unavailable
22
HH COLLAR SCREW M10X20
46032019000
Unavailable
23
CLUTCH SPRING
46032005000
Unavailable
24
FLAT H.SCREW DIN7991-M6X20
0991060203
Unavailable
25
CIRCLIP DIN0471-6X0,7
0471006007
Unavailable
29
* CLUT.RELEASE SH. KPL.60/65
46032049000
Unavailable
30
O-RING 7,66X1,78
46032051000
Unavailable
31
* CLUTCH RELEASE LEVER CPL. 99
46032048000
Unavailable
32
*DISENGAGING SHAFT LOOSE '99
46032049100
Unavailable
33
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
