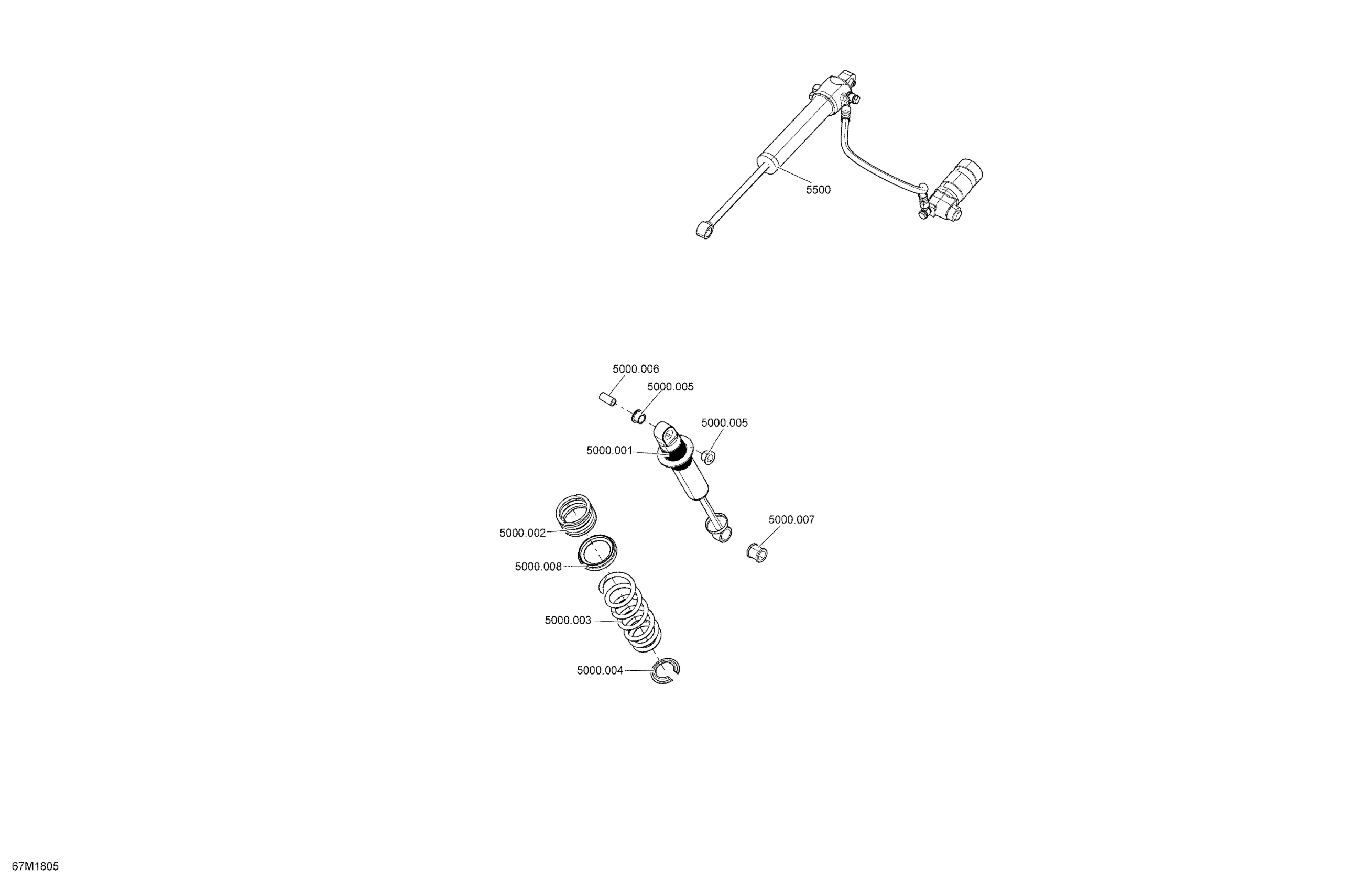

Ski-Doo 6- MXZ 1200 4-TEC, 2018 08- Rear Shocks MXZ - 1200 4-TEC - Package X QAS Diagram

Description

Price

5000.001

Central Shock

503193283

$434.49

5000.002

Black, Spring (51mm) Short

503193837

$67.99

5000.003

Deep Black, Spring (189mm) Long

503193160

$90.99

5000.004

Spring Stopper

503194270

$19.99

5000.005

Urethane Bushing

503189117

$8.19

5000.006

Bushing | Includes 240d to 240d1

503189282

$4.34

5000.007

Bushing

503189271

$13.99

5000.008

Spring Spacer

503191281

$8.89

5500

REAR SHOCK - Call your local BRP dealership | Includes 5500 to 5500,009

503194135

Unavailable

5500.001

O-Ring

415093807

$35.99

5500.002

Piston Ring | Not Shown

415093806

$16.86

5500.003

Air Valve

505070398

$20.99

5500.004

Screw | Not Shown

505070399

$4.12

5500.005

O-Ring

505070400

$4.54

5500.006

O-Ring

415093804

$4.54

5500.007

Bolt

415093810

$16.86

5500.008

O-Ring

415038700

$42.99

5500.009

Base Valve

415130165

$78.99
