Description

Price

1

Fixed Flange Ass'y

417224091

$309.99

2

Flange Slide Ass'y

417224044

$294.99

2a

Bushing

417222758

$22.49

2b

Circlip

293370037

$3.19

3

Ramp 749

417224103

$38.99

4

Stopper Washer

417223660

$3.17

5

Ramp Axle

417223694

$11.05

6

Nut-Stop Elastic DIN.985

417224336

$0.87

7

Spring Cover Ass'y

417223650

$44.99

7a

Circlip

293370065

$0.98

8

Seat Spring

417223752

$15.27

9

Clutch Spring

417224084

$17.39

10

Torx Screw M6 X 30

250000580

$6.08

11

Governor Cup Ass'y

417223865

$274.99

12

Roller

417224081

$20.49

13

Roller Axle

417223257

$6.99

14

O-Ring

293300185

$0.98

15

Slider Shoe

417223919

$6.83

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt

417300432

$41.49

40

Decal English

516005503

Unavailable

101

Fix Flange Ass'y | Includes 101 to 101e

417127362

$1.00

101a

Pulley Roller

417127016

$24.49

101b

Pivot Stud

417127294

$14.49

101c

Lock Washer 8 mm

250200009

$2.11

101e

Spring Pin M3 X 30

250400063

$2.11

102

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

102a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

102c

Circlip

293370049

$4.99

103

Cam Ass'y | Includes 100c to 100c3

417127476

$138.49

103a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

103c

Circlip

293370049

$4.99

106

Beige, Spring

417127242

$21.99

108

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

110

Socket Screw M5 X 25

205052544

$1.68

115

Flat Washer M5

234051410

$0.53

118

Elastic Stop Nut M5

232551414

$0.87

120

Washer

417127155

$8.26

130

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300382

$90.99

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300467

$16.49

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

CVT AIR DUCT - Call your local BRP dealership | Package LE

417300475

Unavailable

370

Pop Rivet 3/16"

293150103

$0.55

400

Front Support

417300430

$14.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

420

Flat Washer

517225900

$0.18

450

Reinforcement Plate

417300421

$4.39

460

Avex Rivet

390909100

$0.30

500

BELT GUARD BRACKET - Call your local BRP dealership

417300361

Unavailable

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

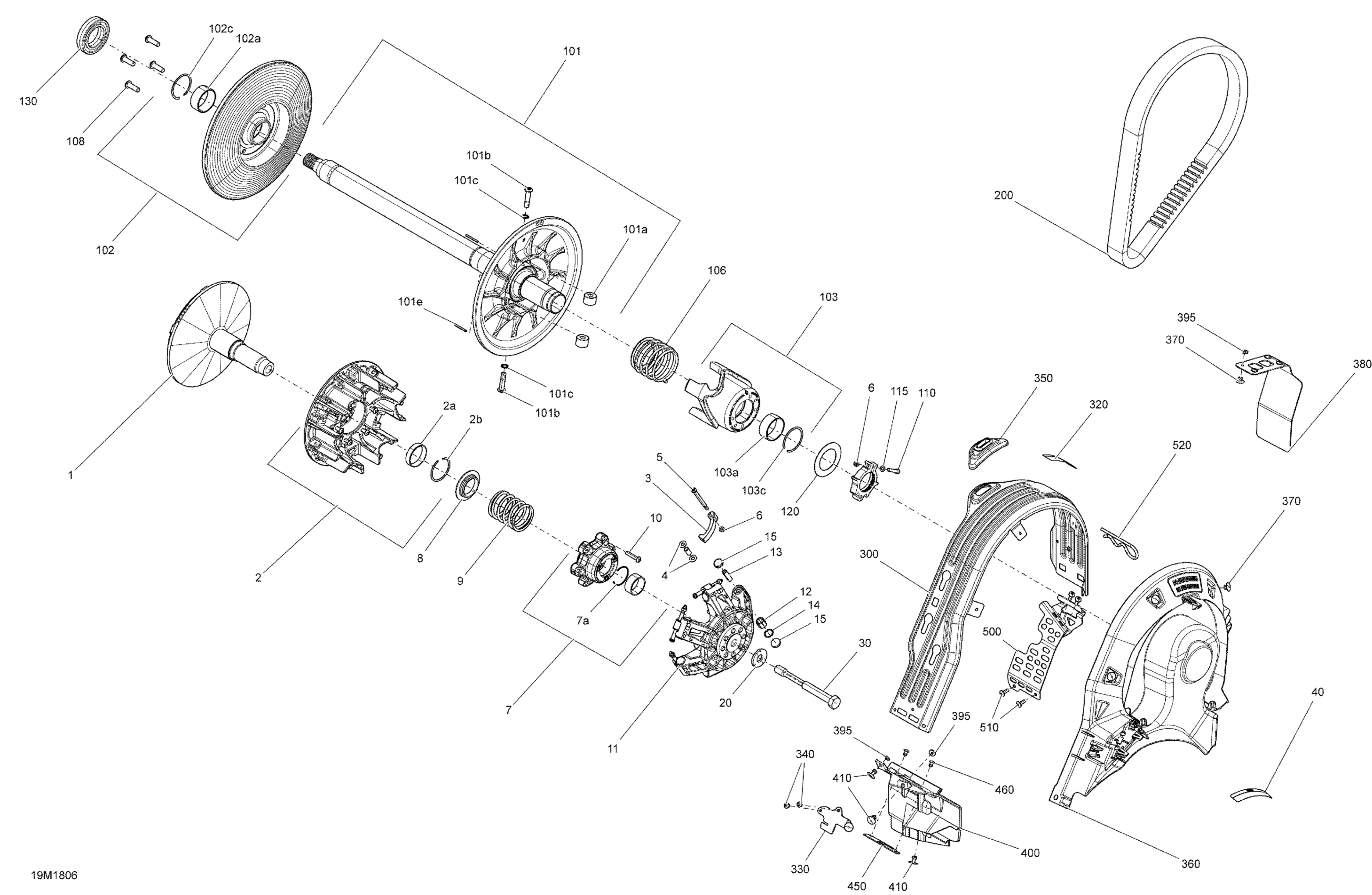

Ski-Doo 6- MXZ 1200 4-TEC, 2018 05- Pulley MXZ - 1200 4TEC Diagram

Fixed Flange Ass'y

Flange Slide Ass'y

Bushing

Circlip

Ramp 749

Stopper Washer

Ramp Axle

Nut-Stop Elastic DIN.985

Spring Cover Ass'y

Circlip

Seat Spring

Clutch Spring

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Conical Spring Washer M14

Pulley Drive Bolt

Decal English

Fix Flange Ass'y | Includes 101 to 101e

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Beige, Spring

Button Head Torx Screw M8 X 25 S.Gr

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Safety Belt Guard Decal

Front Bracket

Avex Rivet

Guide

CVT AIR DUCT - Call your local BRP dealership | Package LE

Pop Rivet 3/16"

Front Support

Pop Rivet 3/16" | DS 650 X

Flat Washer

Reinforcement Plate

Avex Rivet

BELT GUARD BRACKET - Call your local BRP dealership

Torx Screw M5 X 14

Hair Pin
