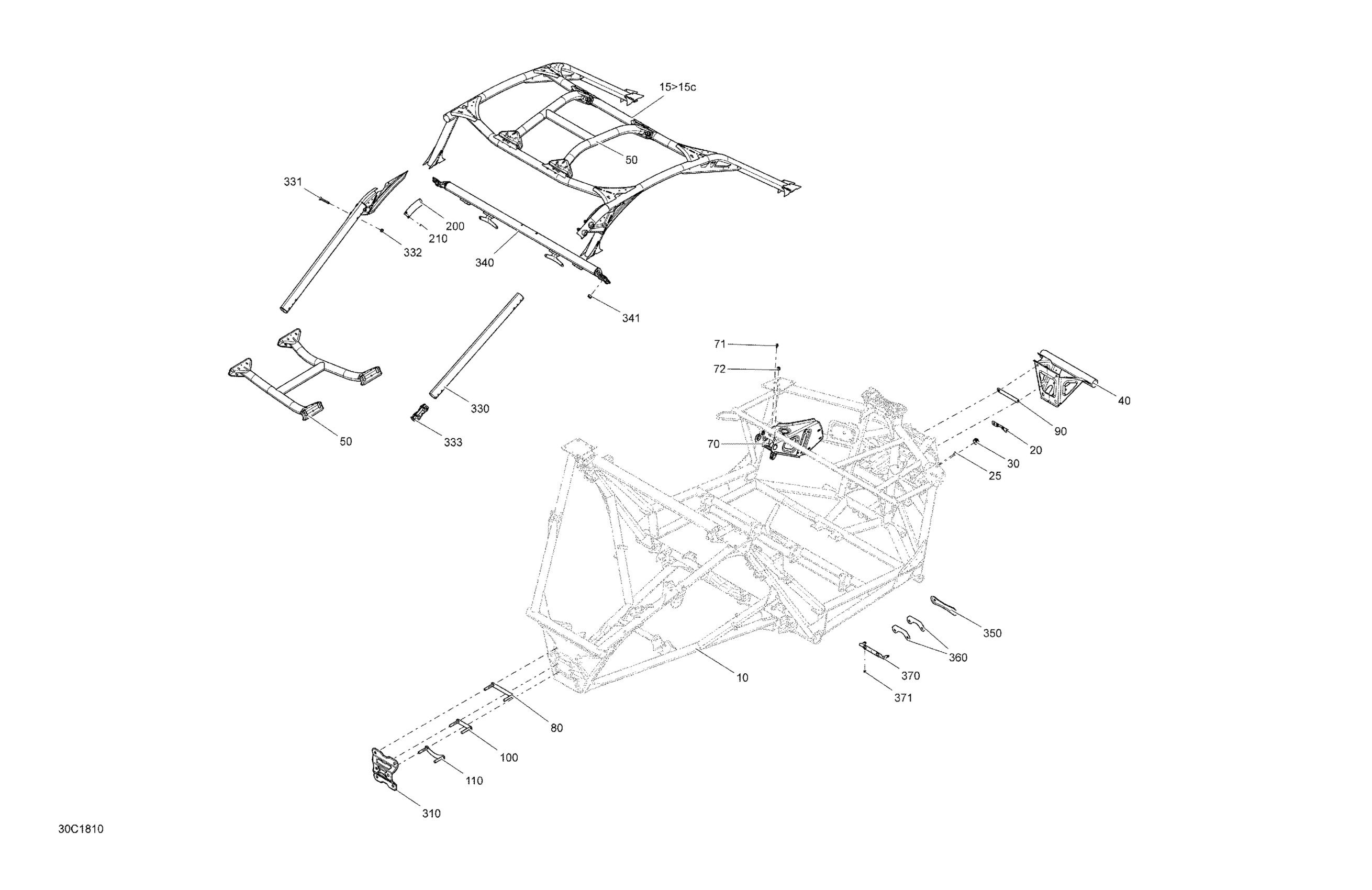

Can-Am Maverick X3 Turbo R - XRS DPS - with Smart-Lok, 2018 Frame Maverick X3 Non MAX Diagram

#

Description
Price

10>15c

Black Frame Kit | Except Model Gold Built in 2017

715004465

Unavailable

10>15c

Red Frame Kit | Model Gold Built in 2017

715006026

Unavailable

10>15c

Blue Frame | Blue Frame Model

715005027

Unavailable

10>15c

Yellow Frame Kit | Yellow Frame Model

715005029

Unavailable

15>15c

Front Black Cage Kit | Except Model Gold Built in 2017

715004463

Unavailable

15>15c

Front Red Cage Kit | Model Gold Built in 2017

715004464

Unavailable

15>15c

Front Blue Cage Kit | With Blue Cab

715005034

Unavailable

15>15c

Front Yellow Cage Kit | With Yellow Cab

715005036

Unavailable

15a

Torx Screw K50 X 16

250000720

$1.39

15b

Hex. Flange Screw S.Grip M12 X 30

207523036

$6.77

15c

Hex. Flange Elastic Nut M12

233221414

$5.10

20

Front Plate

705207424

$18.43

25

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40

Deep Black, Front Bumper | Except Model Gold

705210400

$101.51

40

PAINTED FRONT BUMPER - Call your local BRP dealership | Model Gold

705205747

$99.97

50

Painted Added Cage | Model Gold Built in 2016

705206771

$91.99

50

Added Cage | Except Model Gold Built in 2017

705206774

$91.99

70

DPS Support

705206924

$66.12

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Flange Elastic Nut M8

233281414

$1.14

80

Rear Upper Plate

705206852

$19.20

90

Stifner Plate

705206877

$28.43

100

Rear Central Plate

705211558

$17.66

110

Rear Plate

705206854

$19.20

200

Black, LH Link Plate | Except Model Gold

705205926

$23.82

200

PLATE_CONNECTING B-101 PAINTED - Call your local BRP dealership | Model Gold

705205929

Unavailable

210

BLACK DART - Call your local BRP dealership

293730076

$0.91

310

Rear Plate

705205750

$23.82

330

Deep Black, Rear Pillar

705210066

$24.99

330

Red- Rear Mount | Model Gold

705205752

$23.49

331

Torx Truss M8 X 65

250000901

$1.56

332

Elastic Flange Nut M8

250100025

$1.25

333

Sleeve

705210648

$9.29

340

Belt Bar

705205268

$119.97

341

Elastic Stop Nut M12

232521416

$1.40

350

Upper Link Arm

705205294

$10.98

360

Retaining Plate

705210249

$4.86

370

Support

706203122

$11.00

371

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

380

Front Upper Plate

705206069

$13.49

390

Rear Upper Plate | Model XRSDPS

705206511

$13.49

390

Rear Upper Plate | Model XRSDPS

705206511

$13.49
