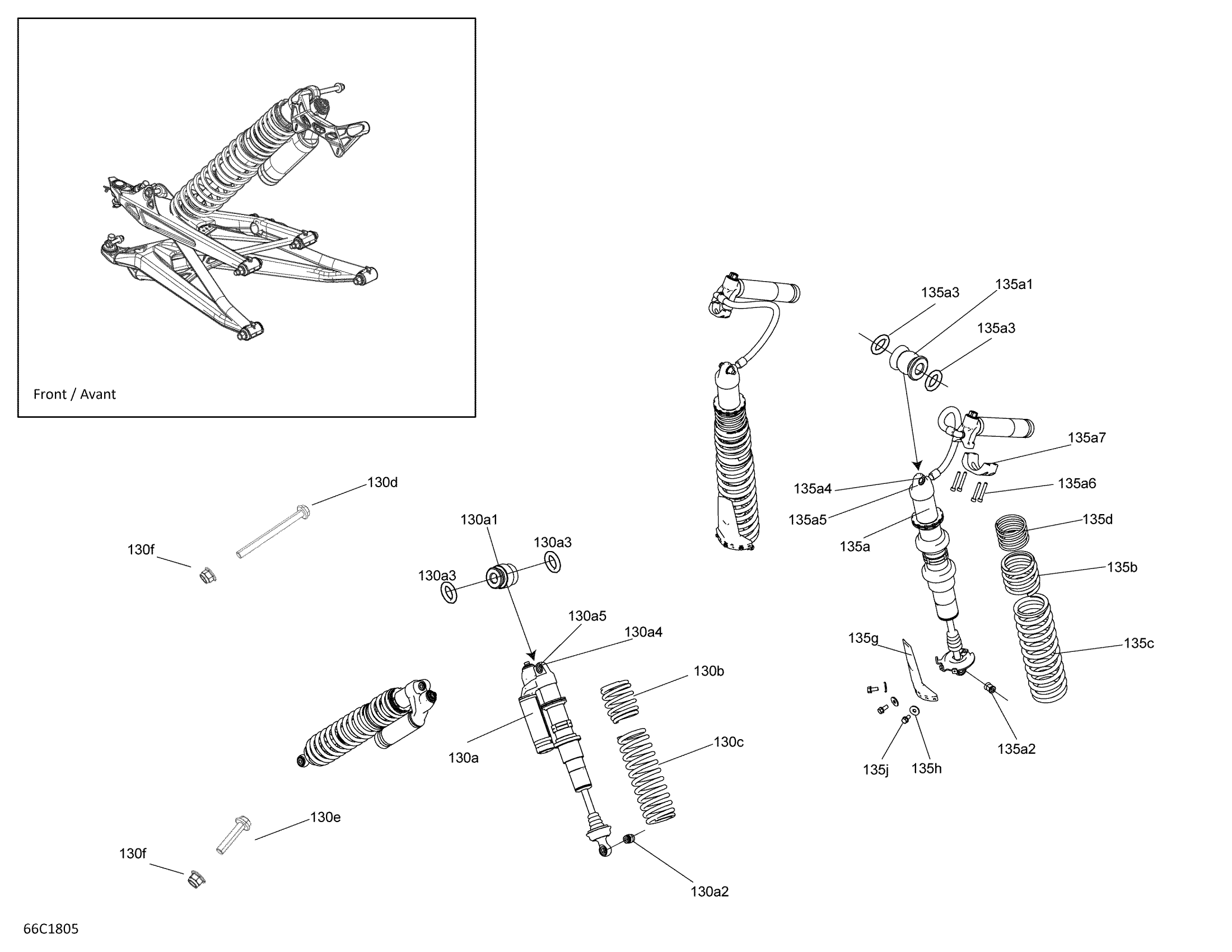

Can-Am Maverick X3 Turbo R - XRS DPS - with Smart-Lok, 2018 Shocks Maverick X3 - Turbo R - Smart-Lok Diagram

Description

Price

130a

LH Front Shock | Model X3 Xrs Gold

706202380

$1,179.99

130a

FRONT SHOCK - Call your local BRP dealership | Model X3 Xrs Gold

706202383

Unavailable

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130a4

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130b

Front Spring | Model X3 Xrs Gold

706203033

$96.89

130c

Red, Front Spring | Model X3 Xrs Gold

706202381

$119.97

130d

Flange Screw M12 X 145

250000861

$5.47

130e

Flange Screw M12 X 60

250000857

$6.08

130f

Elastic Flange Nut M12

233221466

$2.15

135a

SHOCK - Call your local BRP dealership | Model X3 Xrs Gold

706002234

Unavailable

135a1

Spherical Bearing

715900337

$80.74

135a2

Ball Joint

706004078

$45.12

135a3

O-Ring Bushing

715900338

$10.98

135a4

Circlip

715900480

$11.06

135a5

Reducer

715900481

$27.66

135a6

Screw M6 X 35

715900521

$5.52

135a7

Réservoir Clamp

715900522

$36.89

135b

Red, Rear Spring | Model X3 Xrs Gold

706002236

$138.43

135c

Red, Rear Spring | Model X3 Xrs Gold

706002235

$161.51

135d

Rear Spring | Can-Am Red

706003090

$138.43

135g

Protector

706202215

$9.23

135h

Washer M5

250200025

$0.61

135j

Hex Flange Screw M5 X 11

210251150

$1.74
