Description

Price

1

Main Harness

515178130

$919.99

2

Tubing 6 Mm 3000Mm Long

219704425

$13.99

2

Was 409901700 Tubing (9 mm)

219704399

$86.99

2

Tubing 10 MM 1000MM Long

219704407

$2.89

2

Was 409901800 Tubing (13 mm)

219704400

$14.99

2

Tubing 16 Mm 1000Mm Long

219704408

$7.69

2

Was 409901600 Tubing 19mm

219704398

$97.99

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$16.49

3

Not Available As Spare Part - Friction Washer

Unavailable

1340

Open Barrel

278000992

$2.29

AT

Female Terminal Housing

515176890

$13.49

AT

Female Terminal

710001164

$9.09

AT

Wire Seal

710001163

$7.89

BM1

Open Barrel

278000992

$2.29

BM2

Open Barrel

278000992

$2.29

CD

Female Terminal Housing, 2 Circuits

278001673

$24.49

CD

Female Terminal

515175567

$7.89

CD

Female Lock, 2 Circuits

278001671

$3.69

CM

Female Housing, 3 Circuits

409209600

$36.99

CM

Female Terminal

710001340

$5.99

CM

Wire Seal

515176621

$7.69

CM

Tie Wrap 142 mm

293750002

$1.49

COMP

Female Housing, 3 Circuits

409209600

$36.99

COMP

Female Terminal

710001340

$5.99

COMP

Wire Seal

515176621

$7.69

CP

Male Terminal Housing, 2 Circuits

515175665

$9.49

CP

Male Terminal

278000631

$4.49

CP

Male Lock, 2 Circuits

409207500

$3.29

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$31.99

CTek

Male Lock, 2 Circuits

278001672

$3.59

CTek

Male Terminal

515175568

$9.29

CV

Female Housing, 24 Circuits

515175801

$9.79

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$3.09

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$1.49

CV

Plug

515175812

$2.29

CV

Female Housing

710000399

$16.99

DI

Male Housing, 6 Circuits

515175673

$15.99

DI

Female Terminal

278000632

$2.19

DI

Sealing Cap

293000052

$3.29

DI

Male Wedge, 6 Circuits

515175678

$5.49

DT

Male Housing, 2 Circuits

278001005

$19.49

DT

Female Terminal

278000998

$4.49

DT

Wire Seal

278000999

$3.29

EI

Male Terminal Housing, 2 Circuits

515175665

$9.49

EI

Male Terminal

278000631

$4.49

EI

Male Lock, 2 Circuits

409207500

$3.29

ER1

Female Terminal Housing, 2 Circuits

415128500

$7.79

ER1

Female Terminal

278000998

$4.49

ER1

Seal

415128501

$1.89

ERF

Housing

710000568

$11.49

ERF

Male Terminal

515176164

$7.29

ERF

Clip

710000992

$4.39

ERF

Wire Seal

515176621

$7.69

F

Little Fuse, 5 Amperes

710000742

$8.99

F

Little Fuse, 7.5 Amperes

710000743

$8.69

F

Little Fuse, 10 Amperes

710000744

$8.99

F

Little Fuse, 15 Ampere

710000745

$8.69

F

Little Fuse, 20 Amperes

710000746

$8.69

F

Little Fuse, 30 Amperes

710000747

$8.69

FB

Fuse Box Cover

515177451

$13.99

FB

Case Ass'y with seal, 24 positions

278002824

$36.99

FB

Wire Seal

278000218

$4.49

FB

Wire Seal

278001065

$7.89

FB

Wire Seal

710000048

$7.89

FB

Not Available As Spare Part - Friction Washer

Unavailable

FB

Female Terminal

278002578

$1.49

FB

Female Terminal

710000890

$4.69

FB

Female Terminal

710000918

$7.89

FAN

Female Housing, 2 Circuits

409209500

$15.49

FAN

Female Terminal

278001014

$3.39

FAN

Wire Seal

515176621

$7.69

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.79

GPS1

Female Terminal

409010100

$5.69

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.79

GPS2

Female Terminal

409010100

$5.69

IGM

Female Housing, 3 Circuits

409209600

$36.99

IGM

Female Terminal

278001014

$3.39

IGM

Wire Seal

515176621

$7.69

IGP

Female Housing, 3 Circuits

409209600

$36.99

IGP

Female Terminal

278001014

$3.39

IGP

Wire Seal

515176621

$7.69

INM

Female Housing, 2 Circuits

409209500

$15.49

INM

Female Terminal

278001014

$3.39

INM

Wire Seal

515176621

$7.69

INM

Tie Wrap 94 mm | 4X4

293750001

$1.49

INP

Female Housing, 2 Circuits

409209500

$15.49

INP

Female Terminal

278001014

$3.39

INP

Wire Seal

515176621

$7.69

INP

Tie Wrap 94 mm | 4X4

293750001

$1.49

J1A

Female Terminal Housing, 34 Circuits

515176342

$21.99

J1A

Female Terminal

515176348

$7.19

J1A

Female Terminal

515176541

$4.69

J1A

Plug

515176345

$21.99

J1B

Female Terminal Housing, 26 Circuits

515176341

$31.99

J1B

Female Terminal

515176348

$7.19

J1B

Female Terminal

515176541

$4.69

J1B

Plug

515176345

$21.99

J2

Female Terminal Housing, 16 Circuits

515176340

$16.49

J2

FEMALE TERMINAL - Call your local BRP dealership

415128499

Unavailable

J2

Female Terminal

278000998

$4.49

J2

Seal

415128501

$1.89

MO

Male Terminal Housing, 6 Circuits

515175668

$16.99

MO

Male Terminal

278000631

$4.49

MO

Female Lock, 6 Circuits

278000735

$3.29

NE

Male Terminal Housing, 2 Circuits

515175654

$9.29

NE

Male Terminal

515175232

$1.59

NH

Male Connector, 2 Circuits

278001113

$17.49

NH

Female Terminal

710001119

$5.49

NV

Housing

710000568

$11.49

NV

Male Terminal

515176164

$7.29

NV

Clip

710000992

$4.39

NV

Wire Seal

515176621

$7.69

PA

Female Housing

515176908

$14.49

PA

Terminal

515176909

$2.29

PB

Female Housing

515176908

$14.49

PB

Terminal

515176909

$2.29

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.79

PC1

Female Terminal

409010100

$5.69

PC2

Open Barrel

278000992

$2.29

PE

Female Housing, 2 Circuits

409209500

$15.49

PE

Female Terminal

278001014

$3.39

PE

Wire Seal

515176621

$7.69

PH

Male Connector, 2 Circuits

278001113

$17.49

PH

Female Terminal

710001119

$5.49

POV

Female Housing, 2 Circuits

515175658

$16.49

POV

Female Terminal

515175231

$4.49

R

Relay, 30 AMP

515176774

$21.99

RFID

Housing

710001161

$11.49

RFID

Female Terminal

710001164

$9.09

RFID

Lock

710001162

$3.29

RFID

Seal

710000926

$2.29

RFID

Cap

710001114

$18.49

RPO

Male Housing, 3 Circuits

515175494

$16.49

RPO

Male Terminal

515175232

$1.59

RPO1

Female Terminal Housing, 1 Circuit

409010400

$7.79

RPO1

Female Terminal

409010100

$5.69

RPO2

Female Terminal Housing, 1 Circuit

409010400

$7.79

RPO2

Female Terminal

409010100

$5.69

RSW

Female Terminal Housing, 2 Circuits

515176296

$5.99

RSW

Female Terminal

515175231

$4.49

SA

Female Housing, 3 Circuits

515175495

$16.49

SA

Female Terminal

515175231

$4.49

SD

Male Connector, 2 Circuits

278001113

$17.49

SD

Female Terminal

278001114

$3.29

SH1

Housing, Packard

710001929

$11.49

TM

Female Terminal Housing, 4 Circuit

515177048

$11.49

TM

Lock, 4 Circuits

515177051

$10.99

TM

Female Terminal

515177049

$5.69

TM

Seal

515177050

$7.99

TP

Male Housing, 3 Circuits

278000997

$19.49

TP

Female Terminal

278000998

$4.49

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.79

VC1

Female Terminal

409010100

$5.69

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.79

VC2

Female Terminal

409010100

$5.69

WMS

Housing

710001927

$8.99

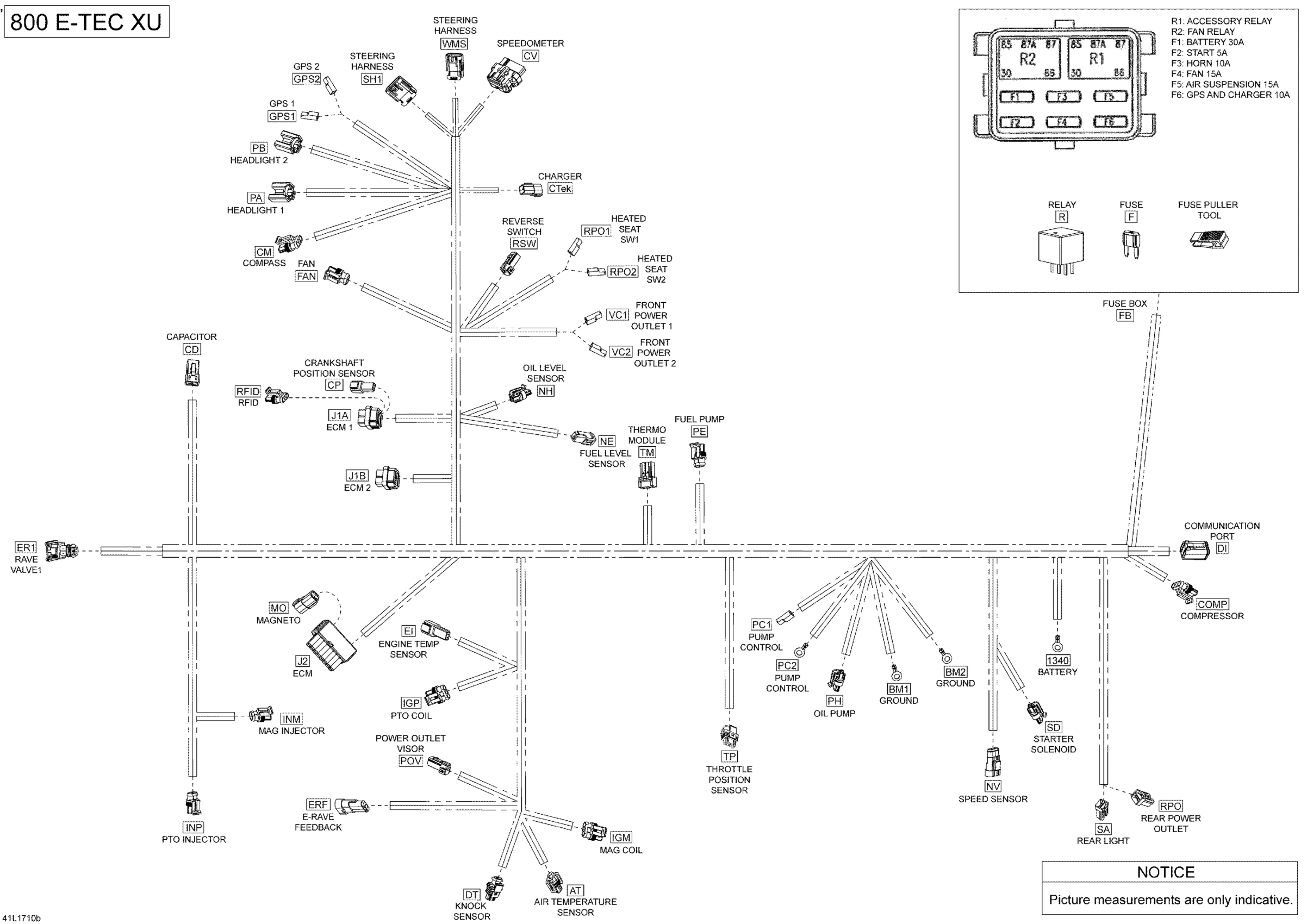

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Electrical Harness - 800R E-TEC Diagram
