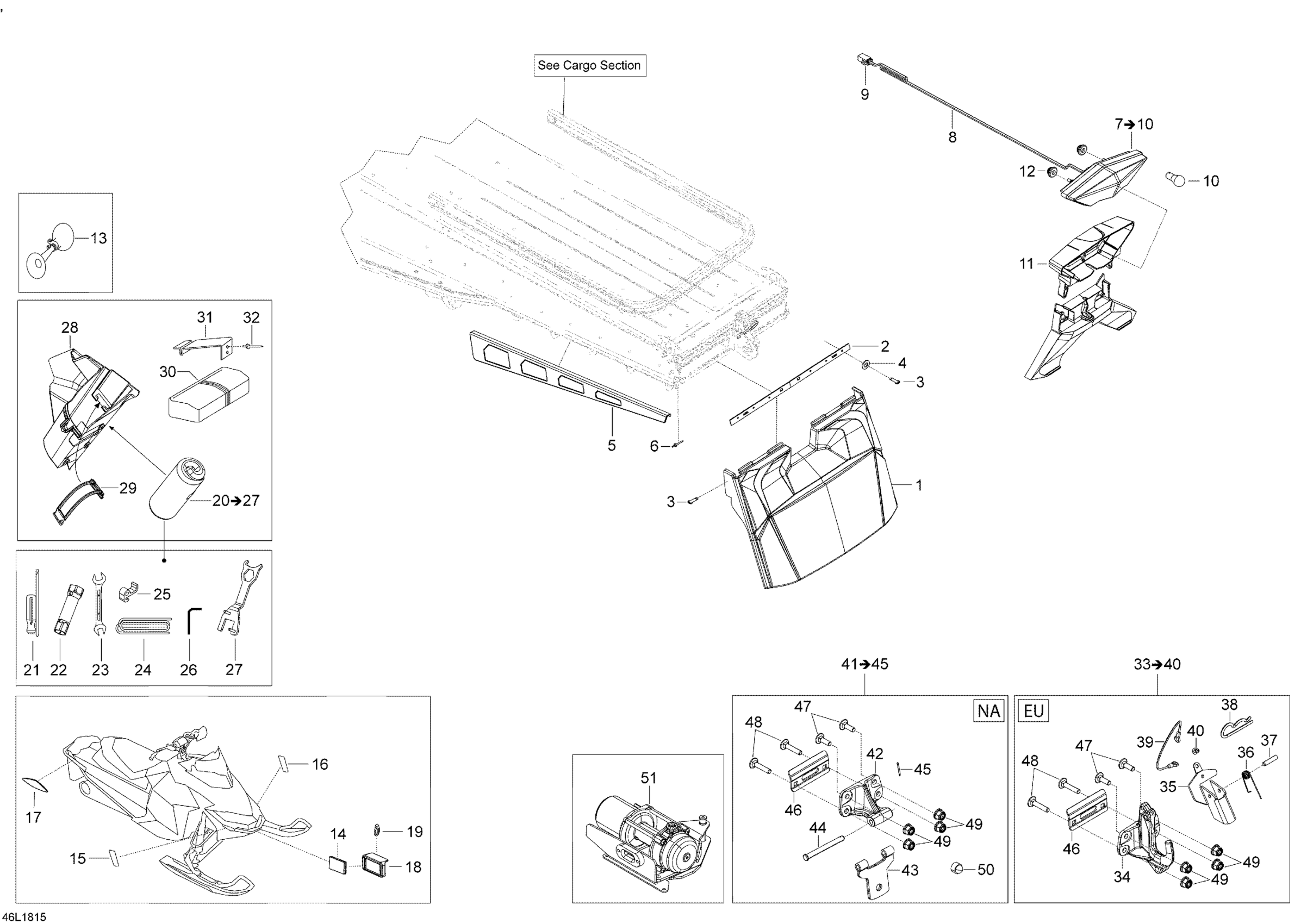

Ski-Doo 6- EXPEDITION XTREME 800R E-TEC, 2018 09- Utilities Expedition - 800R E-TEC Diagram

#

Description
Price

1

Snow Guard

520001406

$85.49

1

Black, Snow Guard Long

520001410

$106.99

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

8.1

Wiring Harness Ass'y | Not Shown

520000677

$38.99

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Horn

549011291

$35.99

14

Reflector (Bright)

21118

$28.99

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Amber, Lateral Reflector

705002423

$15.49

17

Red, Lateral Reflector

705003412

$15.49

18

Deep Black, Reflector Support

520000871

$5.79

19

TIE RAP - Call your local BRP dealership

27120

$0.95

20

Tools Kit | Includes 1400 to 1400e

520001670

$49.49

28

Tool Kit Rack

520000894

$14.99

29

Latch

520000528

$7.69

30

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

31

Tool Kit Rack

5346728

$22.49

32

Rivet

36108

$1.90

33

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

35

Locking Plate

520001775

Unavailable

37

Clevis Pin

520001810

Unavailable

38

Hair pin

41029

$4.44

40

Avex Rivet

390909100

$0.30

40.1

Washer

520001811

Unavailable

40.2

Cotter Pin

520001812

Unavailable

41

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

44

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

45

Cotter Pin

41031

$7.65

46

Plate

520000727

$36.99

47

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

48

Bolt Carriage M8 X 40

207784044

$1.15

49

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Cover | Model-T3

28056

$5.89

60

Support Tape

520001766

Unavailable
