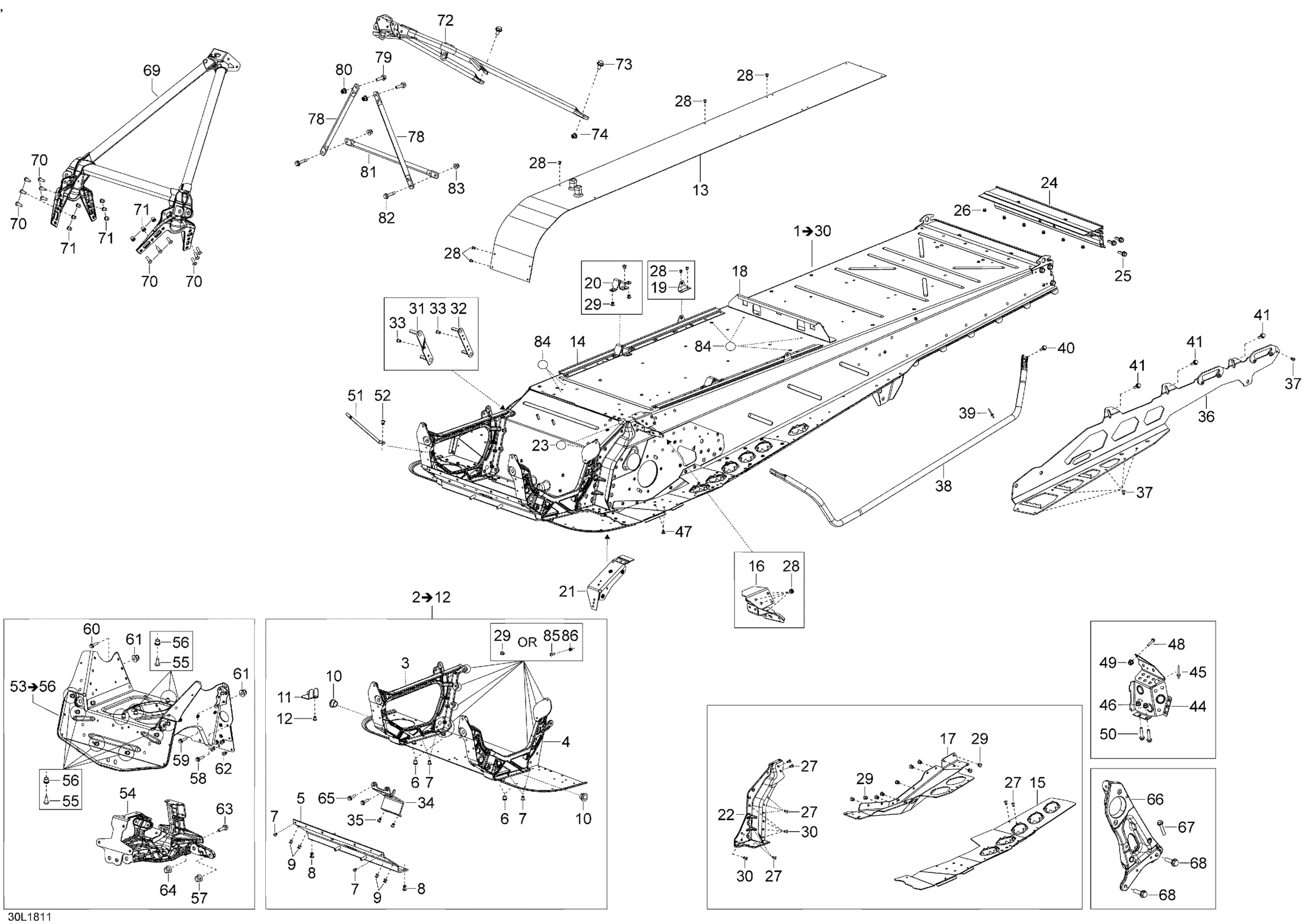

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Frame Expedition - 800R E-TEC Diagram

#

Description
Price

1

Black, Frame | Includes 10 to 10ay

518329698

Unavailable

2

Module E | Includes 10a to 10n

518329691

$882.28

3

RH Member

518326795

$259.97

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler Support

518328194

$16.89

12

Rivet Hucklok

293150163

$2.82

13

Tunnel Radiator | Includes 10p to 10q

509000976

$673.82

13.1

Rear Arm Bracket

518329083

$14.88

13.2

Rear Arm Bracket

518329083

$14.88

14

Fastening rail

518326107

$15.35

15

LH Footrest

518328332

$83.82

15

RH Footrest

518328333

$83.82

16

Fastening Bracket

605355235

Unavailable

17

LH Drive Axle Cover

518328016

$192.28

17

RH Drive Axle Cover

518328017

$192.28

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

19

Seat Box Bracket

518329164

Unavailable

20

LH Support Tube Bracket

518329109

$44.58

20

RH Support Tube Bracket

518329110

$44.58

21

Clinch Nut plate

518326430

$45.99

22

LH Frame Corner

518325524

$52.28

22

RH Frame Corner

518328024

$52.28

23

Adhesive Patch

518325560

$4.34

24

Rear Profile

518328748

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

$0.29

30

Rivet

293150183

$2.06

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$15.26

33

Pop Rivet 3/16"

390402200

$0.26

34

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

35

Hemlock Rivet, 6.5 mm

293150119

$4.00

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

LH Footboard Support Tube

518326963

$126.89

39

Avex Rivet

390909100

$0.29

38

RH Footboard Support Tube

518326964

$126.89

40

Hex. Flange Screw M6 x 20

207662056

$0.98

41

Not Available As Spare Part - Friction Washer

Unavailable

44

Black, LH Toe Hook | Package LE

518327374

$37.66

45

Avex Rivet

390909200

$0.29

46

Clinch Nut M6 Hexsert

605636003

$4.12

47

Black, Dart

414644300

$0.78

44

Black RH Toe Hook

518327376

$39.97

48

Hex. Flange Screw M6 x 20

207662056

$0.98

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

50

Torx Head Screw M6 X 16

250000717

$1.74

51

Spring Bracket

514054846

$4.34

52

Avex Rivet

390909200

$0.29

53

Cross Member | Package LE

518328392

$604.58

54

Front Suspension Support

518327487

$267.66

55

Hex. Flange Screw M6 X 20

207662044

$1.66

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

57

Hex. Flange Elastic Nut M8

233281414

$1.14

58

Hexagonal Head Screw

210262050

$1.74

59

Hex. Flange Screw M6 X 25

207662544

$0.53

60

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

62

Rivet Hucklok

293150163

$2.82

65

Hex. Flange Screw M6 X 16

207661644

$0.61

66

Pulley Support

518328434

$130.74

67

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

68

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

69

Front Member

518326970

$276.12

72

Upper Support Tube

518329105

$189.97

73

Hex. Screw M8 X 20

207182044

$0.61

74

Hex. Elastic Stop Nut M8

232581414

$0.47

78

Upper Lateral Column Support

518325114

$20.74

79

Hex. Flange Screw M6 x 20

207662056

$0.98

80

Elastic Flange Nut M6 X 1.0

233261416

$1.74

81

Center Column Support

518325115

$20.74

82

Hex. Flange Screw M6 X 25

207662556

$3.61

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

84

Adhesive Patch

518325560
