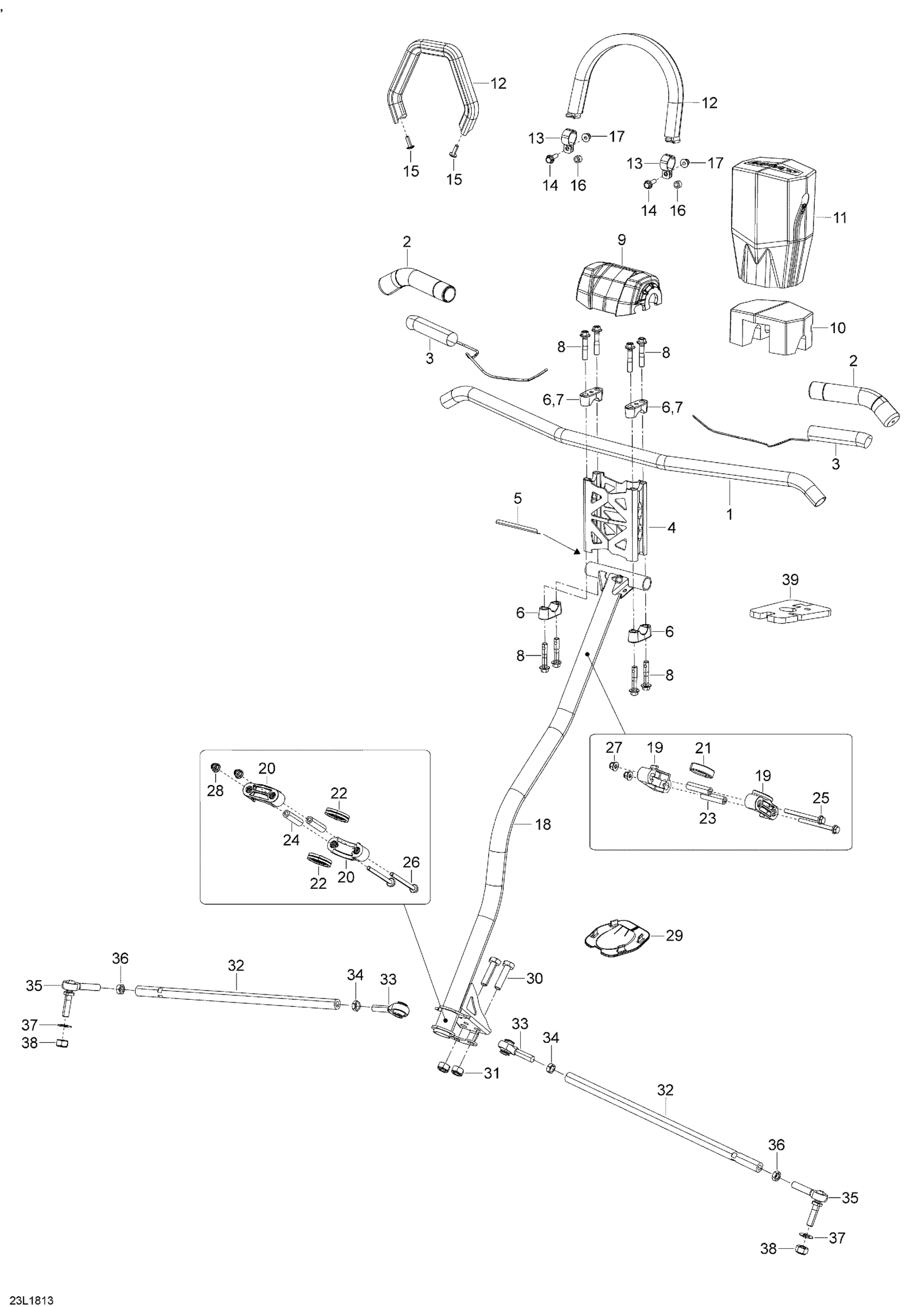

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Steering Expedition - 800HO E-TEC Diagram

#

Description
Price

1

Handle Bar

506152722

$141.01

2

Grip | WAKE This part replaces M5340464.

506152483

$9.85

3

Heated Film, 25W

506152428

$36.54

4

Black Handlebar Extension (130mm) | Package Extreme

506152616

$137.28

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

RH Support | Package Extreme

506152943

$51.46

7

LH Support | Package Extreme

506152942

$51.46

8

Hex. Flange Screw M8 x 40

250000285

$0.75

9

Steering Pad | Package Extreme

506152717

$70.12

12

Moulding Strap

506152460

$69.37

14

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

18

Steering Column

506152962

$183.55

19

Upper Half-Housing

506152508

$7.18

20

Lower Half-Housing

506152217

$5.40

21

Upper Anti-Vibration Gasket

506152509

$4.39

22

Lower Vibration Ring

506152518

$4.39

23

Housing Bushing

506152297

$9.93

24

Housing Bushing

506152297

$9.93

25

Hex. Flange Screw M6 X 70

207667056

$3.61

26

Hex. Flange Screw M6 X 70

207667056

$3.61

27

Elastic Flange Nut M6 X 1.0

233261416

$1.74

28

Elastic Flange Nut M6 X 1.0

233261416

$1.74

29

Plate

506152163

$9.93

30

Hex. Screw M10 X 40

207004044

$4.51

31

Elastic Stop Nut M10

232500416

$1.56

32

Tie-Rod

506152498

$35.79

33

LH Thread Ball Joint

506152081

$38.78

34

LH Threaded Hex. Jam Nut M10

250100016

$0.70

35

RH Threaded Ball Joint

506152684

$41.01

36

RH Threaded Hex. Jam Nut M10

732610010

$0.70

37

Washer

506152582

$4.28

38

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

39

Cushion

506152404

$24.60
