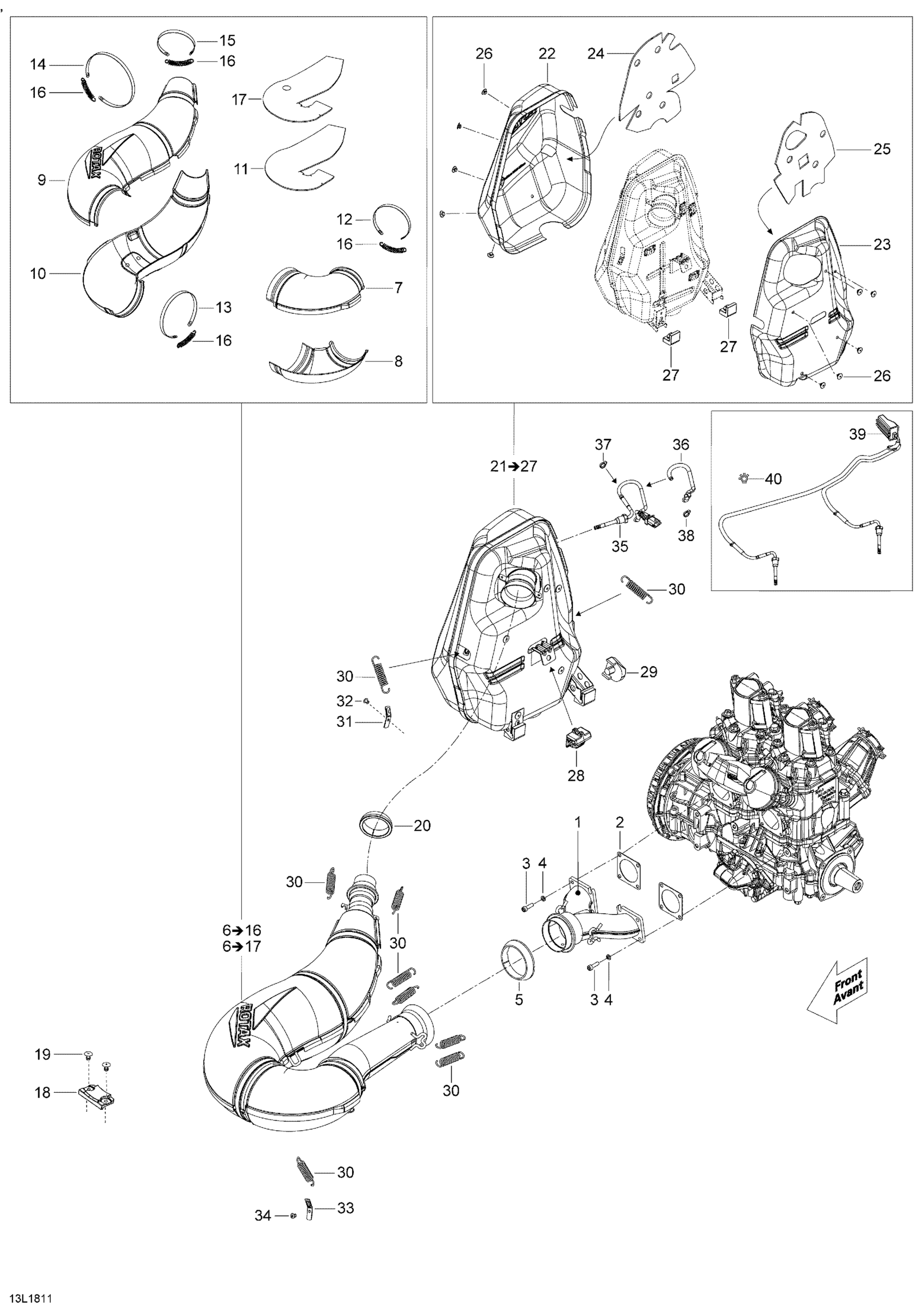

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Exhaust Expedition Xtreme Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673373.

420673374

$279.97

2

Gasket

420430482

$8.23

3

Socket Head Screw M8 X 22

250000414

$2.06

4

Washer

20072

Unavailable

5

Exhaust Gasket

514053487

$26.12

6

Tuned Pipe Ass'y

514055019

$664.58

7

Front Upper Half Enveloppe

514054992

$38.43

8

Front Lower Half Enveloppe

514054993

$38.43

9

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

$69.97

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

11

Insulating Wool

514054487

$19.20

12

Retaining Strap

514054408

$10.55

13

Retaining Strap

514054409

$10.55

14

Retaining Strap

514054410

$10.55

15

Retaining Strap

514053499

$8.35

16

Spring

514053643

$6.20

17

INSULATING WOOL - Call your local BRP dealership

514054553

$16.89

18

Bumper

514054275

$14.65

19

Pop Rivet 3/16"

293150103

$0.54

20

Exhaust Gasket

514053812

$25.35

21

Muffler Ass'y | Includes 400 to 400f

514055023

$738.43

22

RH DEFLECTOR - Call your local BRP dealership

514054986

$49.20

23

LH DEFLECTOR - Call your local BRP dealership

514055029

$49.20

24

RH Insulating Wool

514054711

$18.43

25

LH Insulating Wool

514054299

$19.20

26

Pop Rivet 3/16”

390910000

$0.48

27

Lower Stopper

514054529

$17.66

28

Upper Stopper

514054606

$14.92

29

Rubber Bumber

514055070

$16.89

30

Spring

415107100

$6.20

31

Spring Bracket, 5mm hole

514054974

$6.28

32

Pop Rivet 3/16"

390402200

$0.26

33

Spring Bracket

514055113

$3.29

34

Ornit Rivet 6,5 X 14.5

293150266

$1.94

38

Tie-Rap 180 mm

414115200

$0.09
