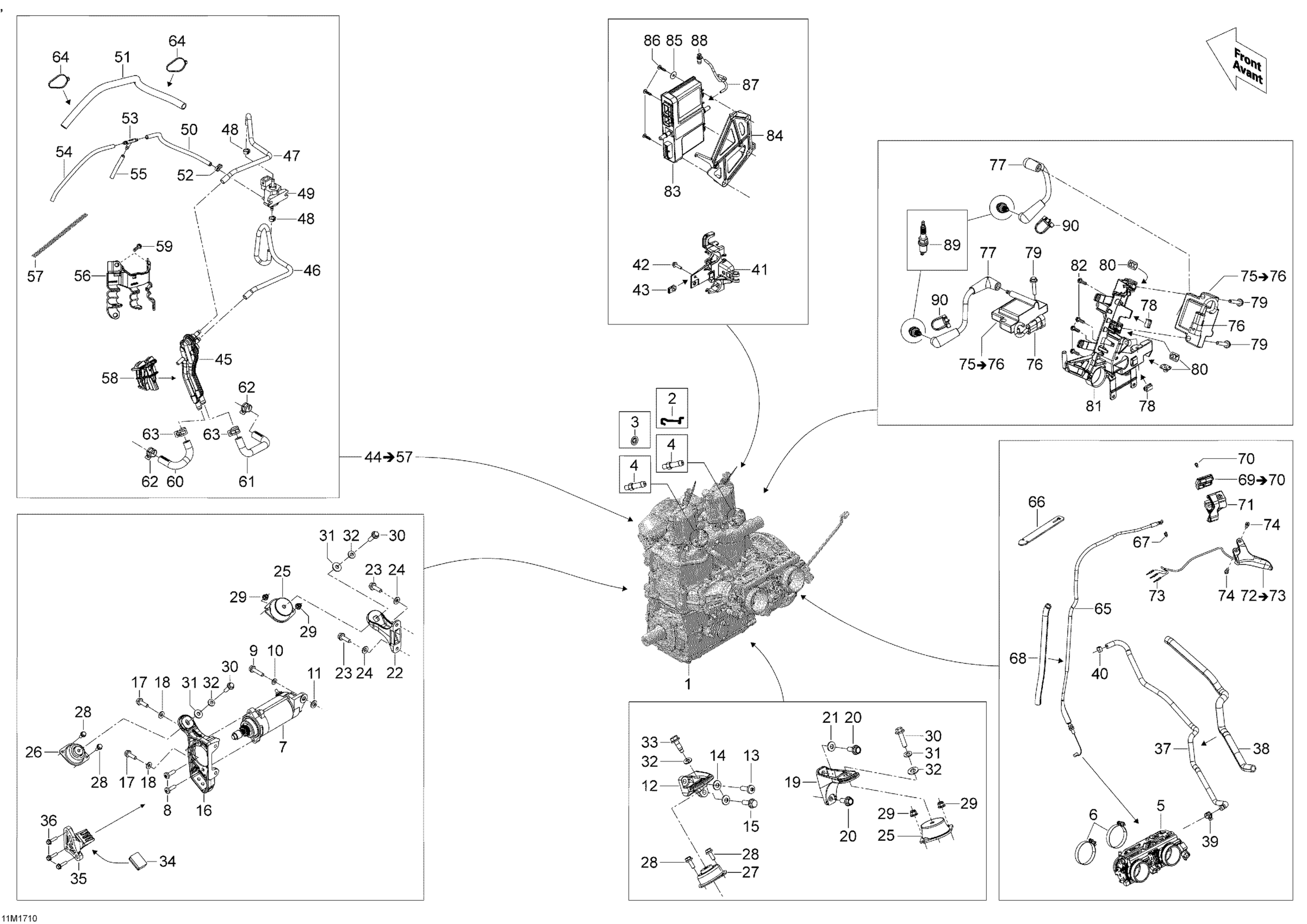

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Locker

515177770

$2.14

3

Push Nut

732610072

$1.72

4

Hose Nipple

420924724

$12.29

5

Throttle Body

420889201

$1,228.43

5

Throttle Body

420889202

$1,254.58

6

Gemi Clamp

293650158

$8.34

6

Gemi Clamp

512060943

$9.31

7

Starter

515178473

$319.49

8

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

9

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

10

Flat Washer With Teflon 8 mm

250200008

$3.12

11

Washer

515176500

$10.83

12

Rear Support, PTO

512060478

$29.97

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

14

Conical Spring Washer M8

234281474

$1.25

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

16

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

16

Front Support, PTO

512060714

$85.35

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

18

Conical Spring Washer M8

234281474

$1.25

19

Rear Support, MAG

512060559

$29.97

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

21

Conical Spring Washer M8

234281474

$1.25

22

Front Support, MAG

512060469

$31.51

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

24

Conical Spring Washer M8

234281474

$1.25

25

Rubber Mount

512060729

$69.97

26

Rubber Mount

512060387

$42.28

27

Rubber Mount

512060448

$42.28

28

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

30

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

31

Yellow, Washer

503183200

$3.00

32

Conical Spring Washer M8

234281474

$1.25

33

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

34

Stopper

512060627

$9.31

34

Stopper

512060766

$9.31

35

Stopper Support

512060576

$28.43

36

Hex. Flange Screw M6 X 25

207562544

$1.39

37

Bleeder's Collector Outlet Hose

512060944

$26.89

38

Tubing 16 Mm 1000Mm Long

219704408

$6.23

39

Tridon Gear Clamp

293650172

$2.68

40

Crimp Clamp, 15.3-706R

293650047

$2.64

41

Solenoid Support

512060298

$12.52

42

Hex.Flange Screw M5 X 20

207652044

$1.56

43

Panel Nut M5 X 0.8

250000958

$3.48

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Manifold

512060692

$43.05

46

Polyurethane Hose 10000Mm Long

219704410

$46.12

47

Polyurethane Hose 10000Mm Long

219704410

$46.12

48

Crimp Clamp

293650234

$5.22

49

Solenoid Valve

270600005

$39.62

50

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

51

Was 409901700 Tubing (9 mm)

219704399

$79.97

52

Tie Wrap 94 mm | 4X4

293750001

$0.83

53

T-Fitting

293710068

$6.59

54

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

55

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

56

Hose Support

512060827

$2.06

57

Spring | Not Shown

512060934

$81.51

58

Manifold Support

512060769

$10.52

58

Manifold Support

512060822

$10.52

59

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

60

LH Formed Hose

512060695

$7.80

61

RH Formed Hose

512060694

$7.80

62

Norma Spring Clamp

293650214

$15.35

63

Crimp Clamp, 15.3-706R

293650047

$2.64

64

Tie Wrap 94 mm | 4X4

293750001

$0.83

65

Throttle Cable

512060633

$106.12

66

Rubber Strap

293850117

$7.35

67

Circlip

414274500

$0.74

68

Was 409901700 Tubing (9 mm)

219704399

$79.97

69

Upper Housing

512060859

$8.38

70

Socket Set Screw M8 X 10

414440800

$4.00

71

Lower Housing

512060860

$16.89

72

Handle Ass'y

512061250

$117.66

73

Male Terminal

515175232

$1.49

74

Flange Screw

732601143

$4.02

75

Ignition Coil

512060953

$129.97

76

Housing

710000568

$10.83

77

Ignition Cable, 177mm long

512061126

$27.66

78

Clip

710000992

$4.00

79

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

80

Nut Welded, M6

293100003

$6.32

81

Ignition Coils Support

512060888

$10.52

82

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

83

Calibrated Module

512060780

$769.99

83

Calibrated Module

512060756

$769.99

84

Calibrated Module Support

512060858

$12.52

85

Flat Washer

250200040

$1.82

86

Torx Screw Truss Head K50X20 T20

250000760

$1.74

87

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

88

Male Connector

414814100

$2.18

89

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$23.37

89

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$32.28

90

Clamp

512060993

$5.22
