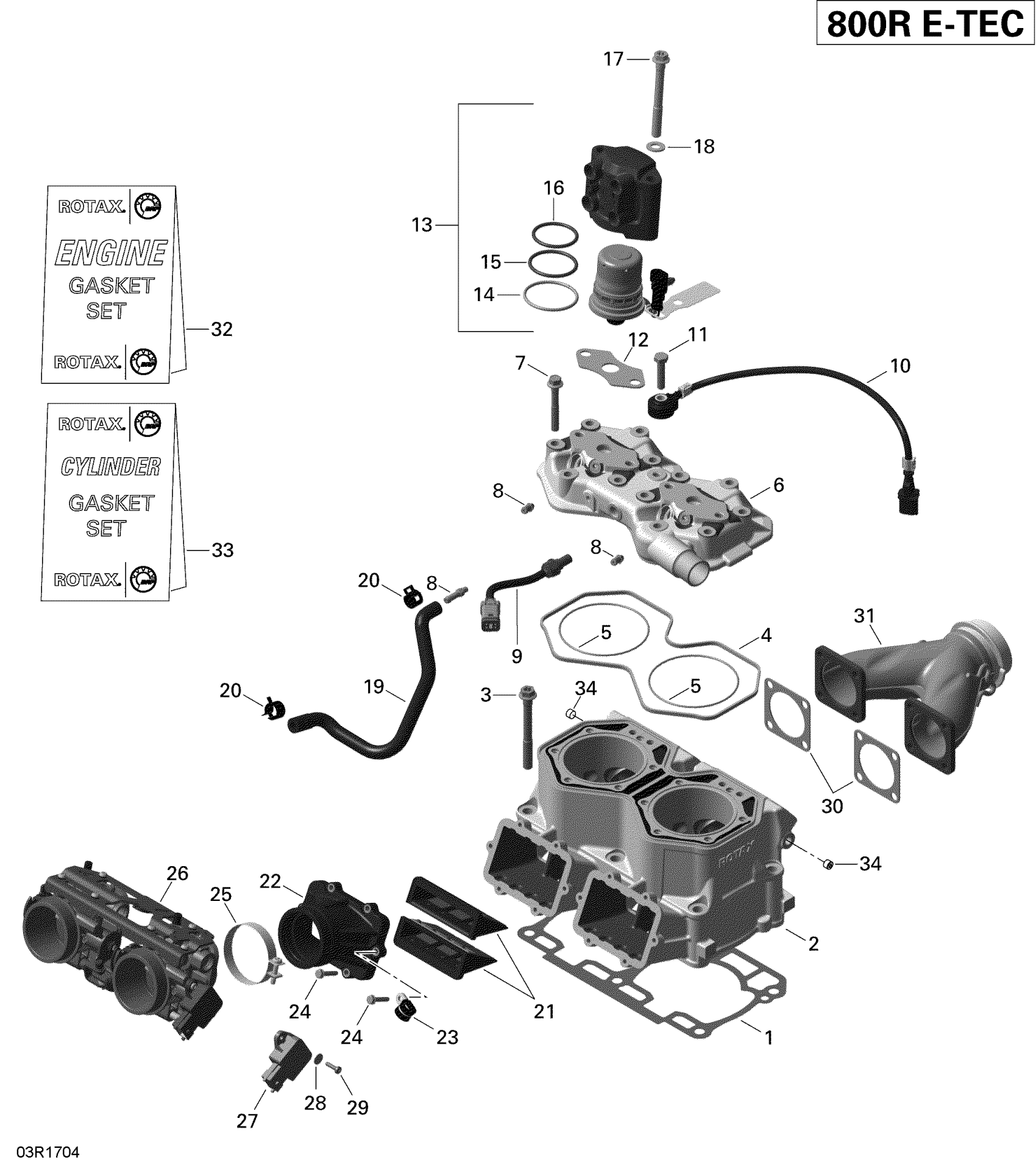

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Cylinder and Injection System - 800R E-TEC Diagram

#

Description
Price

1

Double Gasket 0.5 mm

420430080

$26.99

1

Double Gasket 0.6 mm

420430081

$29.99

1

Double Gasket 0.7 mm

420430082

$36.99

1

Double Gasket 0.8 mm

420430083

$36.99

1

Double Gasket 0.9 mm

420430084

$21.99

2

Cylinder

420413041

$929.99

2

Cylinder

420413041

$929.99

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

4

O-Ring

420430040

$6.19

5

O-Ring | Included in gasket kit

420931410

$3.39

6

Head Cylinder Cover

420623304

$274.99

7

Hex. Screw M8 X 56.5

420941627

$8.79

8

Hose Nipple

420924724

$15.49

9

Temperature Sensor This part replaces 420664508.

420664509

$154.99

10

Noise Sensor

270000484

$84.99

11

Hex. Screw M8 X 35

207083544

$1.49

12

Gasket

420430930

$4.99

13

Fuel Injector | Includes 13 to 16

512061054

$339.99

14

Crush Ring

415129497

$7.99

15

O-Ring

415129498

$13.49

16

O-Ring

415129499

$7.39

17

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

18

Flat Washer M10 This part replaces 420927410.

420927411

$2.19

19

Molded Hose

420460867

$19.99

20

Clamp

420853511

$7.69

21

Reed Valve Ass'y

420924798

$42.99

22

Intake Socket

420867333

$169.99

23

Clamp

420851250

$10.99

24

Tapping Screw M5 X 22

420841550

$1.69

25

Clamp

420851815

$10.99

26

Throttle Body

420889202

$1,309.99

27

Position Sensor

420866120

$99.99

28

Flat Washer 4 mm, Stainless

234041600

$1.49

29

Phillips Screw M4 X 16

208641660

$1.49

30

Gasket

420430482

$8.89

31

Exhaust Manifold This part replaces 420673373.

420673374

$309.99

32

Gasket Set, Engine

420893500

$389.99

33

Gasket Set, Cylinder

420893505

$214.99

34

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.19
