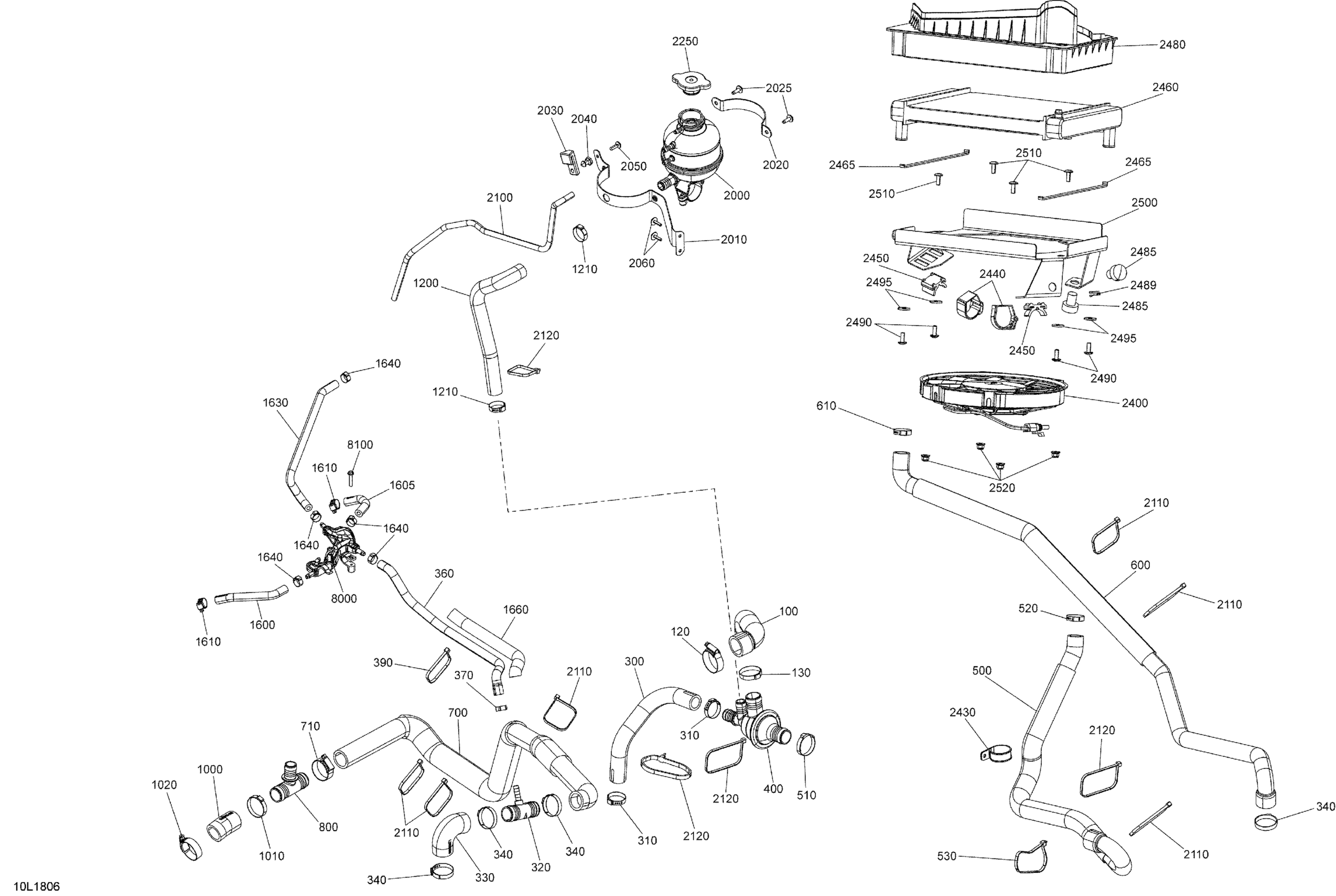

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 Cooling 800R E-TEC Diagram

#

Description
Price

100

Engine Outlet Hose

509000595

$16.99

120

Aba Gear Clamp, 26-38 MM

509000443

$12.49

130

Oetiker Gear Clamp

509000181

$4.49

300

Bypass Hose

509000523

$63.99

310

Crimp Clamp

293650099

$4.39

320

T-Fitting

509000510

$13.49

330

Radiator Hose This part replaces 509000671.

509001066

$21.99

340

Oetiker Gear Clamp, 36.5-706R

509000529

$10.99

345

Oetiker Gear Clamp

509000181

$4.49

360

Bleeder Hose

509000906

$25.99

370

Crimp Clamp, 15.3-706R

293650047

$3.39

390

Tie-Rap 180 mm

414115200

$1.49

400

Thermostat Housing

509000499

$43.99

500

Thermostat Outlet Hose

509000983

$104.99

510

Oetiker Gear Clamp

509000181

$4.49

520

Crimp Clamp

293650099

$4.39

530

Tie-Rap 180 mm

414115200

$1.49

600

Hose

509000994

$63.99

610

Crimp Clamp

293650099

$4.39

700

Radiator Hose

509000992

$47.99

710

Aba Gear Clamp, 26-38 MM

509000443

$12.49

800

T-Fitting

509000372

$10.99

1000

Engine Inlet Hose

509000997

$19.99

1010

Oetiker Gear Clamp

509000181

$4.49

1020

Aba Gear Clamp, 26-38 MM

509000443

$12.49

1200

Filling Hose

509000736

$36.99

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

1600

Bleeder Hose

509000818

$11.49

1605

Bleeder Hose

509000819

$11.99

1610

Tridon Gear Clamp

293650170

$2.00

1630

Hose

509000998

$11.49

1640

Oetiker Clamp

293650046

$2.99

1660

Tubing 16 Mm 1000Mm Long

219704408

$7.69

2000

Coolant Tank

509000421

$94.99

2010

Reservoir support

509000852

$69.99

2020

Support

509000608

$31.99

2025

Forming Screw M5 x 16

250000676

$1.49

2030

Support

509000609

$24.49

2040

Knob

517303439

$4.69

2050

Torx Screw K50 X 16

250000720

$1.69

2060

Screw M4 X 16

250000725

$3.59

2100

Hose 6 Mm 15000Mm Long

219704360

$134.99

2110

Tie Wrap 368 mm

293750008

$1.49

2120

Tie-Rap 180 mm

414115200

$1.49

2250

Radiator Pressure Cap

509000180

$14.99

2400

Cooling Fan

509000838

$224.99

2430

Clamp With Rubber

27011

Unavailable

2440

Velcro Strip

508000820

$8.79

2450

Bumper

508000822

$8.29

2460

Radiator

509000980

$229.99

2465

Rubber Strip

509000986

$4.49

2480

Deflector

509000985

$29.99

2485

Rubber Bumper

570044700

$13.49

2489

Clip

710000992

$4.39

2490

Torx Head Screw M6 X 16

250000717

$2.19

2495

Flat Washer

224061201

$1.49

2500

Support

509000984

$95.99

2510

Torx Head Screw M6 X 16

250000717

$2.19

2520

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

8000

Bleed Collector

509000803

$25.99

8100

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.49
