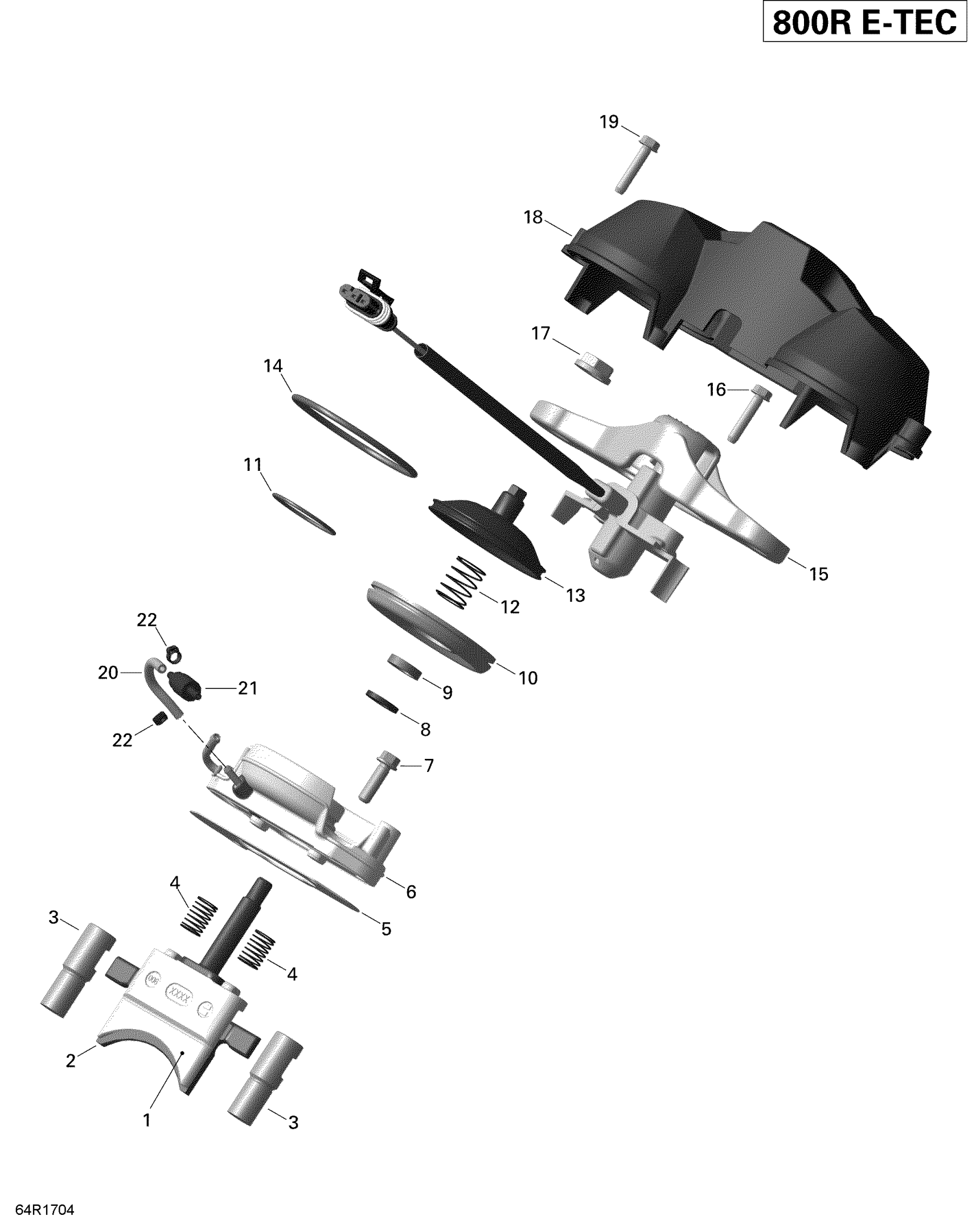

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2018 3D Rave - 800R E-TEC Diagram

#

Description
Price

1

Upper Exhaust Valve | Composante émission de type échappement.

420854900

$22.49

2

Lower Exhaust Valve This part replaces 420854909.

420854904

$63.99

3

Exhaust Valve

420854890

$12.49

4

Spring

420238558

$5.39

5

Gasket

420430032

$19.16

6

Valve Housing

420854888

$99.49

7

Torx Flange Screw M6 X 20

420440207

$3.06

8

Gasket Ring

420431380

$8.57

9

Oil Seal | Included in gasket kit

420950732

$9.27

10

Bellows

420260725

$42.49

11

Hose Spring This part replaces 420838253.

420838255

$7.41

12

Spring

420238557

$5.39

13

Valve Cover

420854442

$35.99

14

Hose Spring This part replaces 420939285.

420939286

$11.60

15

Position Sensor

420854089

$114.99

16

Tapping Screw M5 X 22

420841550

$1.69

17

Nut M12 X 1.5

420942190

$14.22

18

Cover

420910821

$14.22

19

Tapping Screw M5 X 22

420841550

$1.69

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Check Valve Ass’y

420956515

$8.59

22

Clamp

420851508

$14.22
