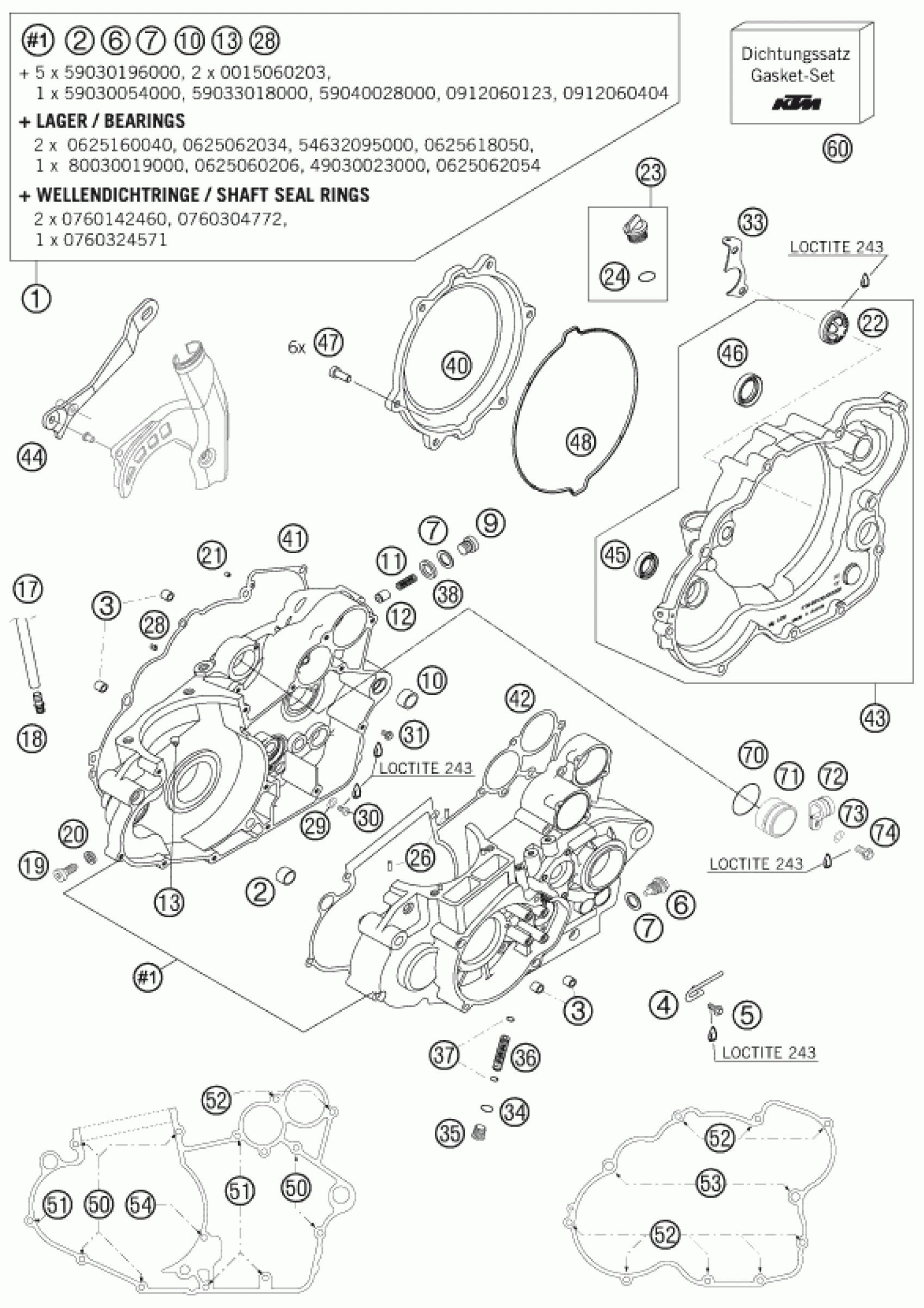

KTM 560 SMR 2007 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. 540 SXS 06

SXS06530006

$816.21

2

DOWEL 17 X 13 X 12

51030026100

$6.44

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

4

HANGER FOR VENT HOSE

59030090000

$4.11

5

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

9

threaded plug DIN 908 M12x1.5

0908120153

$4.11

10

DOWEL 17 X 19 X 12

59030024000

$5.23

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

11

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

22

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

23

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

24

O-RING 19,00X3,00 NBR

0770191015

$2.05

26

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

12

VALVE PISTON D=10MM

58038028000

$37.77

13

JET 60 DELLORTO M6X0,75

59030054000

$13.08

18

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

19

LOCATING SCREW L=24 2003

59030080000

$5.23

20

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

21

NEEDLE ROLLER DIN5402 2,5X9,8

0402025980

$3.08

29

WASHER DIN0125-A 5,3

0125050003

$1.49

30

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

$1.49

31

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

33

RET.BRACKET F.BRAKE LEVER HUB

59030001090

$2.81

34

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

35

PLUG M16X1,5

59038014100

$16.82

36

OIL SCREEN 11,8X44,5MM

59038015000

$12.61

37

O-RING 9X1,5 NBR

0770090015

$2.05

38

SEAL RING DIN7603 12X18X3

0603121830

$2.05

40

CLUTCH COVER OUTSIDE 06

59030026000

Unavailable

41

GASKET FOR CLUTCH COVER

59030025100

$26.45

42

ENGINE CASE GASKET

59030039200

$37.48

43

CLUTCH COVER INSIDE CPL. 06

59030101044

$82.99

44

CHAIN DAMPING PLATE RAC. 2005

59030047100

$10.92

45

radial shaft seal 14x24x6 B

0760142460

$9.25

46

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60

47

AH SCREW DIN6912-M 6X16

0984060163

$2.05

48

GASKET F. OUTER CLUTCH COV. 06

59030027000

$7.10

50

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

51

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

52

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

53

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

54

HH COLLAR SCREW M 6X75 WS=8

0015060753

$3.08

60

GASKET SET CPL. RACING 2000

59030099000

$364.74

70

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

71

CAP COVER

59040034000

$7.25

72

CLAMP RSGU 18/15 03

59007439000

$5.79

73

WASHER DIN0125-A 6,4

0125060003

$1.49

74

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

17

ENGINE BREATHER TUBE 00

59031050100

$14.58

28

JET 100 BING(44-031/180) M4

59030058000

$4.11
