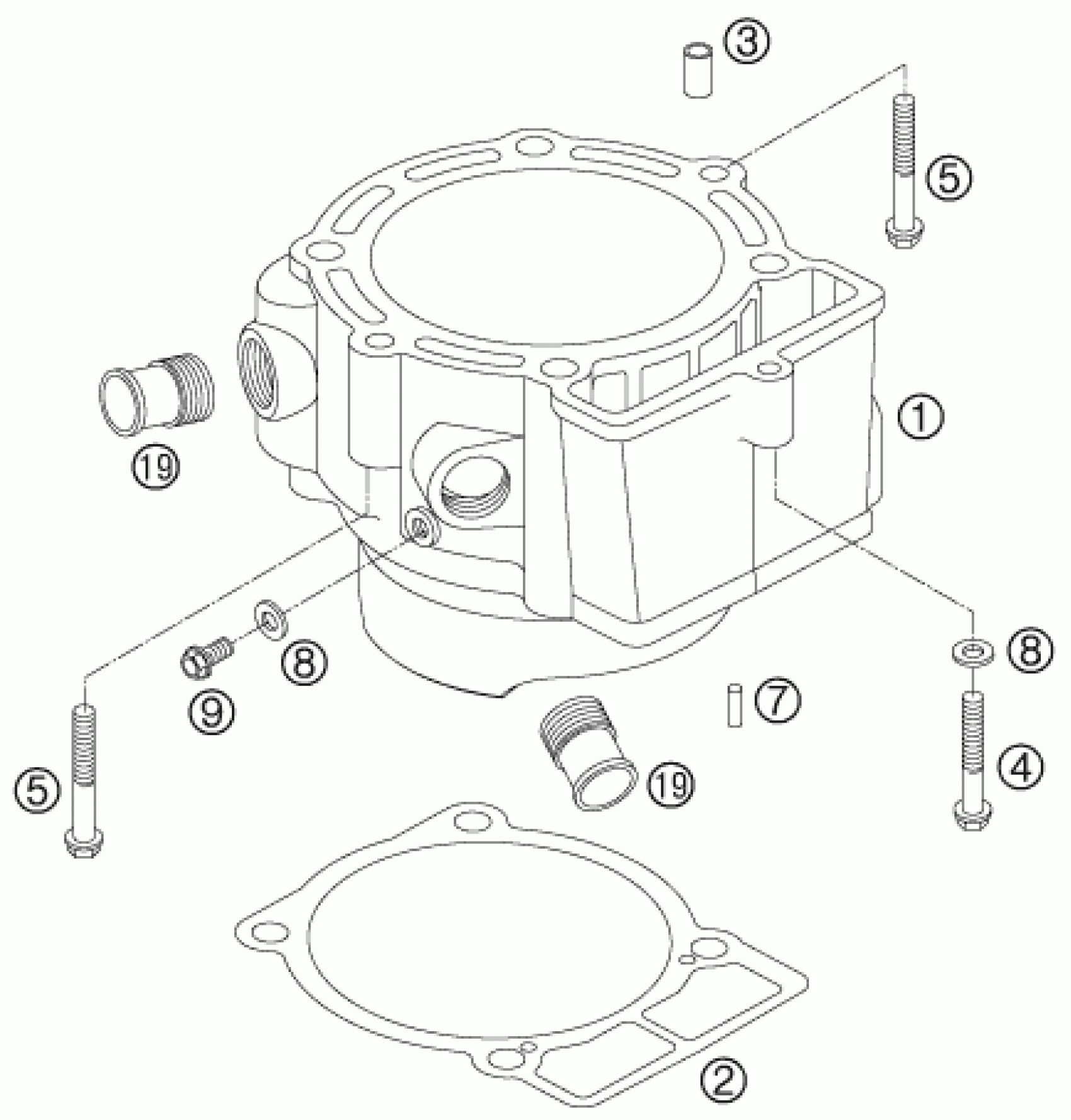

KTM 560 SMR 2006 CYLINDER Diagram

#

Description

Price

19

HOSE CONNECTOR M20X1,5

SXS04530014

Unavailable

1

CYLINDER D=100MM, L=76MM

SXS03530010

Unavailable

2

CYLINDER BASE GASKET 0,8MM

59030035150

Unavailable

3

dowel sleeve 6x8x11.5

59030023000

Unavailable

4

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

5

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

7

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable
