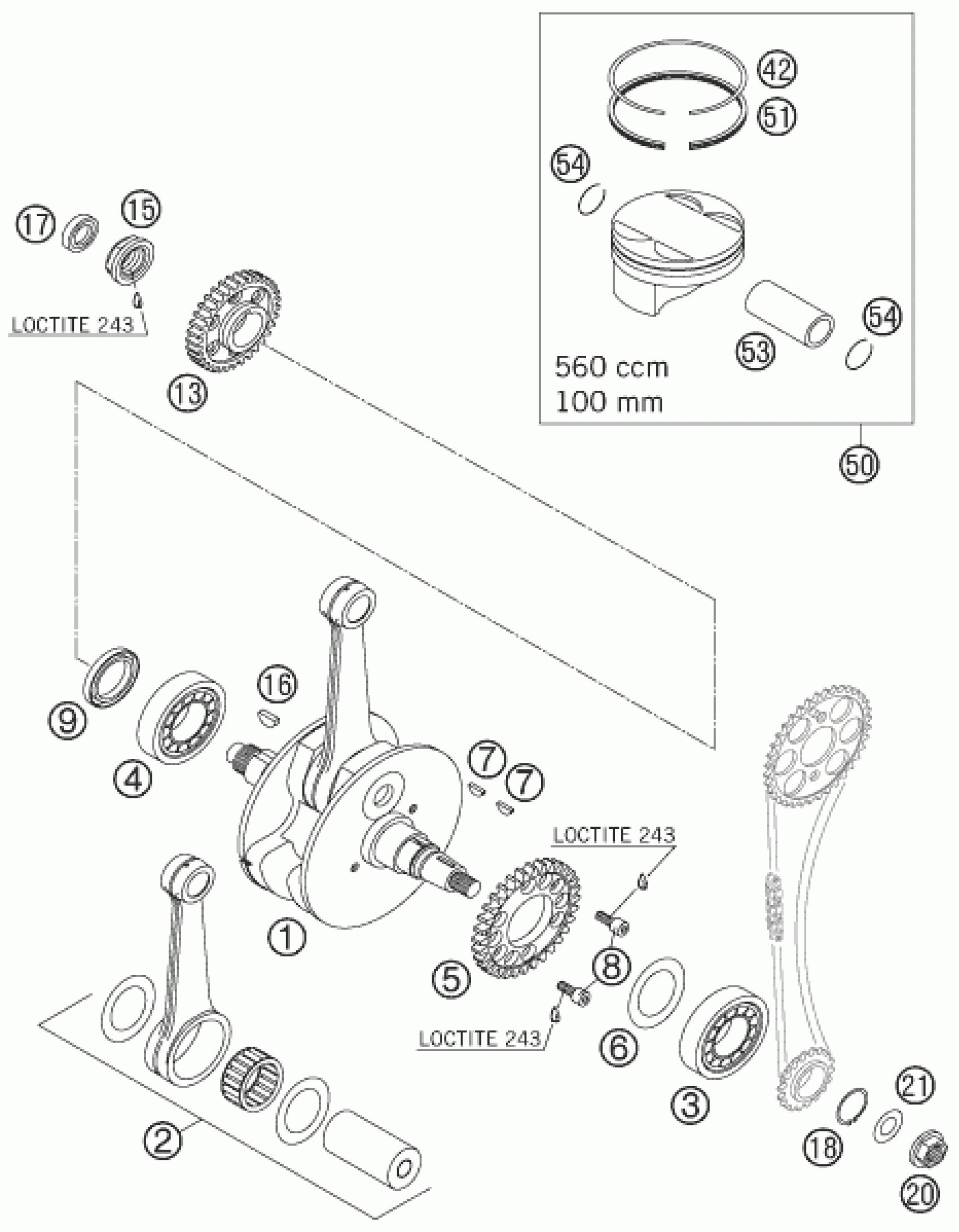

KTM 560 SMR 2006 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT 560 SMR 2006

59030018700

$714.46

4

CYL.ROLLBEAR.NJ206ECP/C3HVC058

80030019000

$94.80

5

DRIVE GEAR 32-T F.BALANC.SHAFT

59030055000

$91.24

6

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

2

CON. ROD REP. SET 03

SXS03530021

Unavailable

6

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

6

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

7

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

8

AH SCREW DIN7984-M 6X16

0984060162

$1.49

9

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

13

PRIMARY GEAR 33-T

59032000033

$126.59

15

HH NUR M20X1,5 WS=27 LEFT

59030029100

$6.96

16

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

17

radial shaft seal 14x24x6 B

0760142460

$9.25

18

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

SPRING WASHER DIN0137-B12

0137120000

$1.49

42

RECTANGULAR RING 100X1,25

80030032000

$39.92

50

PISTON 100MM CPL.

59030107000 I

$387.11

50

PISTON 100MM CPL.

59030107000 II

$351.91

51

OIL SCRAPER RING D=100MM

59330032000

$32.72

53

PISTON PIN BOLT 20X15,8/12X50

59030033000

$18.01

54

CIRCLIP C20X1,5

59030074000

$2.05

3

BALL BEARING TMB 206 JR2 C3

0625060206

$57.82
