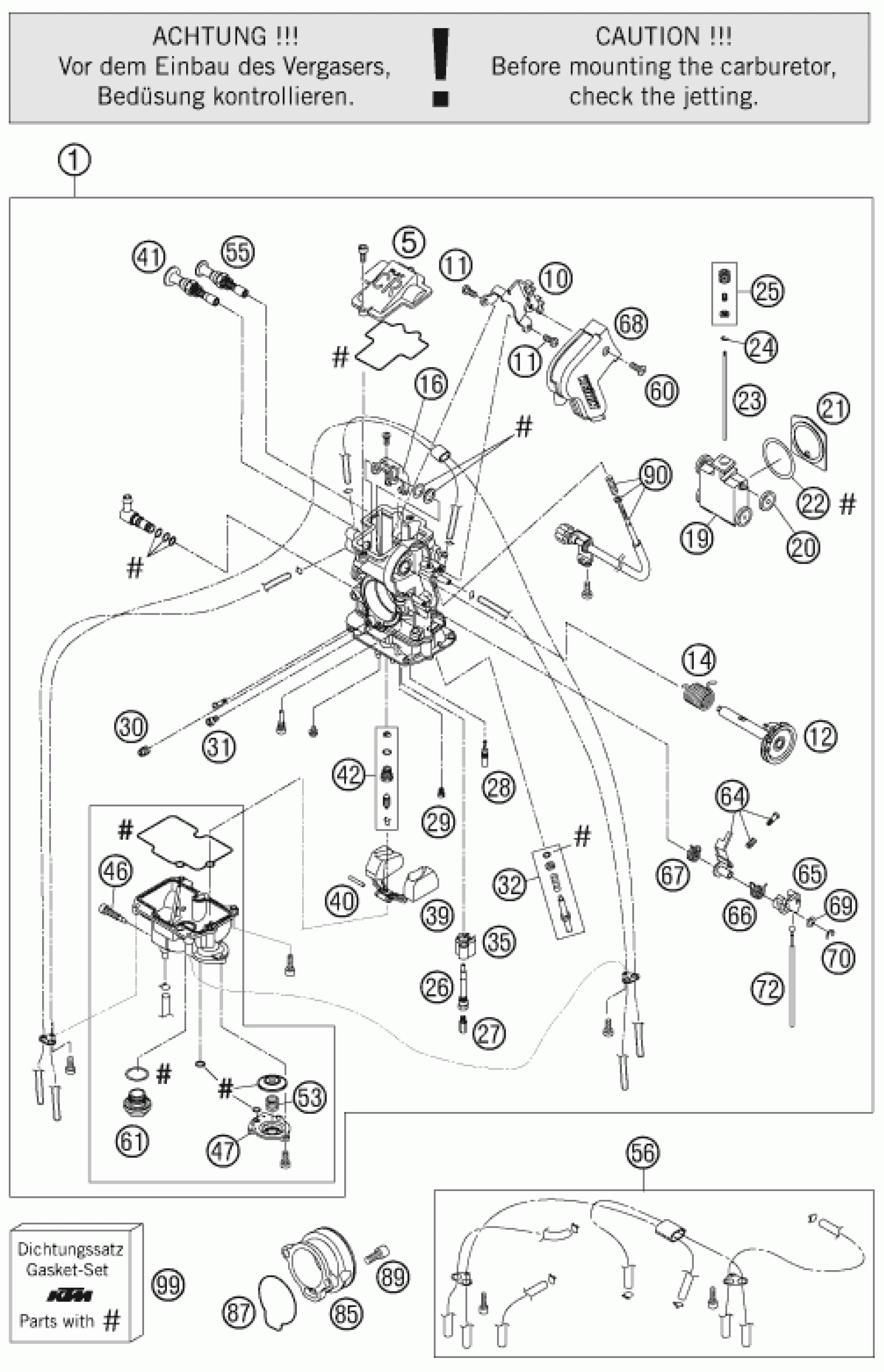

KTM 560 SMR 2006 CARBURETOR Diagram

#

Description
Price

27

MAIN JET 200 KEIHIN

54531623200

Unavailable

1

CARBURETOR FCR-MX 4125E 06

59031001500

Unavailable

5

CARBURETOR COVER 2002

57331027000

$39.26

10

BRACKET PLATE FOR THR. CABLE

57331080000

$64.88

11

SCREW M 5 X 8

57331055000

$1.73

12

THROTTLE SHAFT CPL. 06

57331046200

$75.09

14

COIL SPRING THROTTLE SHAFT

57331046050

$9.15

16

LINK ARM THROTTLE VALVE CPL.

57331035051

$84.89

19

THROTTLE VALVE CPL.

57331035000

$345.01

20

BUSHING THROTTLE VALVE

59031035050

$10.65

21

GASKET PLATE THROTTLE VALVE 04

57331035153

$191.85

22

GASKET WASHER THROTTLE VALVE

59031035052

$17.94

23

JET NEEDLE KEIHIN OBDTM

59031021000

Unavailable

23

JET NEEDLE KEIHIN OBDTN

59031034000

Unavailable

23

JET NEEDLE KEIHIN OBDTP

59031034400

$31.03

23

JET NEEDLE KEIHIN OBDTQ

59031034500

Unavailable

23

JET NEEDLE KEIHIN OBDTR

59031034600

Unavailable

24

BAR CLIP

59031029000

$5.23

25

NEEDLE SET SCREW CPL.

57331032000

$40.10

26

NEEDLE JET FCR-MX

59031121000

$32.72

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

27

MAIN JET 192 KEIHIN

54531623192

Unavailable

27

MAIN JET 195 KEIHIN

54531623195

Unavailable

27

MAIN JET 182 KEIHIN

54531623182

Unavailable

27

MAIN JET 185 KEIHIN

54531623185

Unavailable

27

MAIN JET 188 KEIHIN

54531623188

Unavailable

27

MAIN JET 190 KEIHIN

54531623190

$12.61

28

IDLE JET 40 KEIHIN

54531607040

$12.61

28

IDLE JET 42 KEIHIN

54531607042

$12.71

28

IDLE JET 45 KEIHIN

54531607045

Unavailable

29

STARTER JET 85

59031051085

$16.73

30

IDLE AIR JET 100 KEIHIN

57331007100

$15.51

31

MAIN AIR JET 200 KEIHIN

57331037200

$12.37

32

ADJUST SCREW CPL. FCR-MX

59031017100

$19.63

35

BUFFER PLATE

57331085000

$12.33

39

FLOAT CPL.

57331009000

$59.64

40

ARM PIN FLOAT

57331008000

$2.05

41

HOT-STARTER VALVE CPL.

57331075000

$97.89

42

NEEDLE VALVE CPL.

57331020000

$81.15

46

DRAIN SCREW FLOAT CHAMBER

57331155000

$5.98

47

COVER ACCELERATOR PUMP

57331060000

$27.01

49

FLOAT CHAMBER CPL. SET

57331011000

$178.48

53

COIL SPRING

59031059000

$7.38

55

STARTER VALVE CPL.

57331048000

$86.85

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

$107.52

60

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

61

PLUG M 18X1

54531699000

$20.09

64

INTERMEDIATE LEVER CPL.

57331062000

$33.28

65

LINK LEVER

57331056000

$8.13

66

SPRING LINK LEVER

57331059000

$9.49

67

SPRING INTERMEDIATE LEVER

57331159000

$10.84

68

CARBURETOR COVER

57331038000

$24.58

69

WASHER LINK LEVER

57331087000

$2.05

70

E-CLIP

57331084000

$2.05

72

ROD ACCELERATOR PUMP

57331061000

$26.73

85

INTAKE FUNNEL FCR/FCR-MX 02

59031040200

$7.21

87

O-RING FOR INTAKE FUNNEL

59031040010

$3.08

89

AH SCREW DIN0912-M 5X10

0912050103

$1.49

90

STOP SCREW CPL. FCR-MX

57331025000

$56.65

99

GASKET SET FCR-MX KEIHIN

57331099000

$119.67

27

MAIN JET 198 KEIHIN

54531623198

Unavailable
