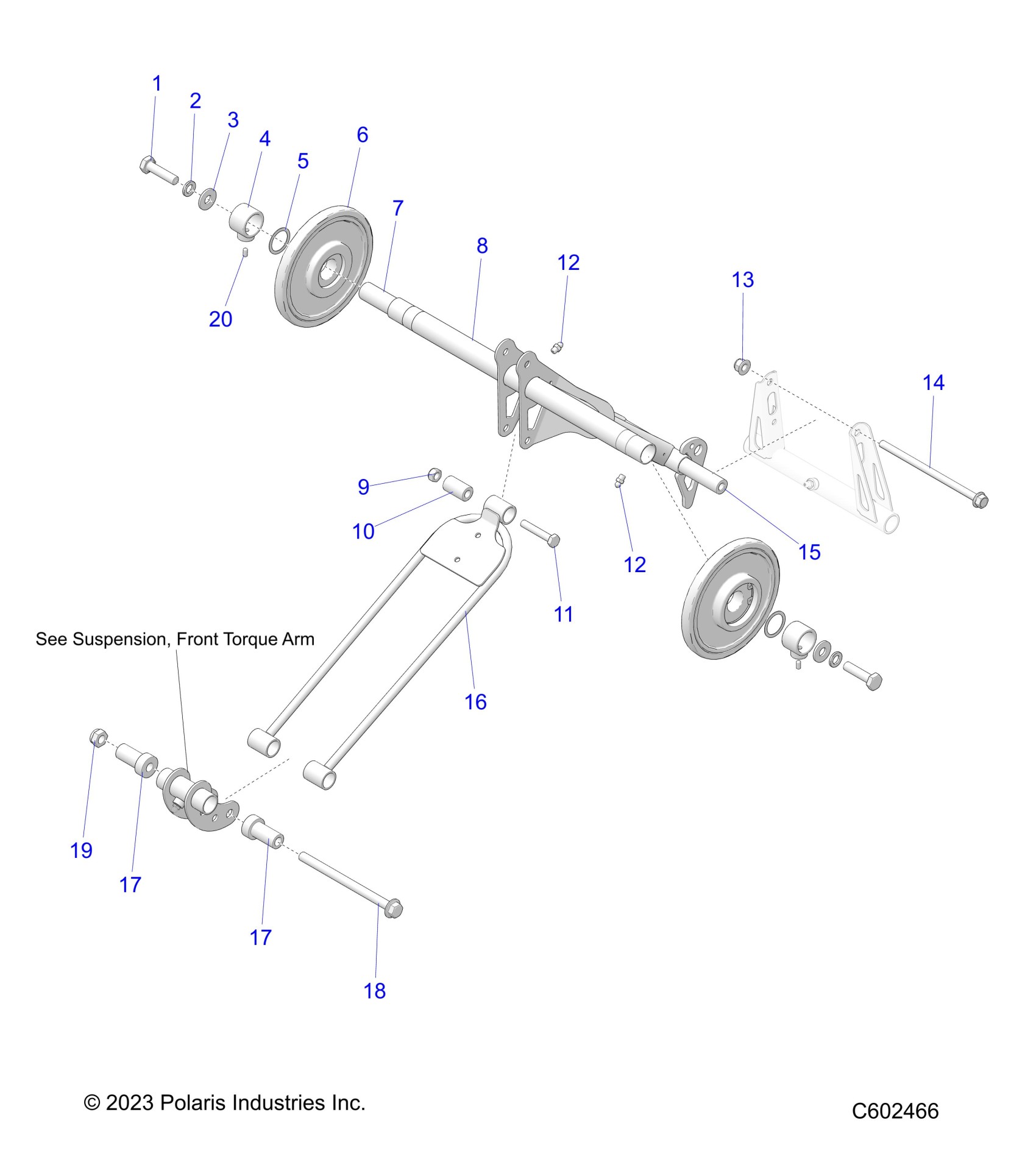

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU SUSPENSION, TORQUE ARM, REAR - S25CED5TSL/TSU (C602466) Diagram

#

Description
Price

1

SCR-HH,M10X40 10.9 ZPC P80

7519223

$3.99

2

WSHR-M10,SPRING LOC ZPC

7556558

$2.39

3

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

4

SPACER-.985X1.285X.868,NYLON

5135424

$19.99

5

WASHER, SPRING

7571605

$6.39

6

RET.RING-TRUARC [1 PER]

7718407

$4.79

6

BEARING [1 PER]

3514303

$11.99

6

ASM-WHEEL,BOGIE,LWT,PLAIN,5.62

1590328

$48.56

7

SHAFT, HOLLOW

5138059

$60.70

8

ARM, TORQUE, REAR, NARROW, BLACK

1543150-329

$224.99

9

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

10

BUSHING-M8X17.5X30

5137230

$3.19

11

SCR-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

12

FITTING-LUBRICATION 1/4-28

7080424

$4.79

12

FITTING-LUBRICATION 1/4-28

7080424

$4.79

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

SCR-HXFL-M8X1.25X150 8.8 ZOD

7519200

$9.59

15

SHAFT

5337198

$28.32

16

ROD, SHOCK, OFFSET, BLACK

1543228-329

$121.02

17

BUSHING, SHOCK ROD

5138677

$15.99

17

BUSHING, SHOCK ROD

5138677

$15.99

18

SCR-HXFL-M10X1.5X140 8.8 ZOD

7519041

$10.39

19

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

20

SCR-10-24-3/8 SOC/SET-Y

7518262

$3.99
