- 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU
SUSPENSION, REAR and TRACK - S25CED5TSL/TSU (C602112-1)

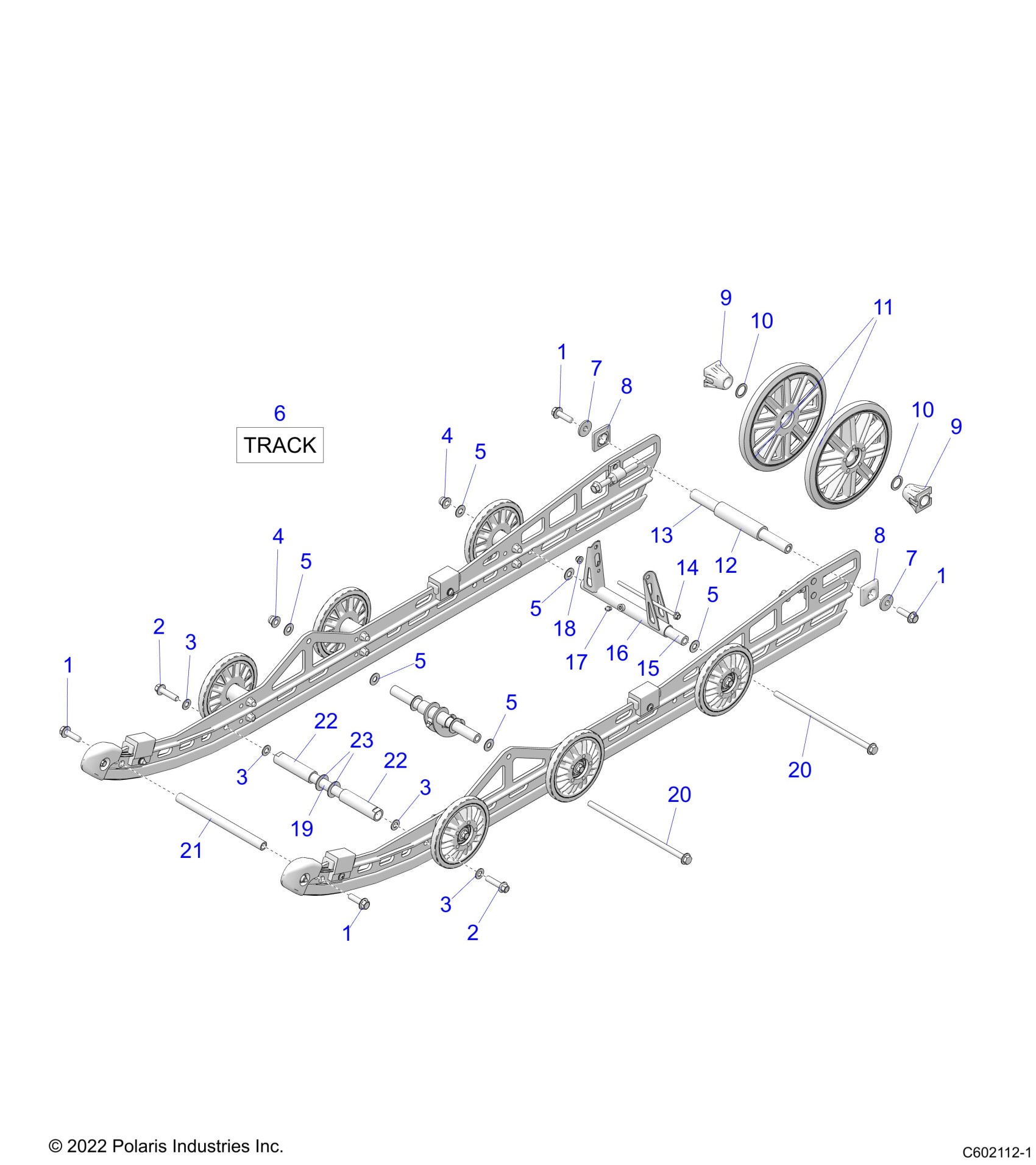

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU SUSPENSION, REAR and TRACK - S25CED5TSL/TSU (C602112-1) Diagram
#
Description
Price
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
2
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
2
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
4
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
4
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
6
CLIP-TRACK,LNG GUIDE
5251274
Unavailable
6
CLIP-TRACK, FLAT
5251273
Unavailable
6
TRACK, 144 X 1.35, COBRA "NORTH EDITION ONLY"
5414013
$927.99
6
TRACK, 144 X 1.0, ENERGY
5414190
$1,190.99
7
WASHER, SPRING
7556490
$4.79
7
WASHER, SPRING
7556490
$4.79
8
SPACER, IDLER
5436496
$6.39
8
SPACER, IDLER
5436496
$6.39
9
SPACER-IDLER
5432535
$11.99
9
SPACER-IDLER
5432535
$11.99
10
BUSHING
7555918
$1.59
10
BUSHING
7555918
$1.59
11
BEARING [1 PER WHEEL]
3514384
$19.84
11
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
11
ASM., WHEEL, BLACK
1590499-070
$57.13
12
SPACER-IDLER, CENTER
5333283
$19.99
13
SHAFT, IDLER
5137224
$28.32
14
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$19.99
15
SHAFT, CROSS
5137418
$32.37
16
ARM, REAR PIVOT, BLACK
1544229-329
$52.60
17
FITTING-LUBRICATION 1/4-28
7080424
$4.79
18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
SHAFT-17.450X214.77
5137312
$33.87
20
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
20
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
21
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$33.87
22
SPACER-SHOCK CENTERING,MET
5336325
$13.75
22
SPACER-SHOCK CENTERING,MET
5336325
$13.75
23
WSHR-.719X1.250X.065-Y
7556210
$3.99
