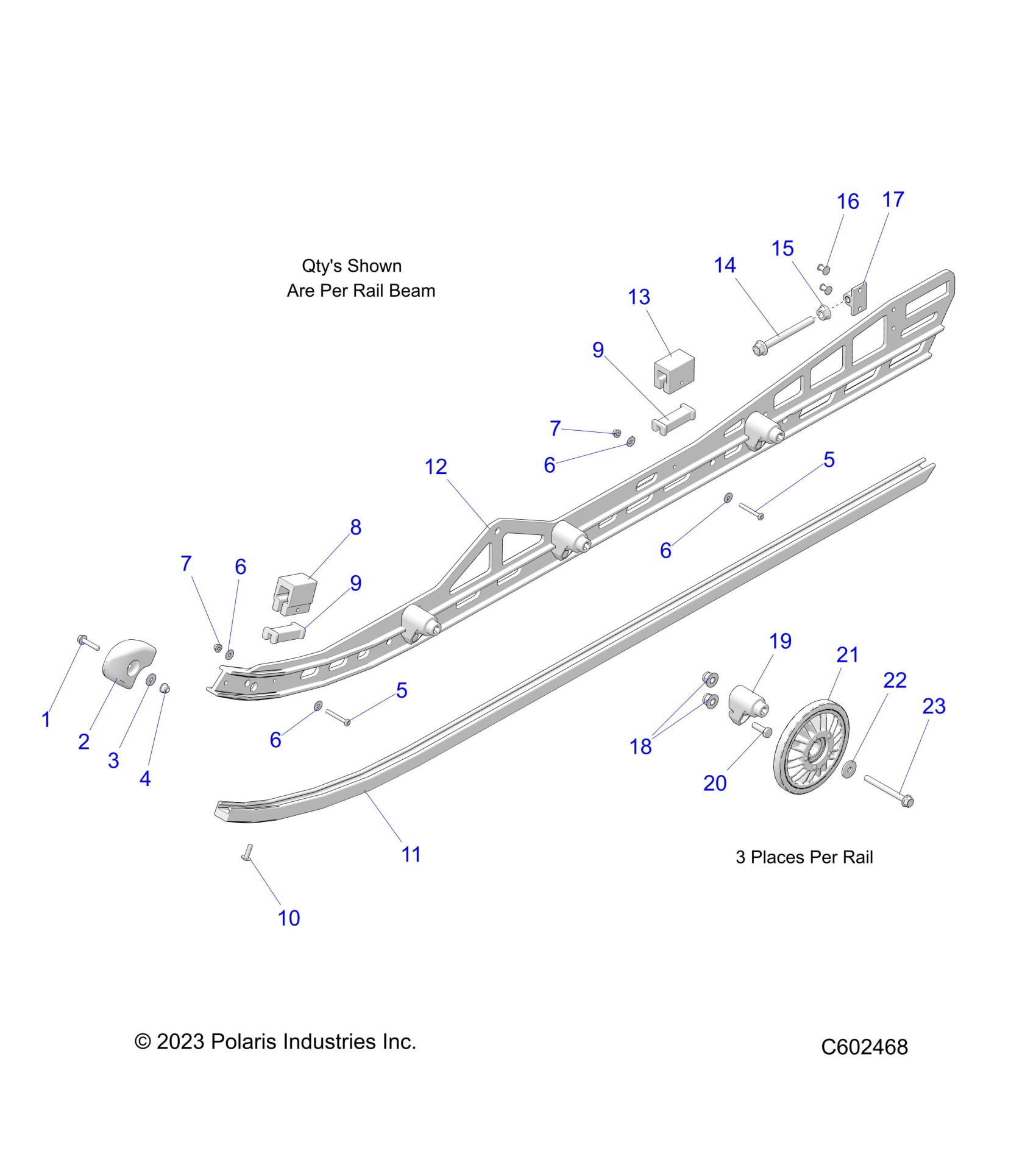

Polaris 550 VOYAGEUR LXT ES/NORTH EDITION (R02) - S25CED5TSL/TSU SUSPENSION, RAIL, LH/RH - S25CED5TSL/TSU (C602468) Diagram

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

CAP, RAIL TIP

5438374

$20.22

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

BUMPER, JOUNCE, REAR

5521498

$8.89

LINER-BUMPER

5432946

$9.70

LINER-BUMPER

5432946

$9.70

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

HI-FAX,.45/74",SERVICE,NAT

5521633-309

$40.46

ASM., RAIL, BSC COIL OVER, 144, LH [INCL. 1-9,13,16,17]

1542951

$579.99

ASM., RAIL, BSC COIL OVER, 144, RH [INCL. 1-9,13,16,17]

1542952

$579.99

BUMPER

5521812

$7.99

SCR-HXFL-M10X1.5X100 8.8 ZOD

7519167

$11.99

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

RIVET

7621501

$2.39

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BLOCK, WHEEL MOUNT

5631446

$24.27

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$3.19

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

ASM-WHEEL SPOKED 5.62

1590632

$38.39

WASHER-SPRING CON 5/16X.118ZOD

7556489

$1.59

SCR-HXFL M8X1.25X80 8.8 ZOD

7519217

$1.59
